LED Deck Light Steaming Light Combo Masthead Fixture
LED Deck Light Steaming Light Combo Masthead Fixture
$ 129.00 USD

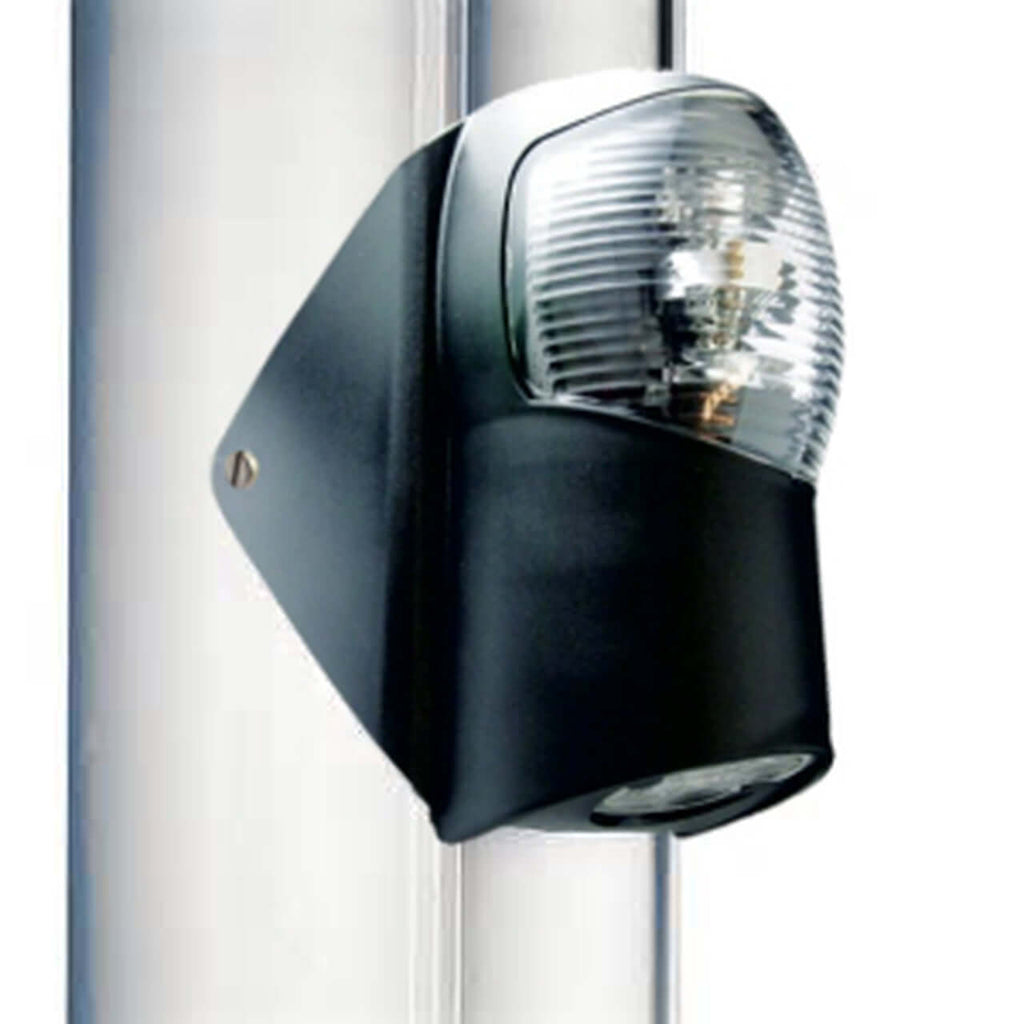

LED Deck Light Steaming Light Combo Masthead Fixture

You won't be disappointed with this light. Don't let its low price fool you.  It is by far our most popular navigation light fixture, and this 3NM LED Combination Masthead/Deck Light is certified to meet USCG/COLREG/CE & ABYC A16 requirements for vessels up to 20M. This lamp combines the mid-mast mounted masthead 3NM LED steaming light and a powerful LED fore-deck light in one attractive and robust housing.

It has all the features that you have come to expect from our Navigation Fixtures, including a true constant-current topology (10-33VDC input), IP67 waterproof sealed housing, marinized construction, and a super bright 4W LED deck light. The light uses our 225° 2W sealed LED steaming light module, coupled with a high-output 4W LED deck light in a robust and UV-stabilized black Nylon66 housing.

This lamp is designed to be mast-mounted to a wide variety of mast profiles using the flexible mounting “wings” which envelop the mast. Installs simply with two screws or rivets. This is a 3-wire lamp, with a common ground and 2 power wires for individual switching of the masthead (steaming light), and the deck light. Includes approx. 11″ of tinned marine copper cable for connection to your circuit.


  • 10-33VDC input
  • 0.40 Amps at 12VDC
  • 5.6″ High x 3″ Wide (7.7″ incl. wings) x 2.4″ Deep
  • 6000° White LED light
  • USCG/COLREG/CE ABYC A-16 Certified
  • EN and CE tested and certified against RF interference
  • IP67 Ingress Protection (fully waterproof)
  • For sailing vessels up to 20M (65 ft)
  • Fits a wide variety of mast profiles
  • The bright 4W LED deck light is equivalent to 35W of incandescent light
