MarineBeam

LED Fluorescent Tube Replacements

LED Fluorescent Tube Replacements

Regular price $ 32.00 USD
Regular price Sale price $ 32.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color

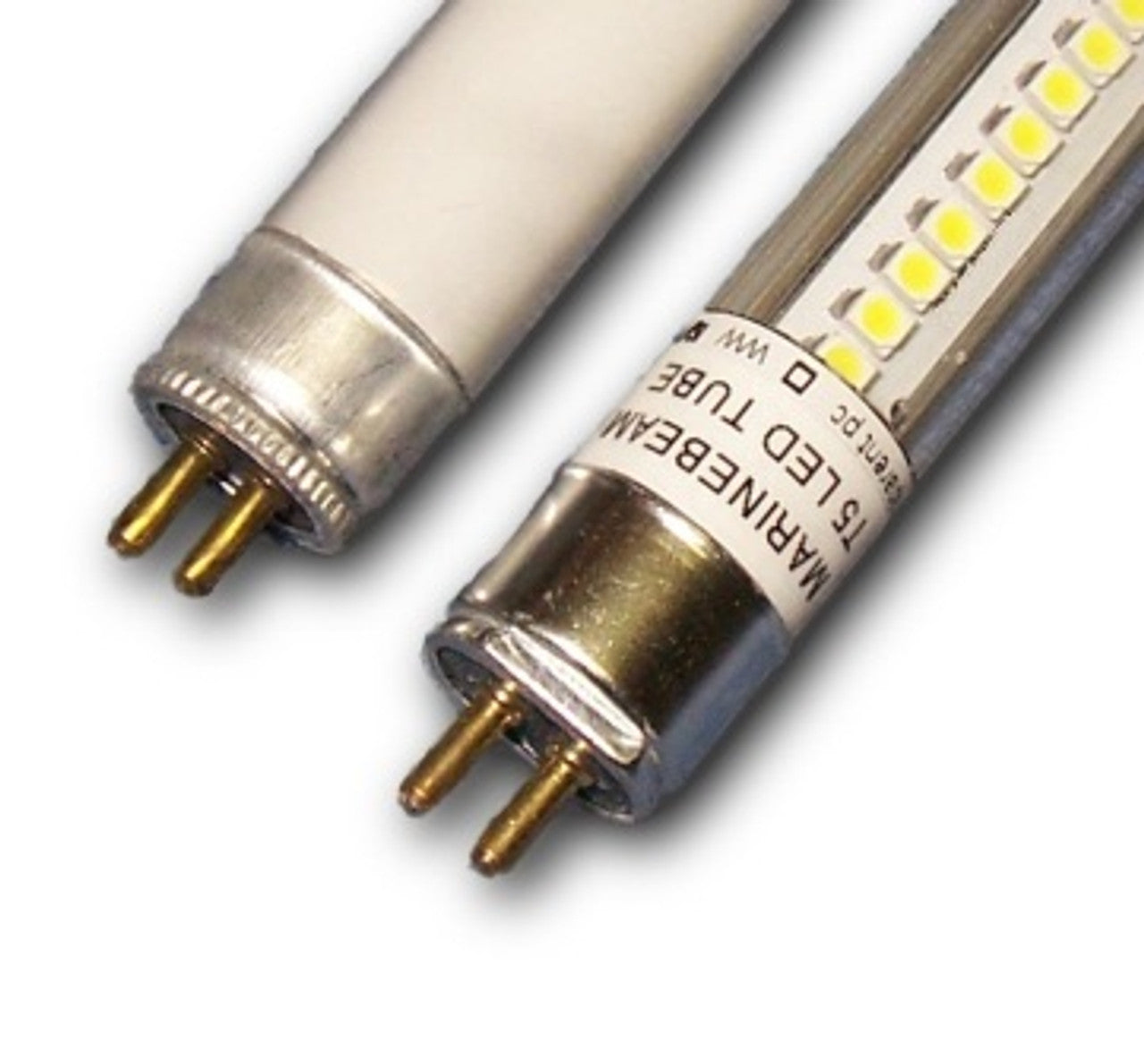

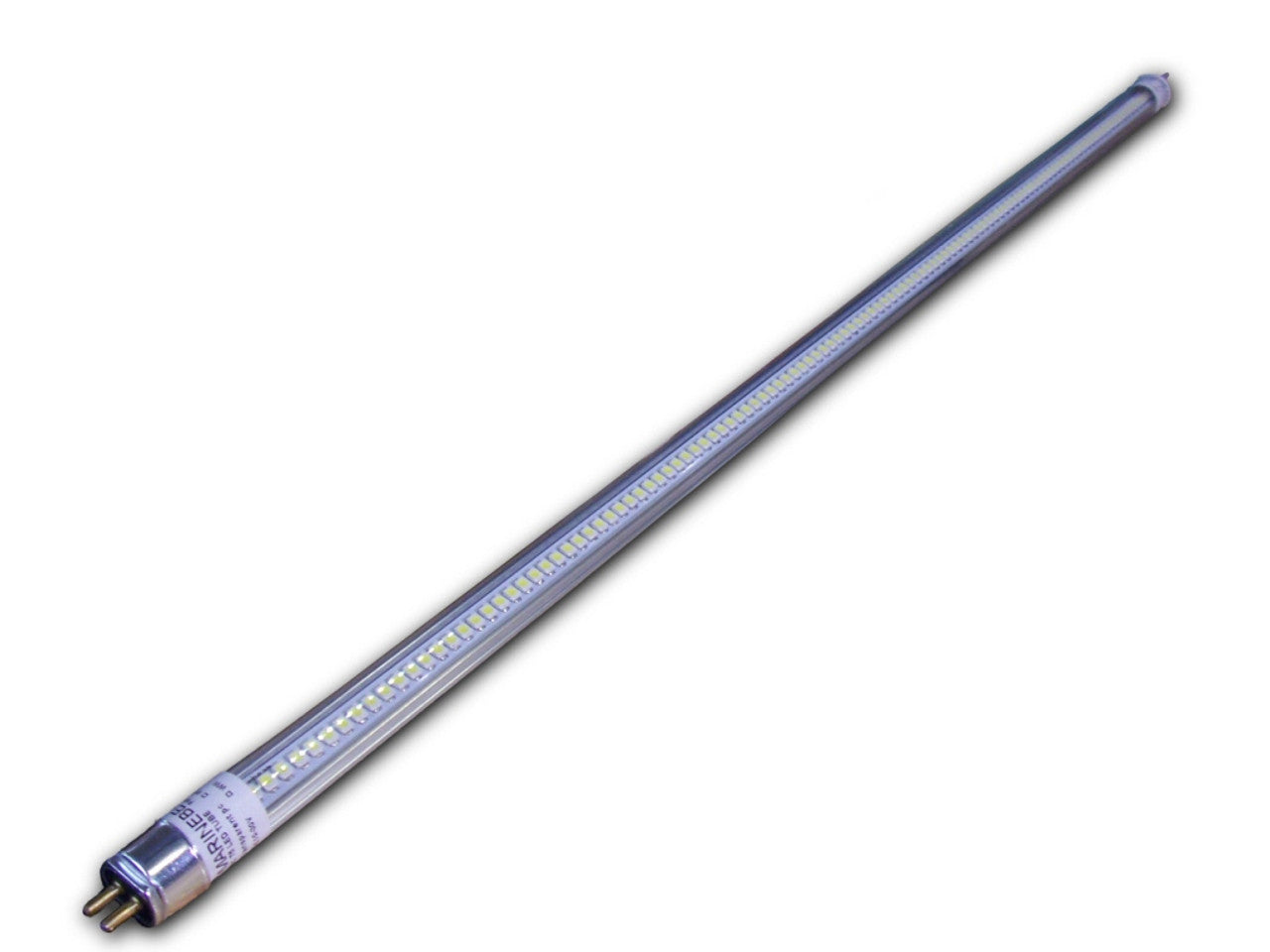

LED replacements for 9″,12″, 18″ and 21″ florescent tubes!

Our new LED clusters come mounted on their own aluminum heat-transfer enclosed in a polycarbonate lens. We offer them in natural-looking, “warm-white” or the super-bright “cool-white” which looks more like a florescent. These bulbs feature our Constant-Current Chipset so work on either 12V or 24V (10-30Volt range) and fit into your existing fixtures.  However they do require a slight modification to by-pass the existing ballast. It is a simple modification requiring no more than some wire cutters and a couple of butt connectors.

Cool White is fluorescent white (6150K), Warm White is incandescent white (2950K).  Red preserves your night vision.

These are not for 120VAC home use.

CONVERTING FLUORESCENT TO LED

Specifications

9″

  • Voltage: 10-30VDC Constant Current
  • Wattage: 3W
  • Amperage (12V): 0.27 Amp
  • Luminous Flux: 410 Lumens NW
  • Beam Angle: 120°
  • Dimensions: 22.5mm x 8.5mm

12″

  • Voltage: 10-30VDC
  • Wattage: 4.5W
  • Amperage (12V): 0.35 Amp
  • Luminous Flux: 560 Lumens NW; 325 Lumens WW
  • Beam Angle: 120°
  • Dimensions: 300mm x 8.5mm

18″

  • Voltage: 10-30VDC
  • Wattage: 6W
  • Amperage (12V): ~0.5 Amp
  • Luminous Flux: 630 Lm (NW)/ 375 Lm (WW)
  • Beam Angle: 120°
  • Dimensions: 17.75″ (451mm) x 32mm

21″

  • Voltage: 10-30VDC
  • Wattage: 6W
  • Amperage (12V): 0.5 Amp
  • Luminous Flux: 655 Lumens (NW)
  • Beam Angle: 120°
  • Dimensions: 531mm (21″)

2 Year Warranty

 Instructions



Converting Fluorescent Fixtures to LED
