Universal Matrix Red/White

This 15 LED array, designed to fit in 5” or 6” dome lights, features two modes from the same bulb! It can function as either a Red bulb, for preserving night vision, or with a quick flick of your existing switch, it can morph into a high-output Warm White bulb.

When initially switched on, its output comes from the three center RED LEDs. This provides a nice soft red output that is more than enough light to see really well down below at night.

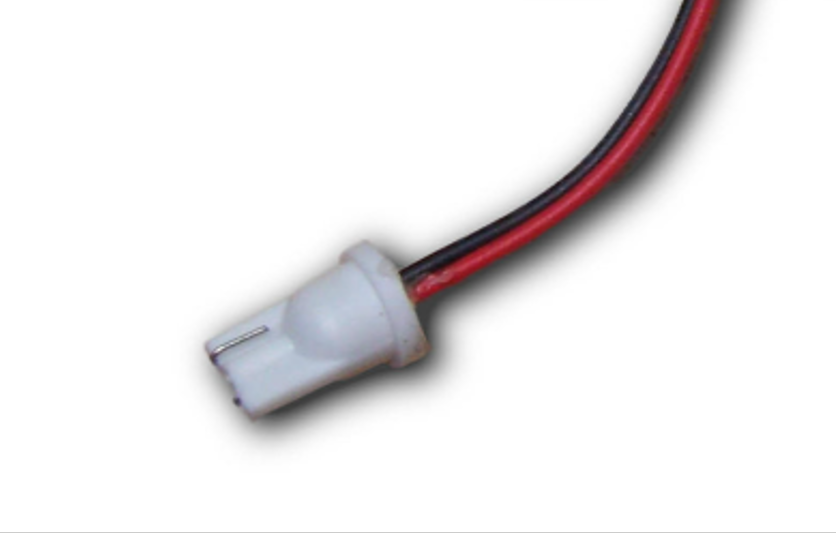

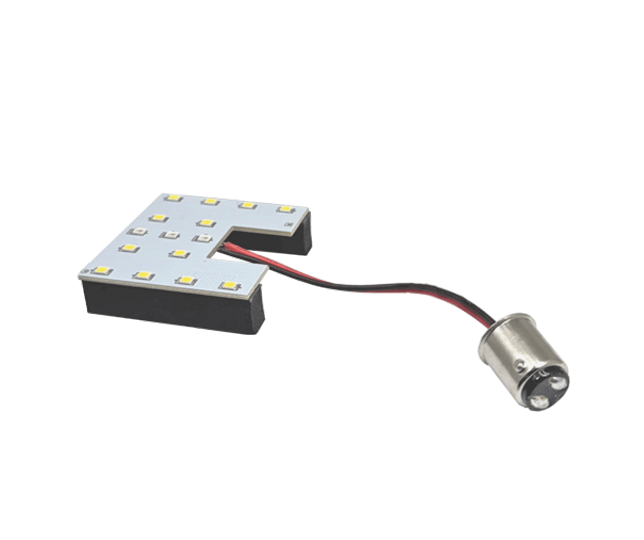

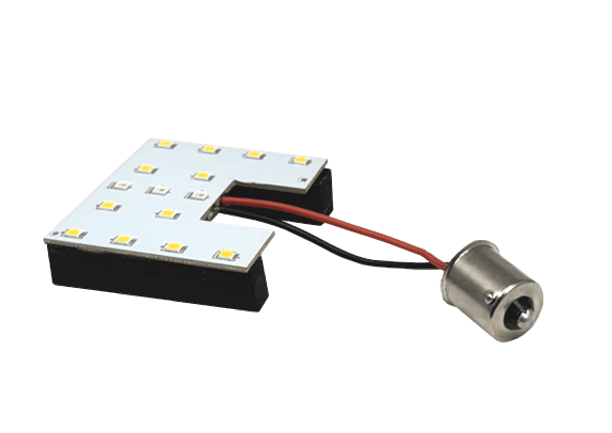

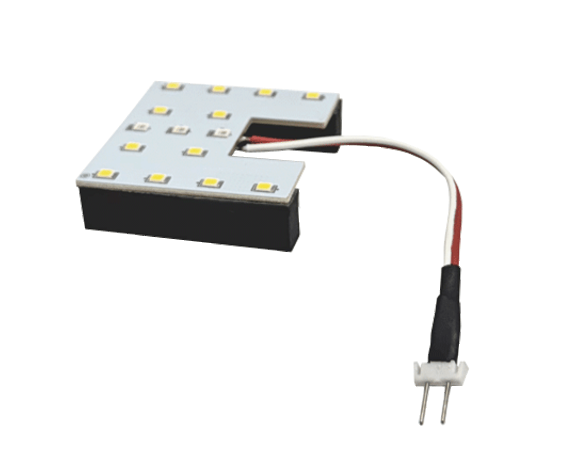

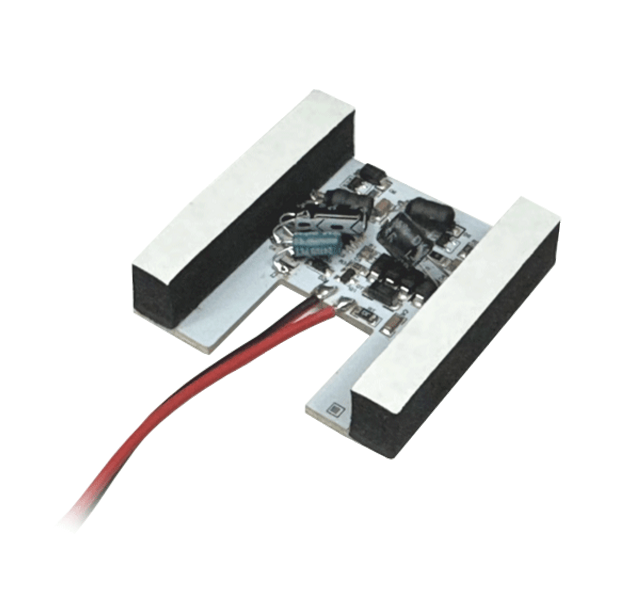

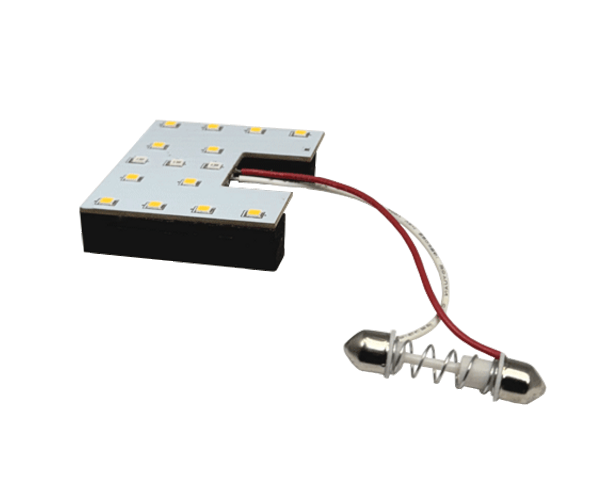

It is your choice whether you want Red or Warm White. The bulb senses each toggle of the switch and latches into the Warm White mode if the switch is toggled off-on within 3 seconds. To revert to Red mode is a simple off and back on with a 3 second delay. It comes with your choice of G4, Single or Double Contact 15mm Bayonet and Wedge bases which can be coupled to the array by a short “pig-tail”. Peel & Stick foam strips are mounted on the back to hold the array in position & the board has a cut-away to accommodate the socket for a perfect fit. This LED will outperform your existing light at 1/8th the power.

Specifications

• Voltage: 10-30VDC Constant Current
• Wattage: 0.6W (Red); 2.5W (Warm White)
• Amperage (12V): 0.05 Amp (Red); 0.21 Amp (Warm White)
• Luminous Flux: 145 Lumens
• Beam Angle: 120°
• Dimensions: 57mm x 57mm x 8.5mm (2-1/4 x 2-1/4 x 3/8″)

2 Year Warranty
