MarineBeam
Universal Matrix Red/White
Universal Matrix Red/White
SKU:UN-DOME-15-RWW
Marine LED replacement lighting. Match the exact base or pin layout, system voltage, light color, and available lens clearance before ordering.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

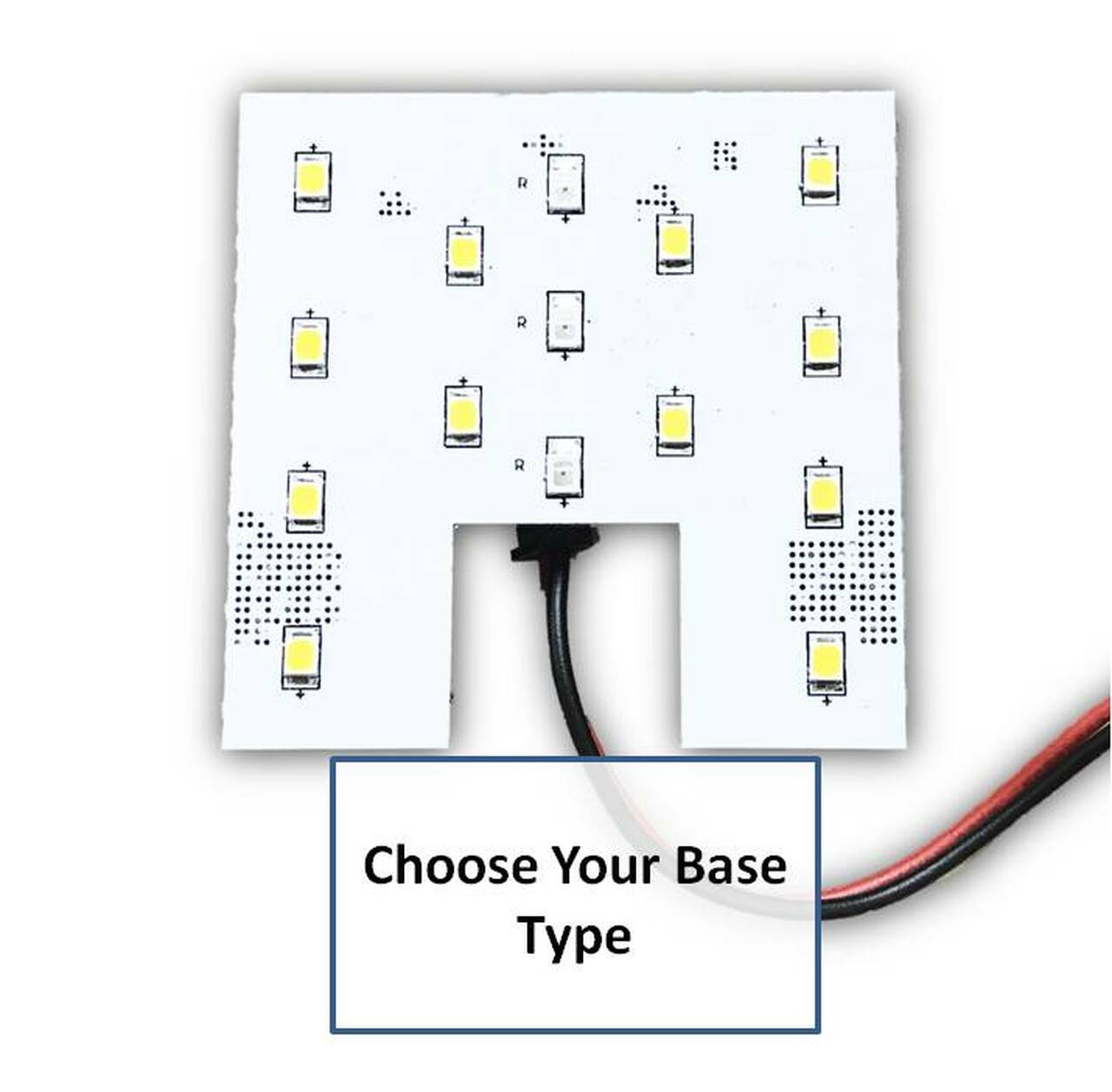

This 15 LED array, designed to fit in 5” or 6” dome lights, features two modes from the same bulb! It can function as either a Red bulb, for preserving night vision, or with a quick flick of your existing switch, it can morph into a high-output Warm White bulb.
When initially switched on, its output comes from the three center RED LEDs. This provides a nice soft red output that is more than enough light to see really well down below at night.

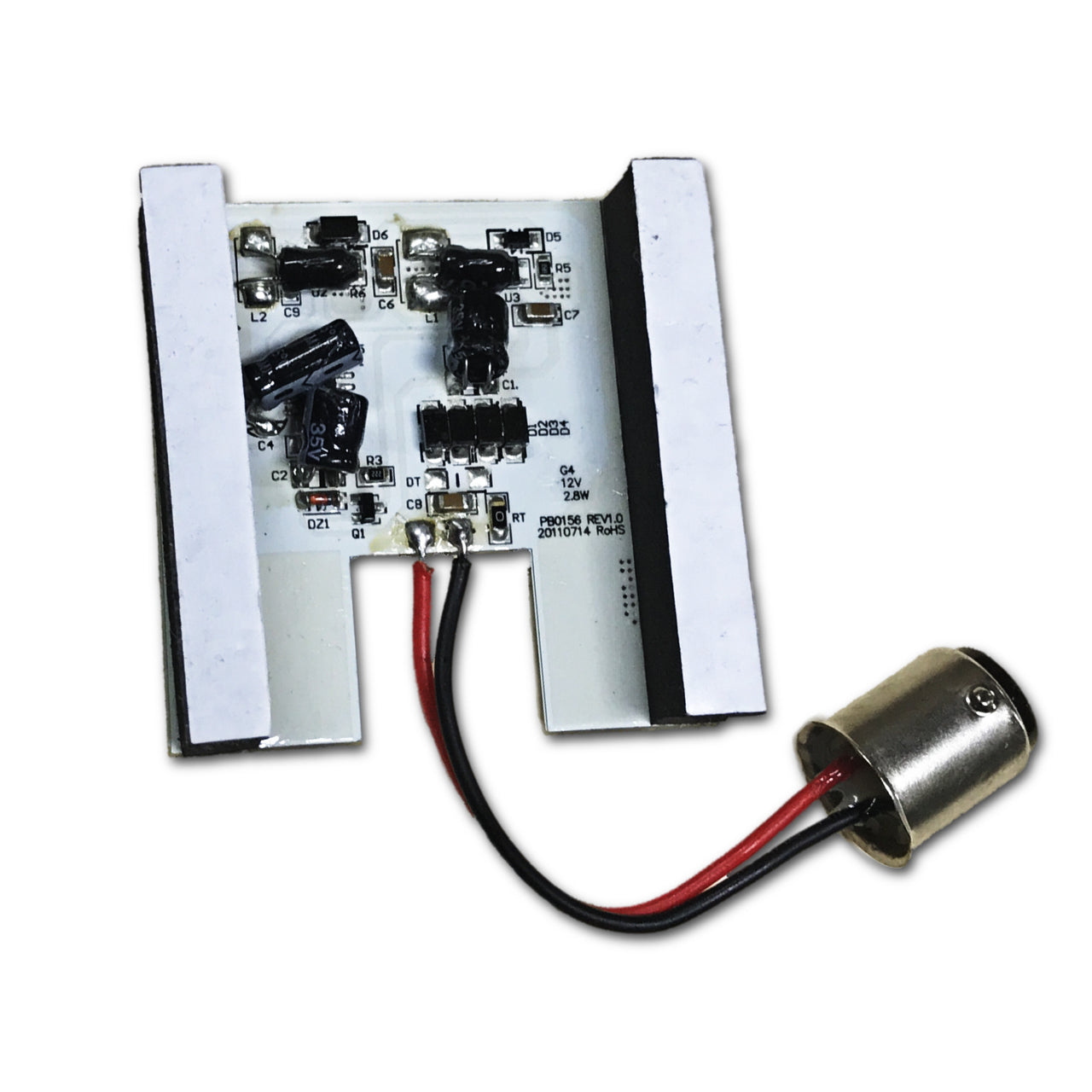

It is your choice whether you want Red or Warm White. The bulb senses each toggle of the switch and latches into the Warm White mode if the switch is toggled off-on within 3 seconds. To revert to Red mode is a simple off and back on with a 3 second delay. It comes with your choice of G4, Single or Double Contact 15mm Bayonet and Wedge bases which can be coupled to the array by a short “pig-tail”. Peel & Stick foam strips are mounted on the back to hold the array in position & the board has a cut-away to accommodate the socket for a perfect fit. This LED will outperform your existing light at 1/8th the power.
Specifications
- Voltage: 10-30VDC Constant Current
- Wattage: 0.6W (Red); 2.5W (Warm White)
- Amperage (12V): 0.05 Amp (Red); 0.21 Amp (Warm White)
- Luminous Flux: 145 Lumens
- Beam Angle: 120°
- Dimensions: 57mm x 57mm x 8.5mm (2-1/4 x 2-1/4 x 3/8″)
2 Year Warranty
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Base and pins: match the socket, contact count, pin position, orientation, and spacing to the lamp being replaced.
- Electrical fit: verify the DC voltage range, polarity requirements, and compatibility with existing dimmers.
- Physical clearance: compare the full bulb diameter, height, pin length, lens, and reflector clearance.
- Light output: choose the intended color, temperature, beam pattern, and navigation or cabin-light use.
Product specifications and details
This 15 LED array, designed to fit in 5” or 6” dome lights, features two modes from the same bulb! It can function as either a Red bulb, for preserving night vision, or with a quick flick of your existing switch, it can morph into a high-output Warm White bulb.
When initially switched on, its output comes from the three center RED LEDs. This provides a nice soft red output that is more than enough light to see really well down below at night.
It is your choice whether you want Red or Warm White. The bulb senses each toggle of the switch and latches into the Warm White mode if the switch is toggled off-on within 3 seconds. To revert to Red mode is a simple off and back on with a 3 second delay. It comes with your choice of G4, Single or Double Contact 15mm Bayonet and Wedge bases which can be coupled to the array by a short “pig-tail”. Peel & Stick foam strips are mounted on the back to hold the array in position & the board has a cut-away to accommodate the socket for a perfect fit. This LED will outperform your existing light at 1/8th the power.
Specifications
- Voltage: 10-30VDC Constant Current
- Wattage: 0.6W (Red); 2.5W (Warm White)
- Amperage (12V): 0.05 Amp (Red); 0.21 Amp (Warm White)
- Luminous Flux: 145 Lumens
- Beam Angle: 120°
- Dimensions: 57mm x 57mm x 8.5mm (2-1/4 x 2-1/4 x 3/8″)
2 Year Warranty
