Nodus Factory

Pad-SX® SX 45- Padeye to stick adjustable - Nodus Factory

Pad-SX® SX 45- Padeye to stick adjustable - Nodus Factory

Regular price $ 23.14 USD
Regular price Sale price $ 23.14 USD
Sale Sold out
Shipping calculated at checkout.

Pad-SX®- SX 45- Nodus Factory

Textile pad eye round to stick on, Nodus-Padeye® SX is the only pad eye with adjustable textile Dyneema® loop.

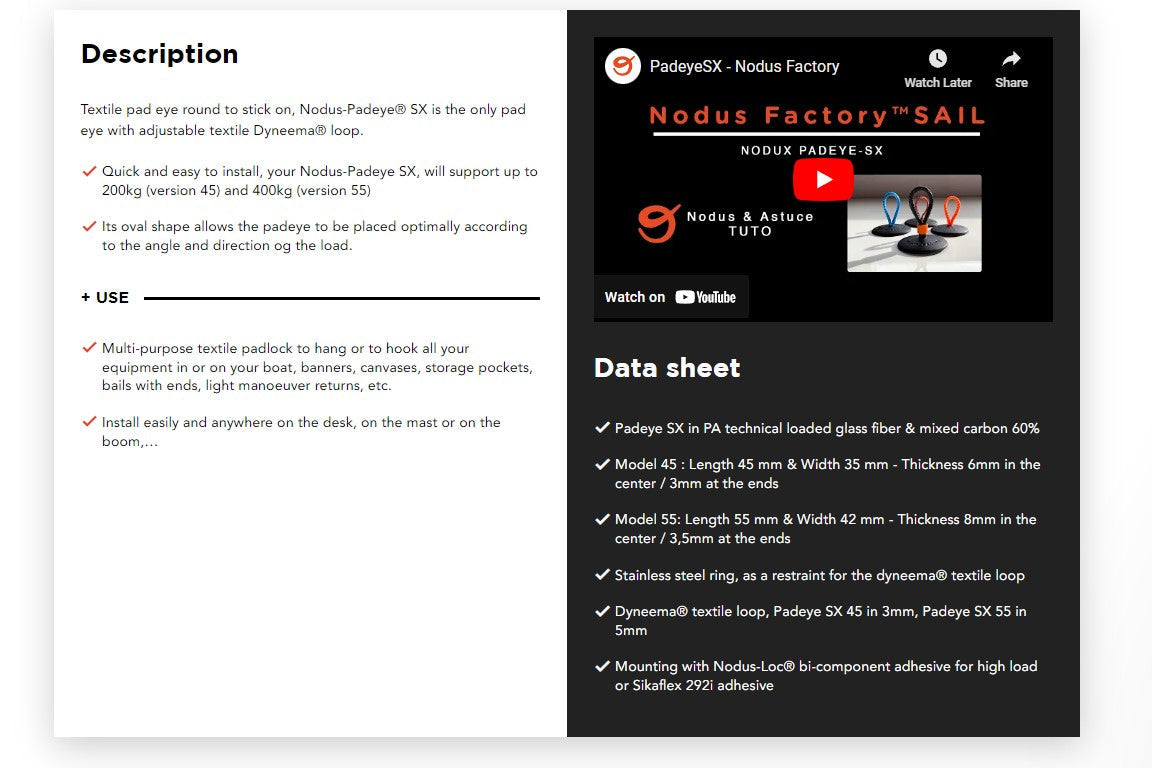

Description

  • Quick and easy to install, your Nodus-Padeye SX, will support up to 200kg (version 45)
  • Its oval shape allows the padeye to be placed optimally according to the angle and direction of the load.

+ USE

  • Multi-purpose textile padlock to hang or to hook all your equipment in or on your boat, banners, canvases, storage pockets, bails with ends, light maneuver returns, etc.
  • Install easily and anywhere on the desk, on the mast or on the boom,…



Data sheet

  • Padeye SX in PA technical loaded glass fiber & mixed carbon 60%

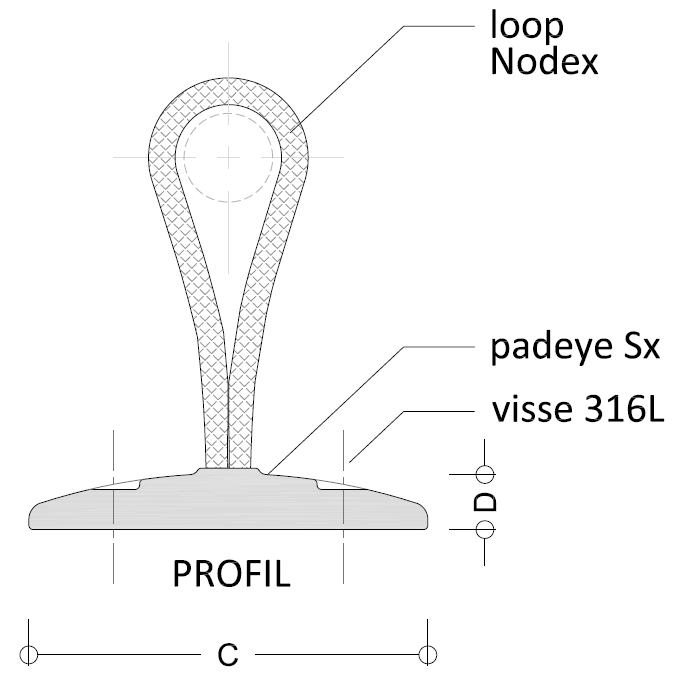

  • Model 45 : Length 45 mm & Width 35 mm - Thickness 6mm in the center / 3mm at the ends
  • Stainless steel ring, as a restraint for the dyneema® textile loop
  • Dyneema® textile loop, Padeye SX 45 in 3mm
  • Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive



Optional: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads

PA / Dyneema® / fibrous bioplastic polyamide (recyclable)

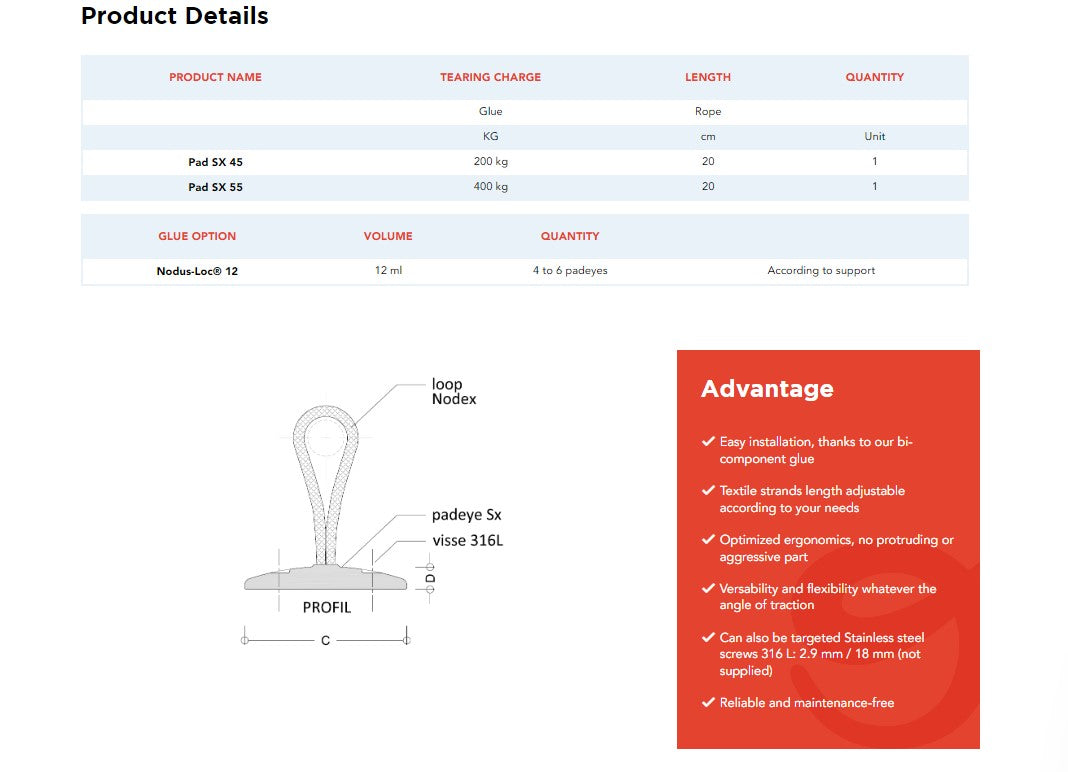

PRODUCT NAME TEARING CHARGE LENGTH QUANTITY
Glue Rope
KG cm Unit
Pad SX 45 200 kg 20 1
Pad SX 55 400 kg 20 1



GLUE OPTION VOLUME QUANTITY
Nodus-Loc® 12 12 ml 4 to 6 padeyes According to support



View full details
