Pad-SX®- SX 45- Nodus Factory

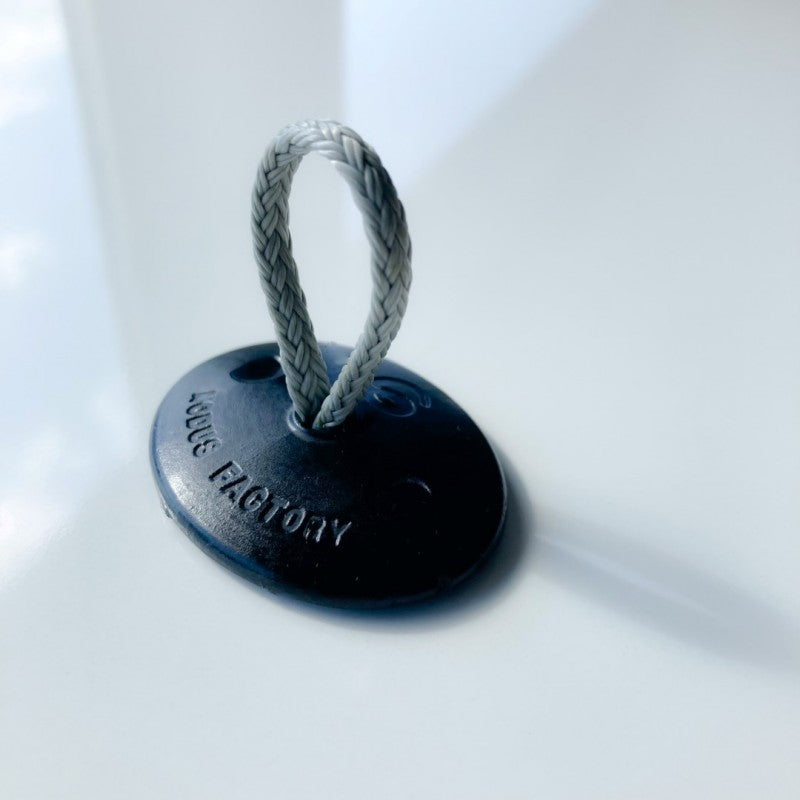

Textile pad eye round to stick on, Nodus-Padeye® SX is the only pad eye with adjustable textile Dyneema® loop.
Description
- Quick and easy to install, your Nodus-Padeye SX, will support up to 200kg (version 45)
- Its oval shape allows the padeye to be placed optimally according to the angle and direction of the load.
+ USE
- Multi-purpose textile padlock to hang or to hook all your equipment in or on your boat, banners, canvases, storage pockets, bails with ends, light maneuver returns, etc.
- Install easily and anywhere on the desk, on the mast or on the boom,…

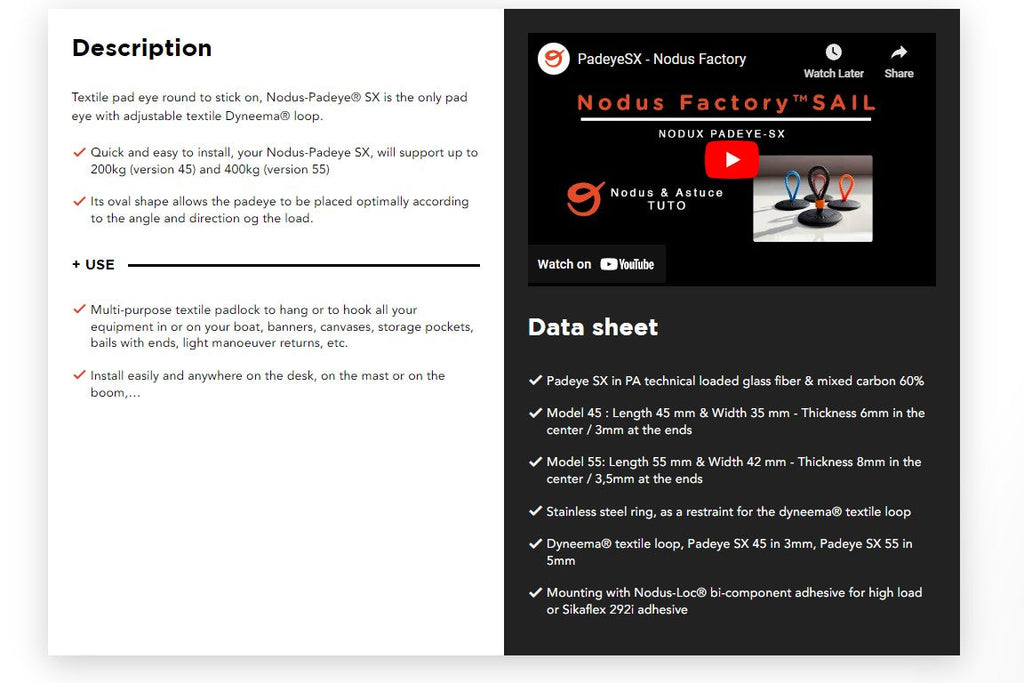

Data sheet

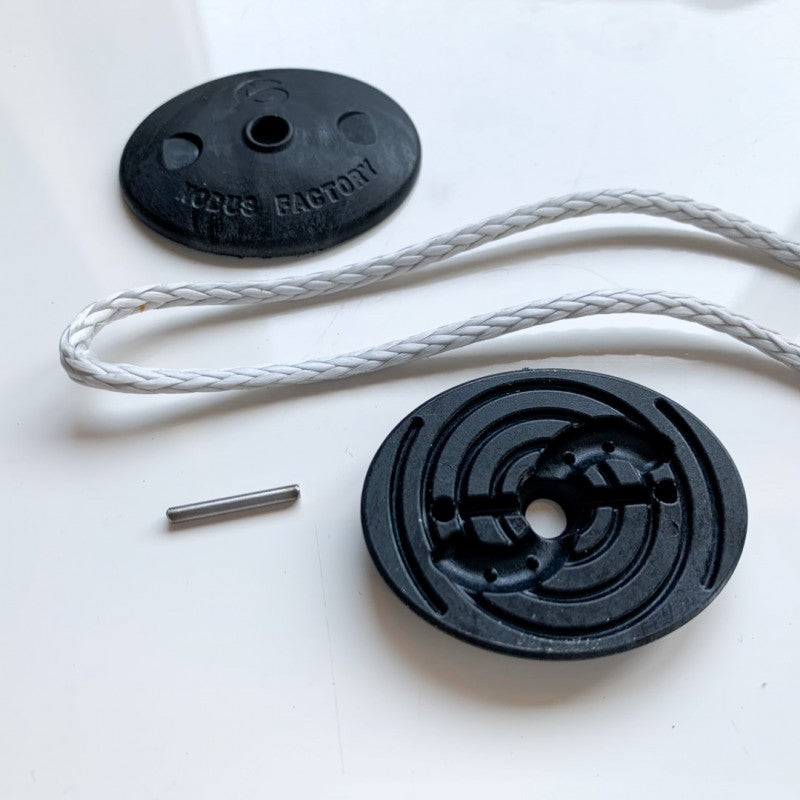

- Padeye SX in PA technical loaded glass fiber & mixed carbon 60%

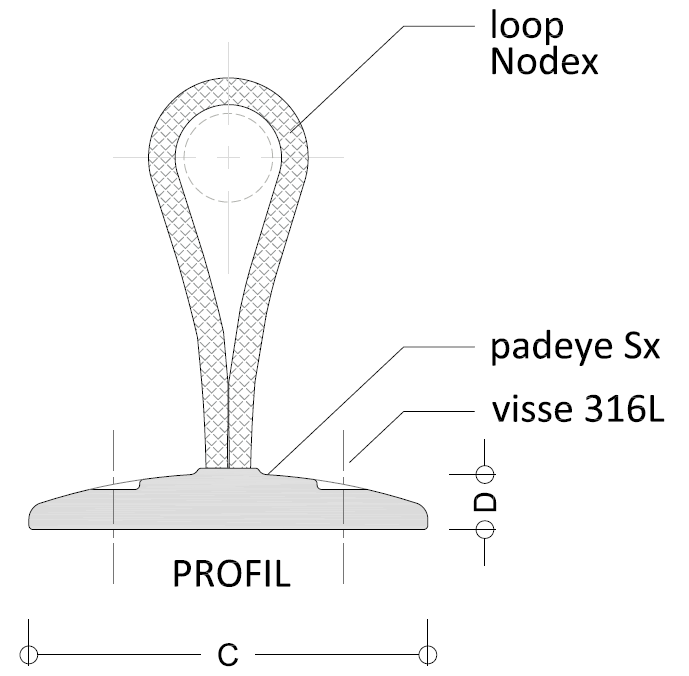

- Model 45 : Length 45 mm & Width 35 mm - Thickness 6mm in the center / 3mm at the ends
- Stainless steel ring, as a restraint for the dyneema® textile loop
- Dyneema® textile loop, Padeye SX 45 in 3mm
- Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive
Optional: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads
PA / Dyneema® / fibrous bioplastic polyamide (recyclable)

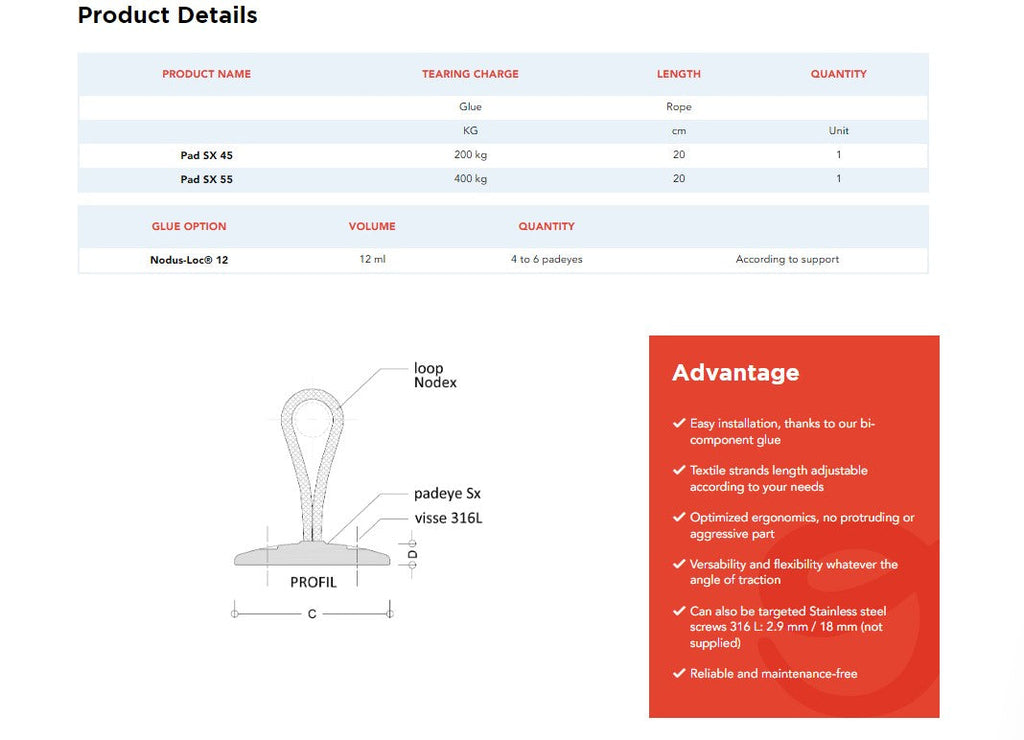

| PRODUCT NAME | TEARING CHARGE | LENGTH | QUANTITY |
|---|---|---|---|
| Glue | Rope | ||
| KG | cm | Unit | |
| Pad SX 45 | 200 kg | 20 | 1 |
| Pad SX 55 | 400 kg | 20 | 1 |
| GLUE OPTION | VOLUME | QUANTITY | |
|---|---|---|---|
| Nodus-Loc® 12 | 12 ml | 4 to 6 padeyes | According to support |
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check the rigging match before ordering
- Mounting surface: confirm the substrate, preparation, adhesive or fasteners, and required cure procedure.
- Installed geometry: align the fitting and textile loop with the expected direction and angle of load.
- Load basis: use the published value for the exact size and installation; do not treat breaking load as working load.
- Inspection access: keep the bonded base, loop, stitching, and surrounding surface visible for routine checks.
