LiCell AH-Series

Portable lithium battery fire extinguishers for facilities and fleets

LiCell reports that its Aqueous Vermiculite Dispersion extinguishers have been independently tested to extinguish lithium battery fires and impede thermal runaway. Shop six portable formats from 9 L to 500 ml.

Shop the AH-Series Request a quote
  • Six models9 L to 500 ml
  • 13–180 secondspublished discharge times
  • Wall mountincluded with every model
LiCell AH-Series portable fire extinguishers in six formats
Six portable AH-Series models shown together.

Shop the AH-Series

Compare all six LiCell portable models

See the exact dimensions, gross weight, discharge time, current price and availability for every model.

Discharge range
2.0 m (6.6 ft)
Operating temperature
+5°C to +60°C (+40°F to +140°F)
Included mount
Standard wall mount

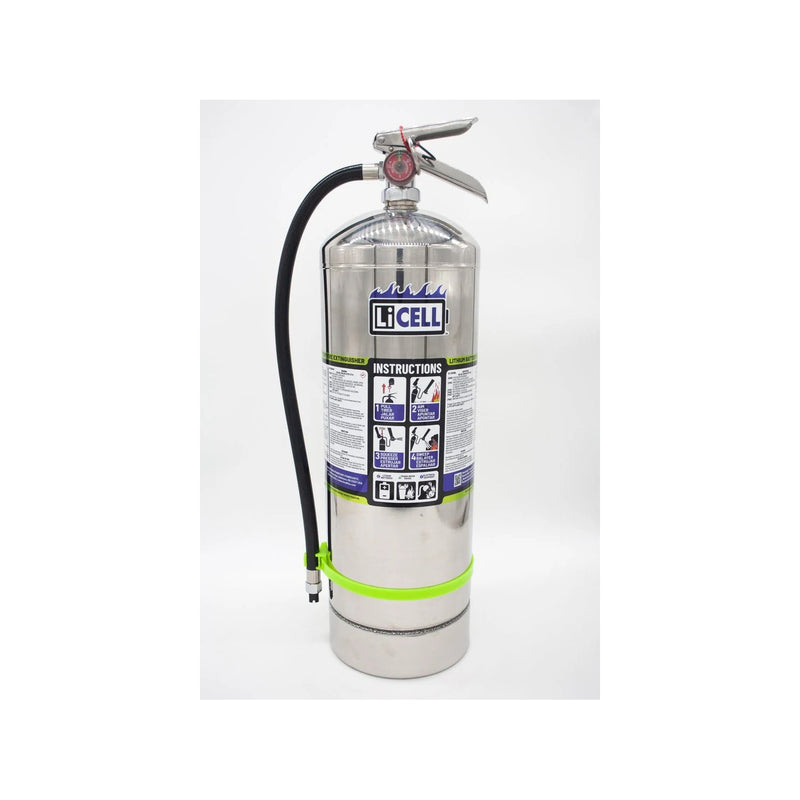

LiCell AH009 9L AVD lithium battery fire extinguisher

LiCell AH009

9 L (2.38 gal)portable Aqueous Vermiculite Dispersion extinguisher

Discharge time
180 seconds
Size (height × width × cylinder diameter)
630 × 190 × 179 mm24.8 × 7.5 × 7.1 in
Gross weight
15.29 kg (33.7 lb)

$ 799.99 USD

Available to order

Shop LiCell AH009

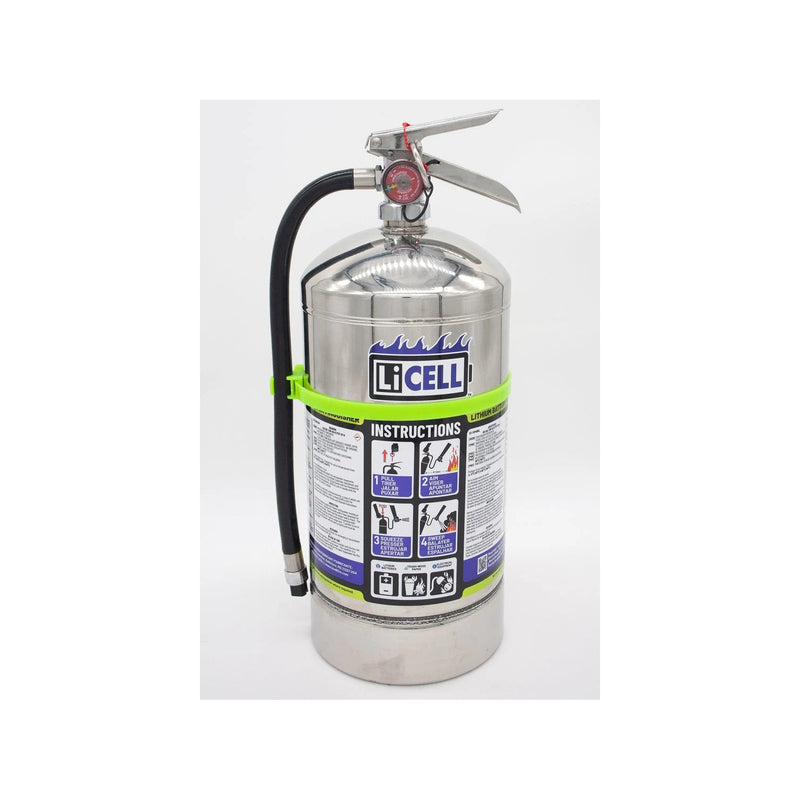

LiCell AH006 6L AVD lithium battery fire extinguisher

LiCell AH006

6 L (1.59 gal)portable Aqueous Vermiculite Dispersion extinguisher

Discharge time
120 seconds
Size (height × width × cylinder diameter)
475 × 190 × 179 mm18.7 × 7.5 × 7.1 in
Gross weight
10.89 kg (24.0 lb)

$ 599.99 USD

Available to order

Shop LiCell AH006

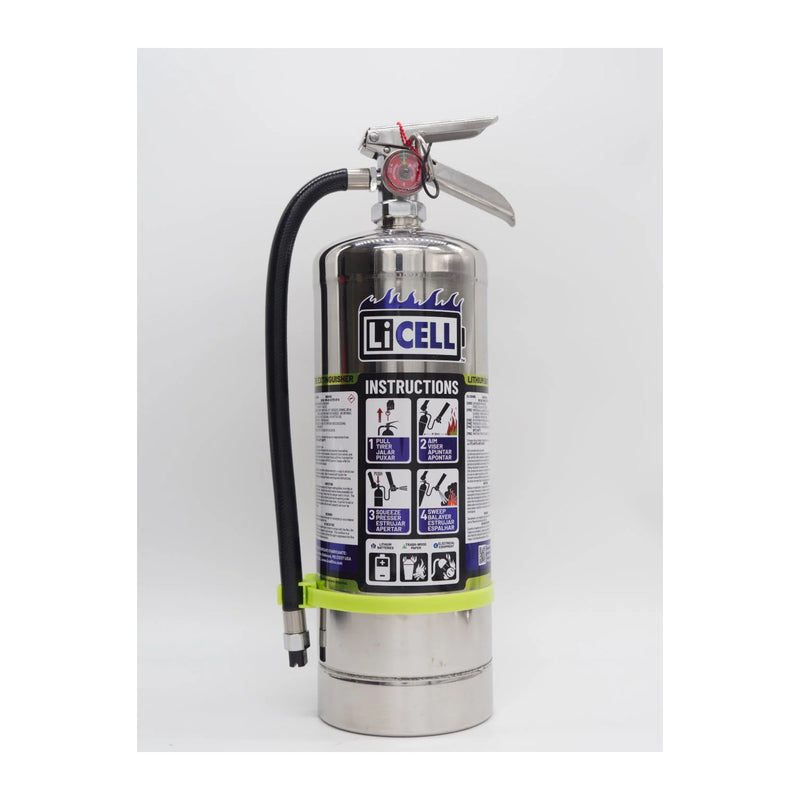

LiCell AH004 4L AVD lithium battery fire extinguisher

LiCell AH004

4 L (1.04 gal)portable Aqueous Vermiculite Dispersion extinguisher

Discharge time
90 seconds
Size (height × width × cylinder diameter)
475 × 190 × 140 mm18.7 × 7.5 × 5.5 in
Gross weight
6.9 kg (15.2 lb)

$ 469.99 USD

Available to order

Shop LiCell AH004

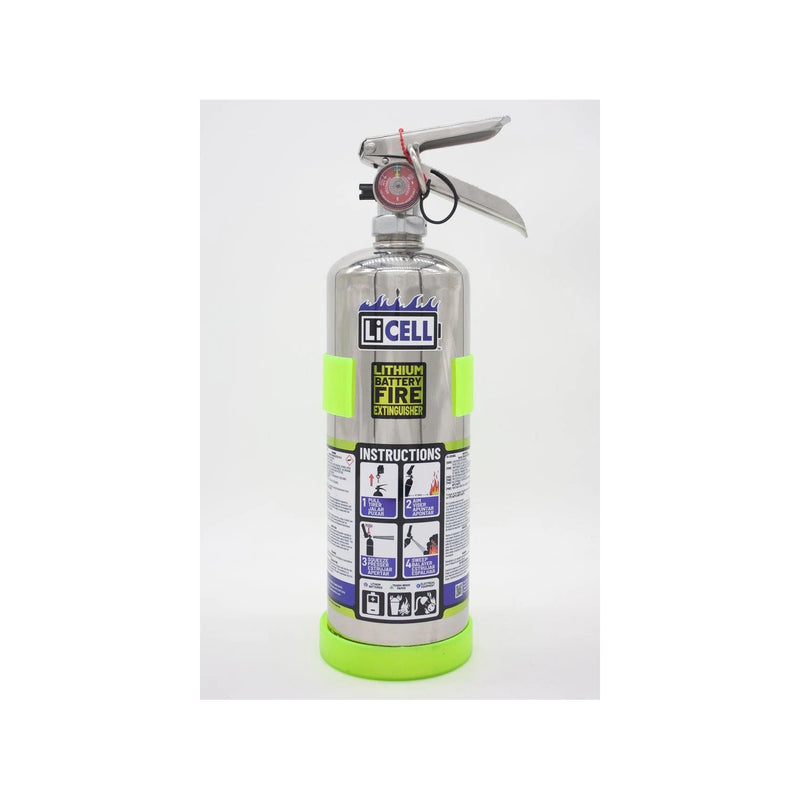

LiCell AH002 2L AVD lithium battery fire extinguisher

LiCell AH002

2 L (0.53 gal)portable Aqueous Vermiculite Dispersion extinguisher

Discharge time
50 seconds
Size (height × width × cylinder diameter)
410 × 155 × 110 mm16.1 × 6.1 × 4.3 in
Gross weight
3.95 kg (8.7 lb)

$ 249.99 USD

Available to order

Shop LiCell AH002

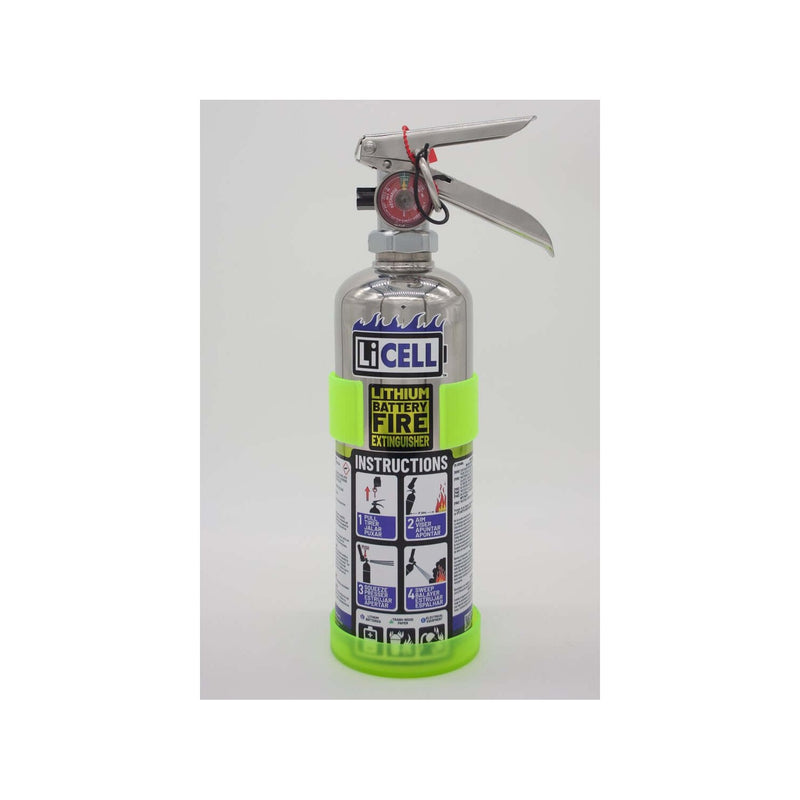

LiCell AH001 1L AVD lithium battery fire extinguisher

LiCell AH001

1 L (0.26 gal)portable Aqueous Vermiculite Dispersion extinguisher

Discharge time
25 seconds
Size (height × width × cylinder diameter)
340 × 145 × 89 mm13.4 × 5.7 × 3.5 in
Gross weight
2.45 kg (5.4 lb)

$ 169.99 USD

Available to order

Shop LiCell AH001

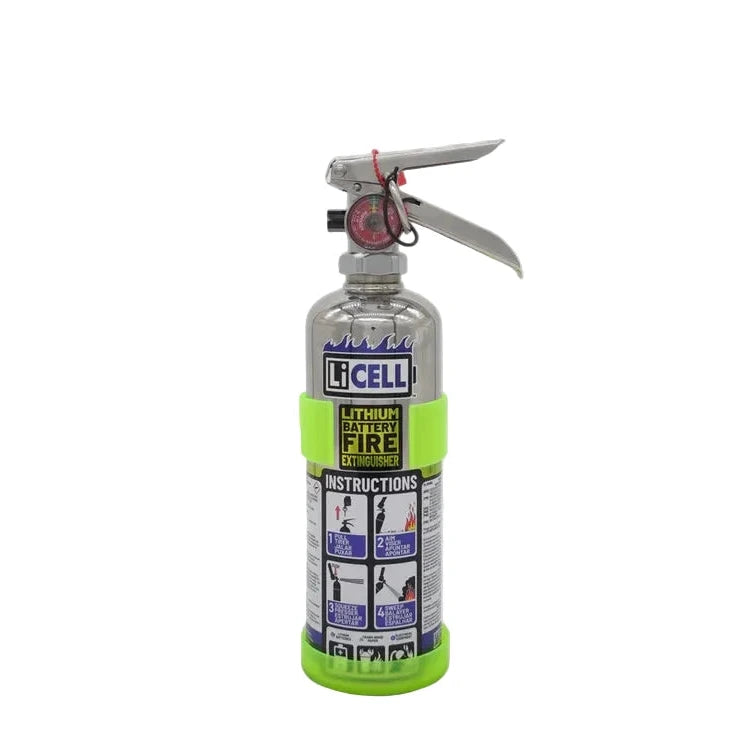

LiCell AH500 500ml AVD Lithium Battery Fire Extinguisher

LiCell AH500

500 ml (0.13 gal)portable Aqueous Vermiculite Dispersion extinguisher

Discharge time
13 seconds
Size (height × width × cylinder diameter)
292 × 140 × 70 mm11.5 × 5.5 × 2.75 in
Gross weight
1.46 kg (3.2 lb)

$ 109.99 USD

Available to order

Shop LiCell AH500

Why Aqueous Vermiculite Dispersion

Cooling plus a non-flammable oxygen barrier

LiCell's mineral-based water dispersion is applied as a mist. As the water absorbs heat, vermiculite platelets form a film over the fuel source.

Read LiCell's independent-testing summary.

  1. Cools the fire sourceWater in the agent absorbs heat as it evaporates.
  2. Forms a barrierVermiculite platelets create a non-flammable film between the fuel and oxygen.

LiCell quotes and product support

Get current pricing, documents and shipping help

Ask about current availability, volume quotes, dangerous-goods shipping, product documentation or optional mounting brackets.

Cruising Solutions does not determine the required model, quantity, placement or facility suitability. Those decisions require a qualified fire-protection assessment and confirmation from the relevant authority.

Manufacturer use note: LiCell says its portable extinguishers are for first response and are not suitable for large or deep-seated fires. Follow the manufacturer instructions and your site emergency procedures.

Read the current manufacturer AH-Series specification sheet
