MarineBeam
BAY15D Bi-Color Bow Light LED Bulb for Aqua Signal Series 41
BAY15D Bi-Color Bow Light LED Bulb for Aqua Signal Series 41
SKU:TW-1157-GP-BI
Marine LED navigation lighting. Confirm the light function, visibility sector, system voltage, and mounting geometry in the specifications below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

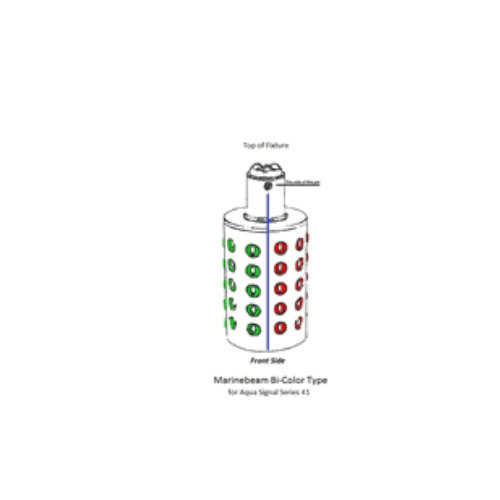

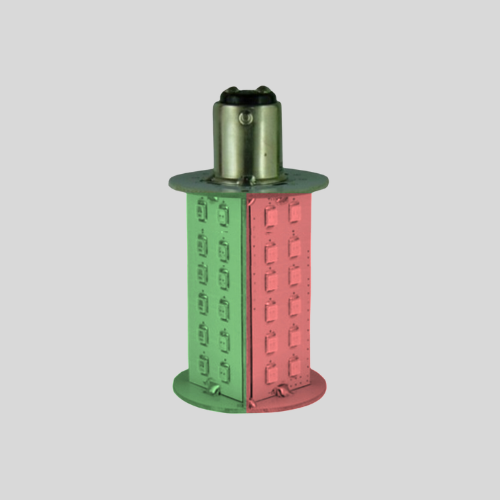

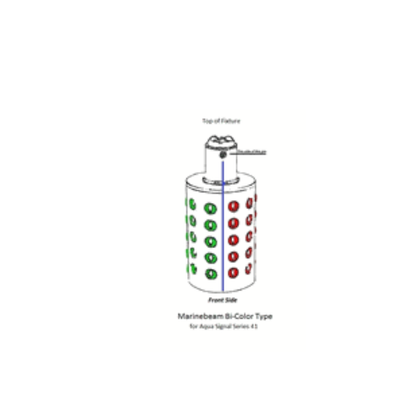

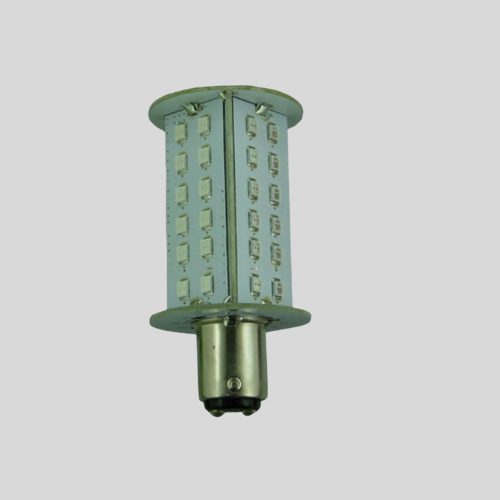

This dual voltage (12V or 24V) 24-LED bulb is designed specifically to replace the incandescent BAY15d type bayonet bulb in Aqua Signal Series 41 bi-color bow Navigation Lights, and is indexed to place the red LEDs behind the red lens and the with green LEDs behind the green lens, which produces brilliant illumination significantly surpassing your existing white light.
Visibility well exceeds 3 miles, and the power consumption is less than 0.45 amps @ 12V (0.22 amps @ 24V). Life expectancy is over 30,000 hrs. RoHS and CE certification. Special chipset to prevent VHF radio or GPS interference.
Upgrade your bi-color running light to our LED to have a brighter, more visible, longer lasting bulb, with more 80% less power.
Specifications
- For Aqua Signal Series 41 (bulb base facing up)
- Direct Replacement for Aqua Signal 90002, 9040000200, and 9040000300 25W bulbs
- Size:32mm x 68mm
- LED QTY: 24 pcs
- Power: 4W
- Amperage: 0.33 Amps
- Input Voltage: DC10-30V (12V and 24V)
- Exceeds 3nm Visibility
NOTE: Series 40 Bow Fixtures with camlock mounting and the socket connected through the bottom of the fixture (3503302000) have an opposite mount. Some customers have experienced reverse mounts do to incorrect fixture installation.
2 Year Warranty -- Satisfaction Guaranteed
Technical Specifications
| Base / socket | BAY15D |
|---|---|
| Voltage | 12 V / 24 V DC (multi-volt) |
| Input voltage | DC10-30V (12V and 24V) |
| Power | 4 W |
| Color | Bi-Color |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Function and sector: match the required anchor, steaming, stern, port/starboard, bi-color, or tri-color function.
- Required performance: confirm the certification and visibility distance required for your vessel; brightness alone does not establish compliance.
- Physical fit: compare the mounting footprint, fastener pattern, lens orientation, and available clearance.
- Electrical fit: verify DC voltage, wiring, polarity, switching, and any photocell or multi-mode behavior.
Product specifications and details
This dual voltage (12V or 24V) 24-LED bulb is designed specifically to replace the incandescent BAY15d type bayonet bulb in Aqua Signal Series 41 bi-color bow Navigation Lights, and is indexed to place the red LEDs behind the red lens and the with green LEDs behind the green lens, which produces brilliant illumination significantly surpassing your existing white light.
Visibility well exceeds 3 miles, and the power consumption is less than 0.45 amps @ 12V (0.22 amps @ 24V). Life expectancy is over 30,000 hrs. RoHS and CE certification. Special chipset to prevent VHF radio or GPS interference.
Upgrade your bi-color running light to our LED to have a brighter, more visible, longer lasting bulb, with more 80% less power.
Specifications
- For Aqua Signal Series 41 (bulb base facing up)
- Direct Replacement for Aqua Signal 90002, 9040000200, and 9040000300 25W bulbs
- Size:32mm x 68mm
- LED QTY: 24 pcs
- Power: 4W
- Amperage: 0.33 Amps
- Input Voltage: DC10-30V (12V and 24V)
- Exceeds 3nm Visibility
NOTE: Series 40 Bow Fixtures with camlock mounting and the socket connected through the bottom of the fixture (3503302000) have an opposite mount. Some customers have experienced reverse mounts do to incorrect fixture installation.
2 Year Warranty -- Satisfaction Guaranteed
