Check the rigging match before ordering

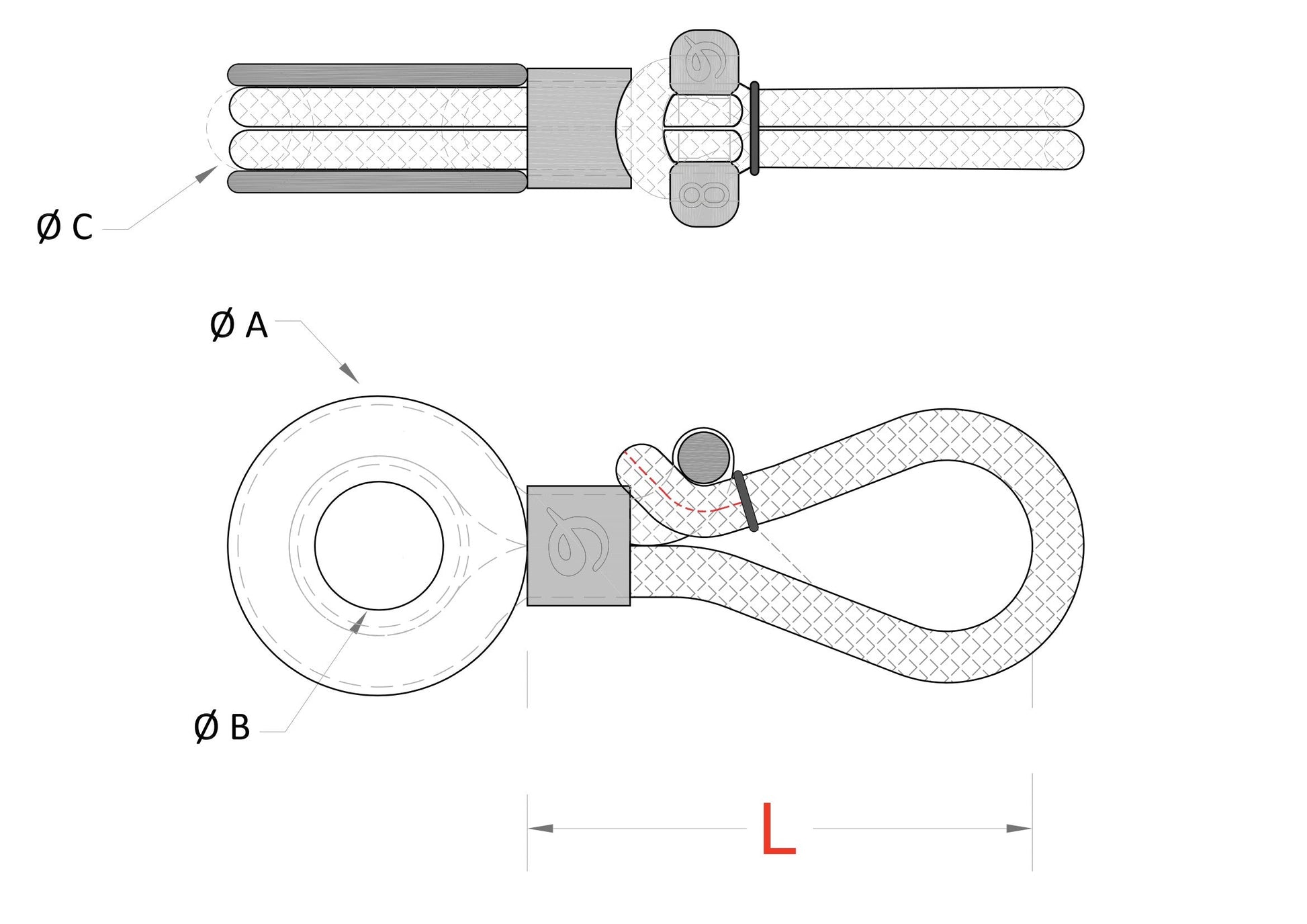

- Rope and groove: match the recommended running-line diameter and the ring or groove dimensions.
- Static or dynamic use: confirm whether the exact model is intended for movement, redirection, or primarily static load.
- Load and angle: use the published limit for the selected size and account for the actual deflection and purchase geometry.
- Connector fit: check the textile loop, shackle, locking method, articulation, and attachment point together.

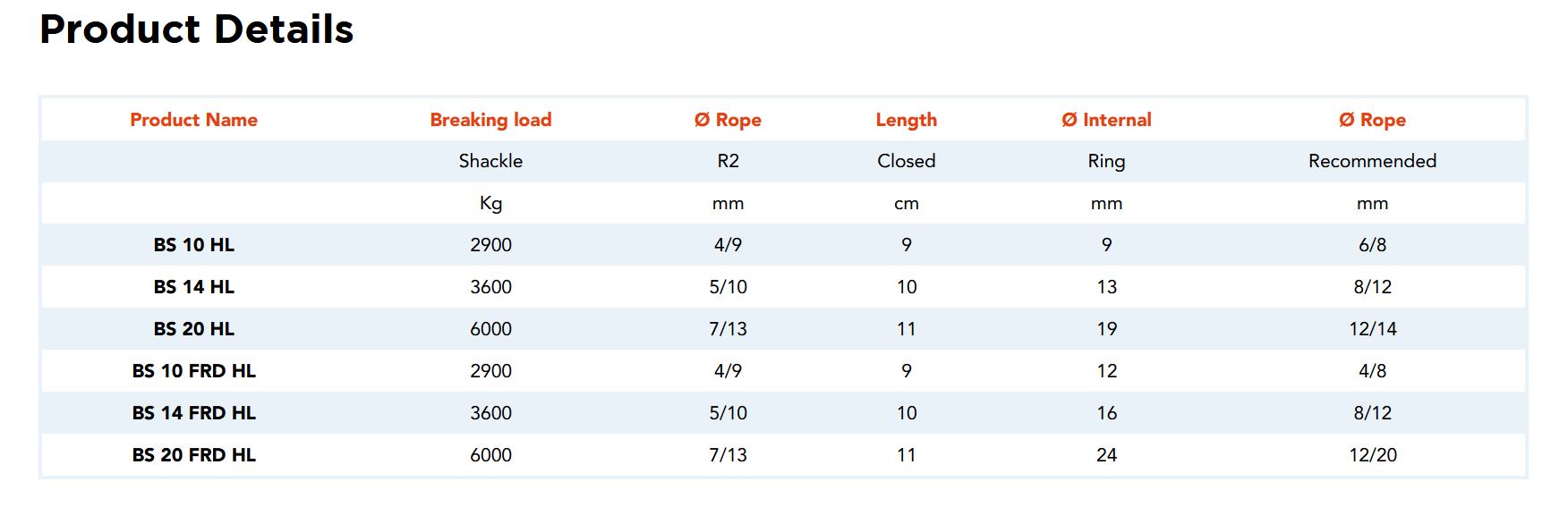

Product specifications and details
Block-shackle® friction

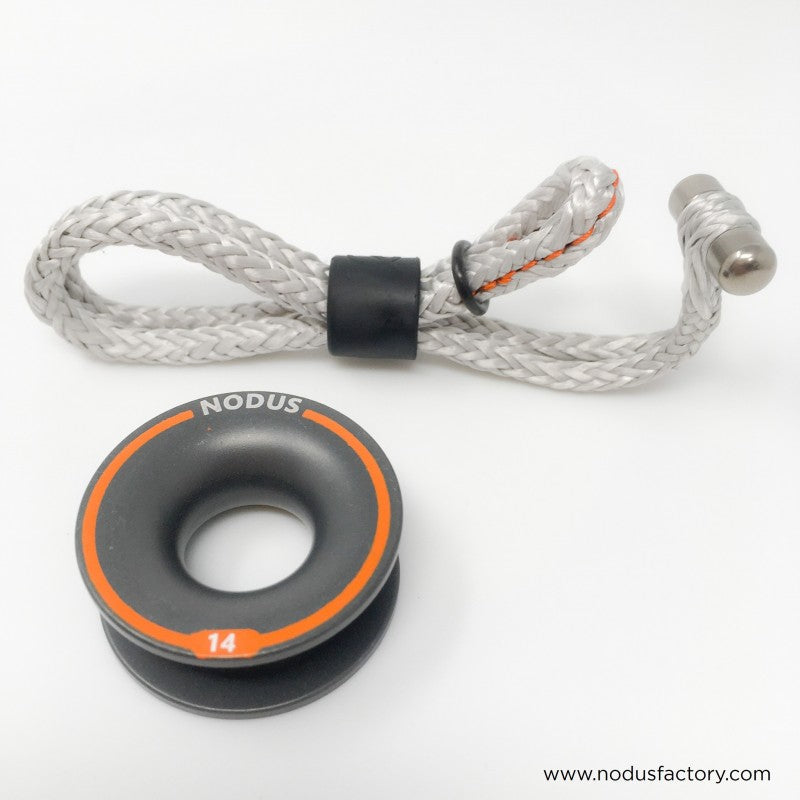

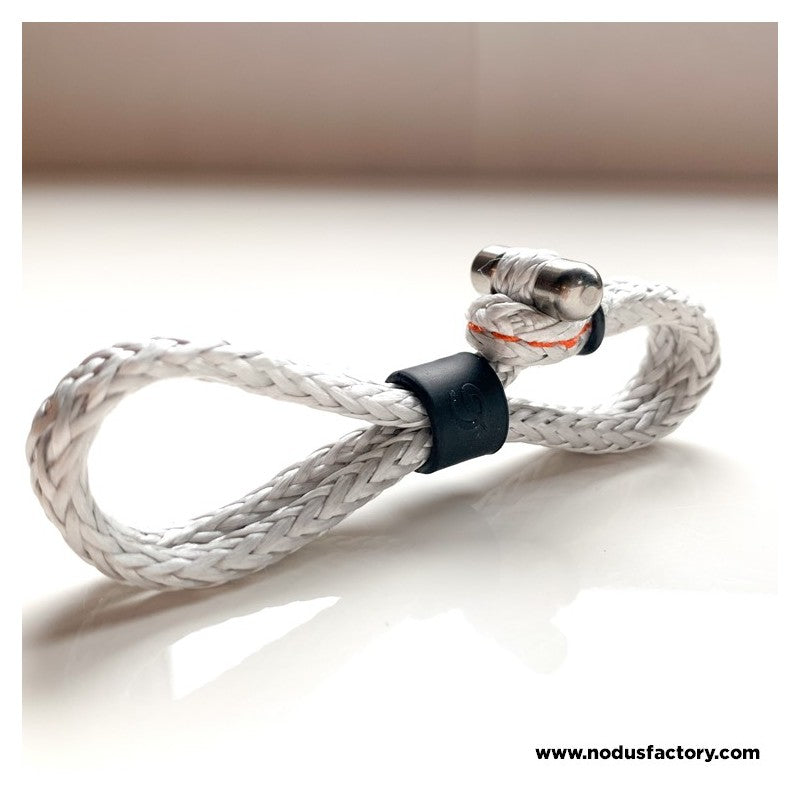

The Block-shackle® friction is a coated textile shackle designed for low-friction rings.

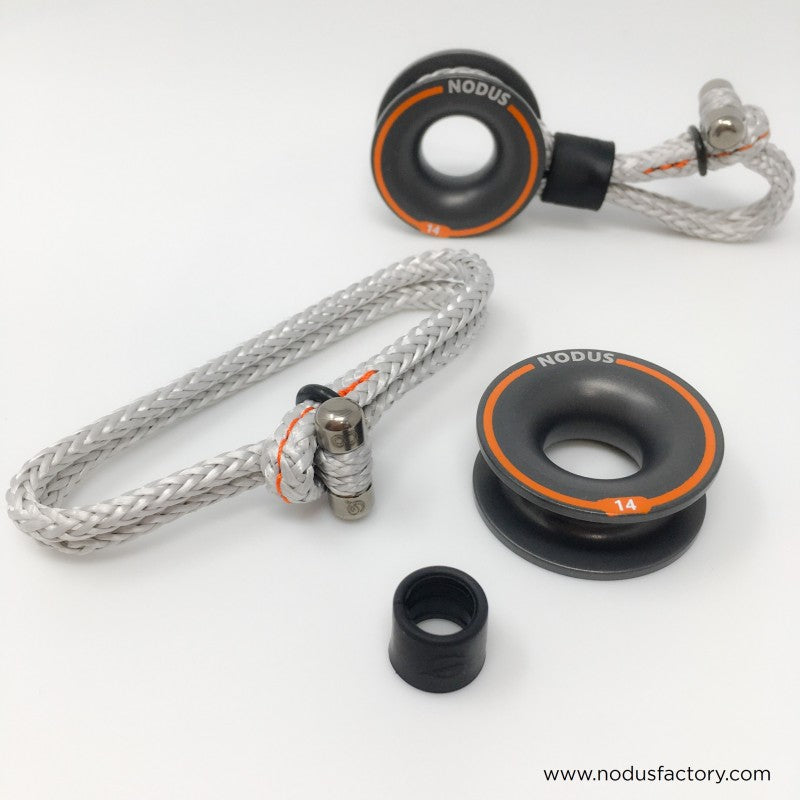

It is supplied with the locking ring, a product of the Plug and Sail™ range.
Description
The Block-shackle® friction is a coated textile shackle designed for low-friction rings.
+ Uses
- Textile shackle for rings, easy to install and designed for heavy static loads / dynamics

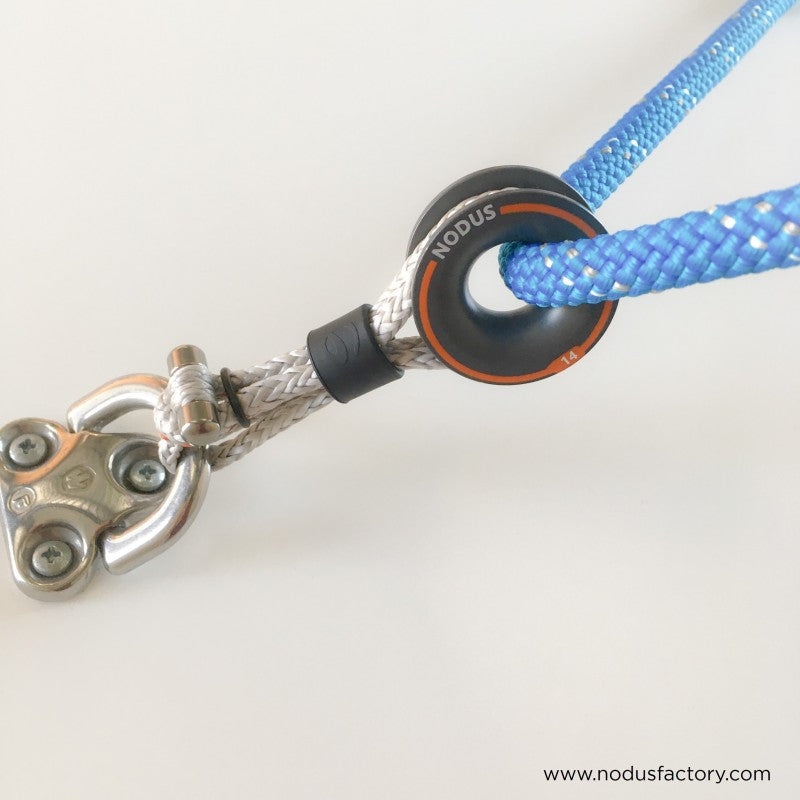

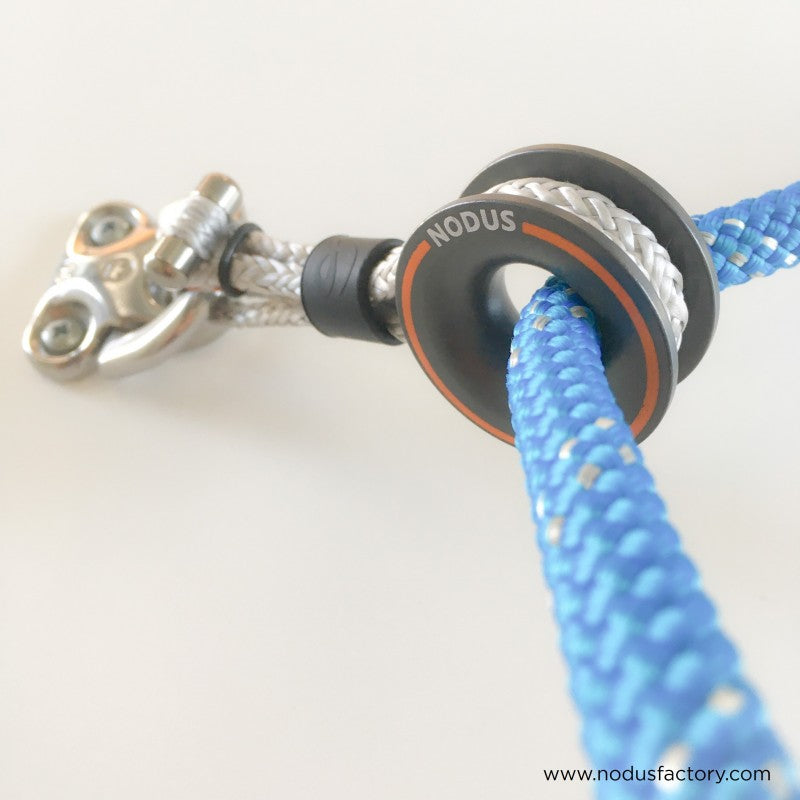

- To guide, deflect and haul any ropes, sheets for genoas, spinnakers, drum bosses barber-hauler and cascading backstay and many other applications.
- An ideal product if you wish to quickly move your point of attachment and hauling
+ Use
- Static : friction ring Fr - resin - *special order please contact us
- Dynamic: friction ring FrD - duralumin -
OPTIONS - see drop down menu
- BS FRD 10 HL / Breaking Load 2900 KG
- BS FRD 20 HL / Breaking Load 6000 KG
