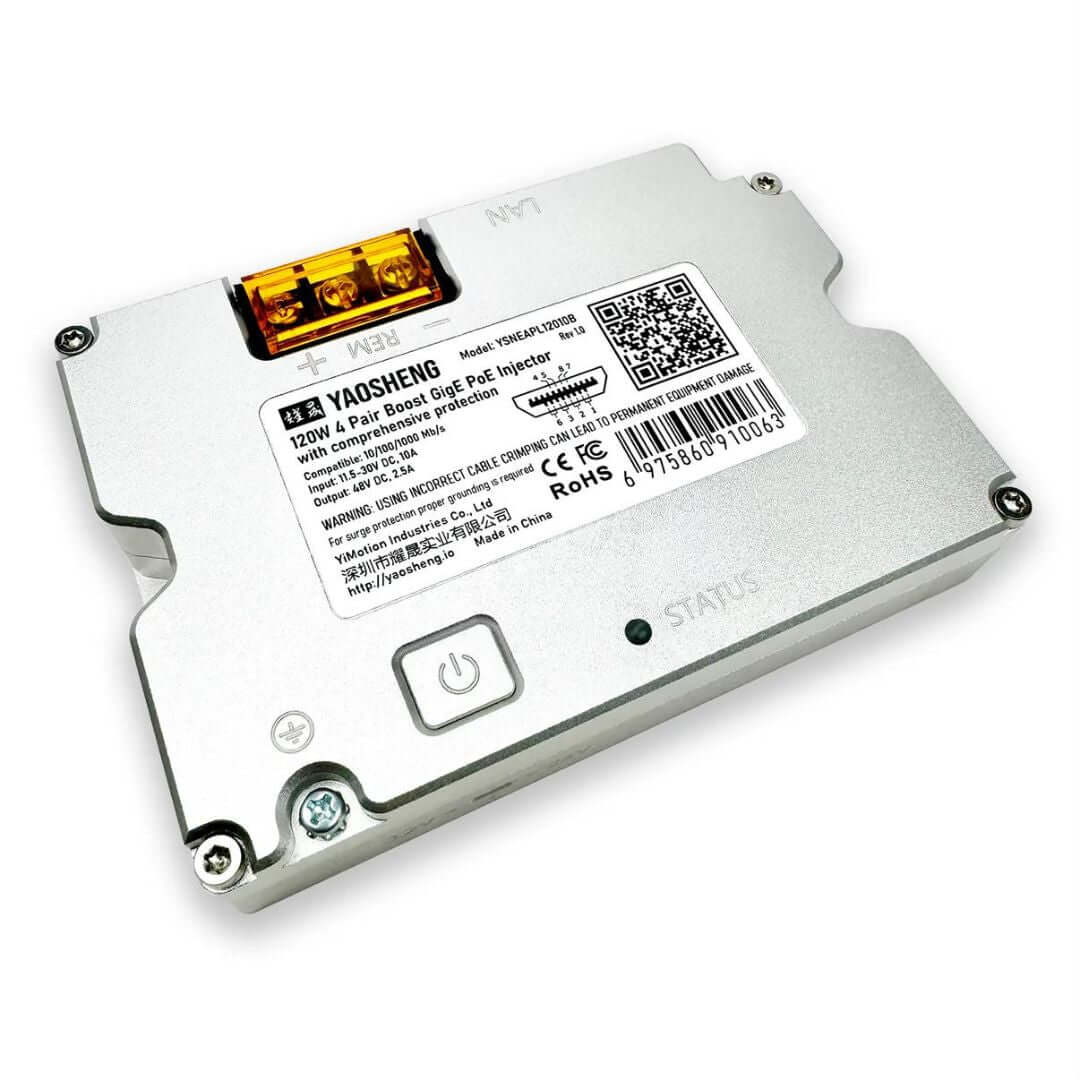

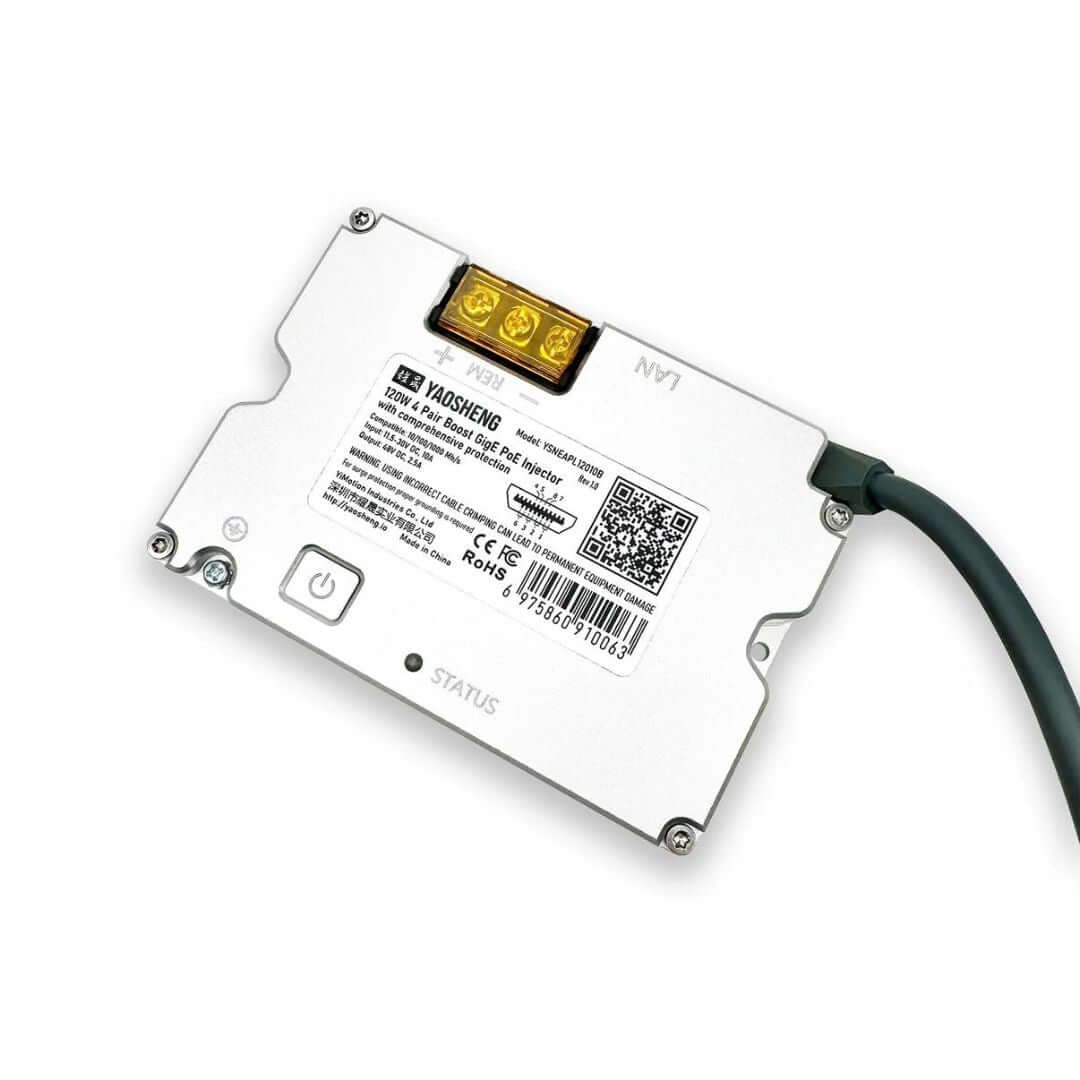

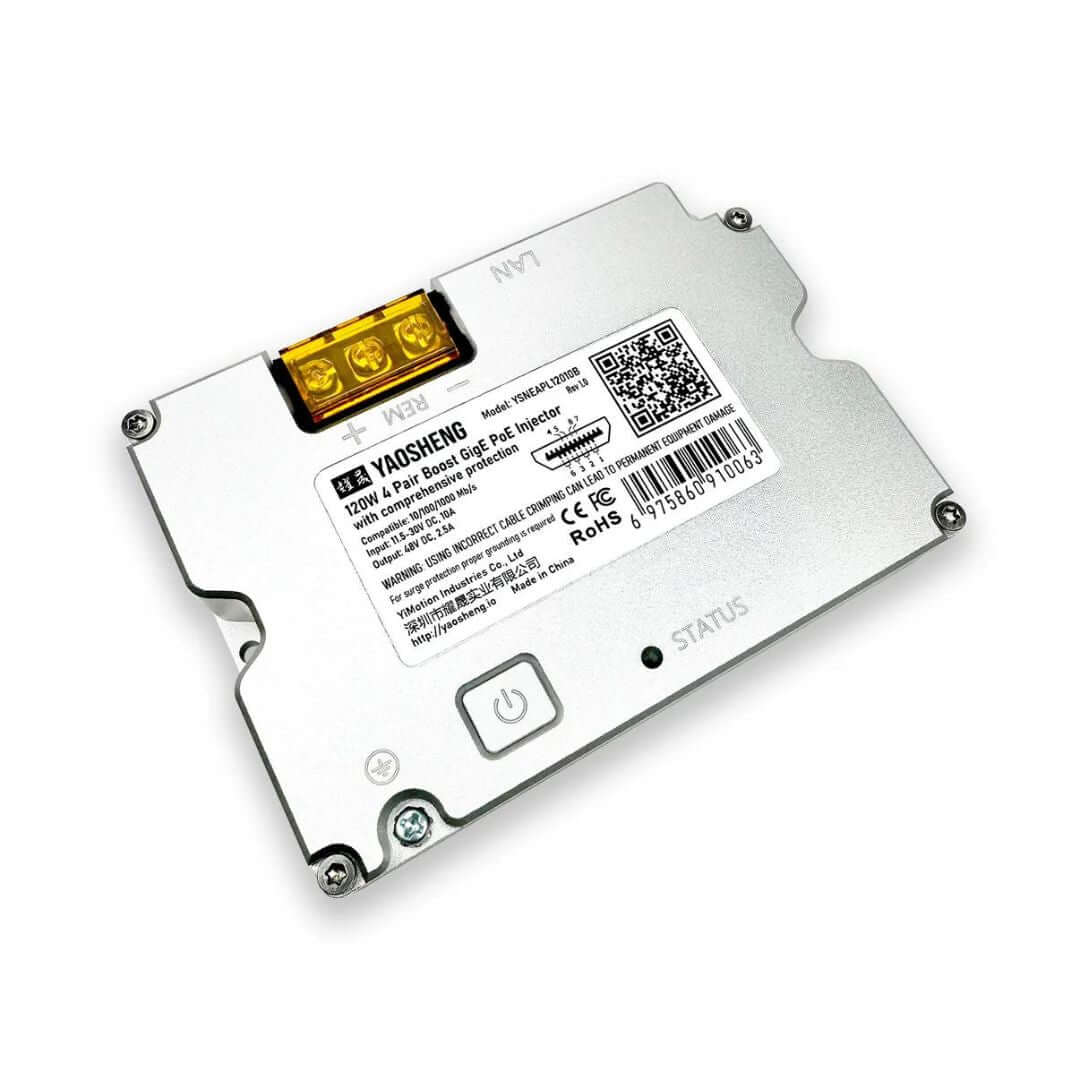

Starlink Adaptor - Power consumption reduction down to 12V
Starlink Adaptor - Power consumption reduction down to 12V
Couldn't load pickup availability

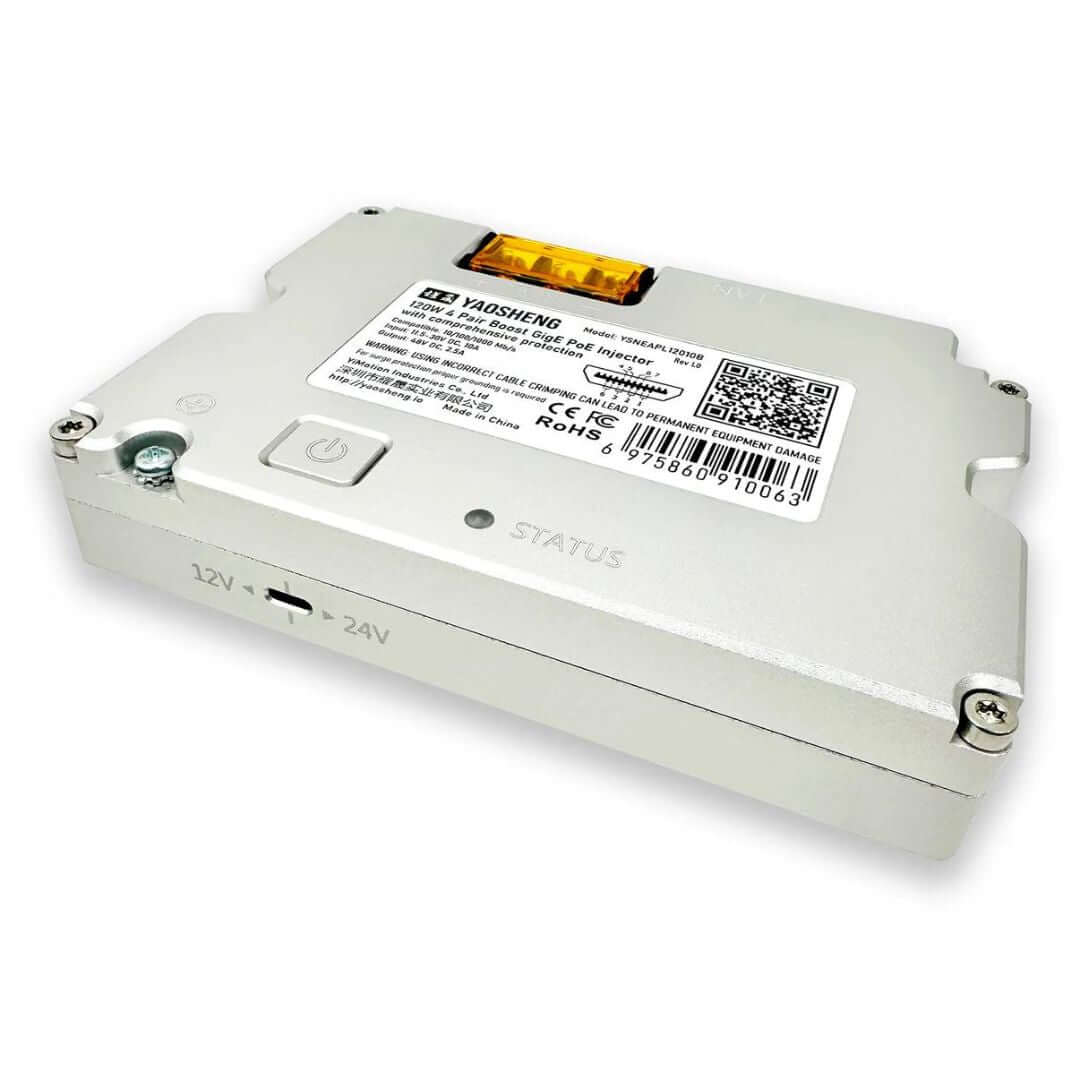

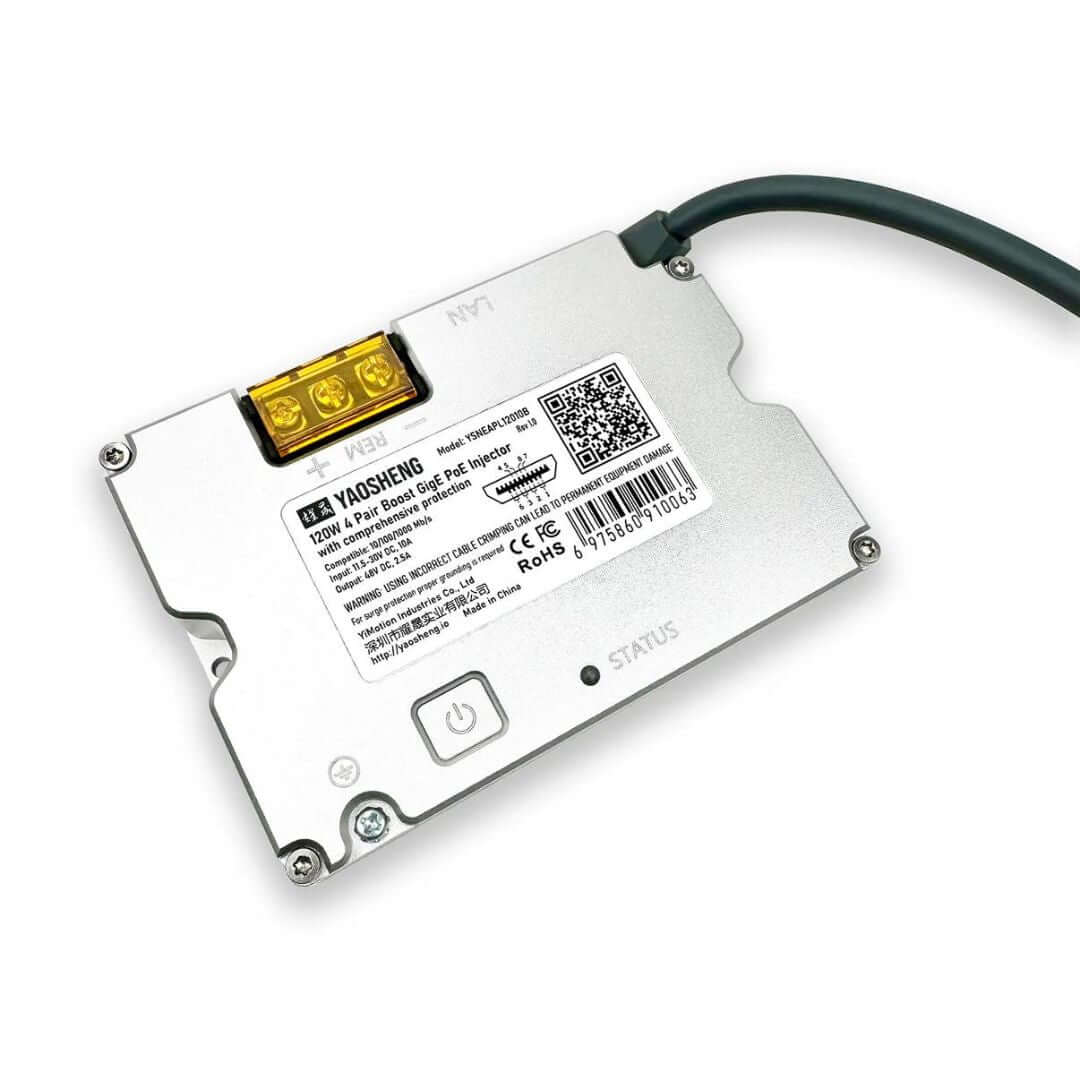

This product is designed for campers and yachts, offering essential battery protection against heavy discharge.

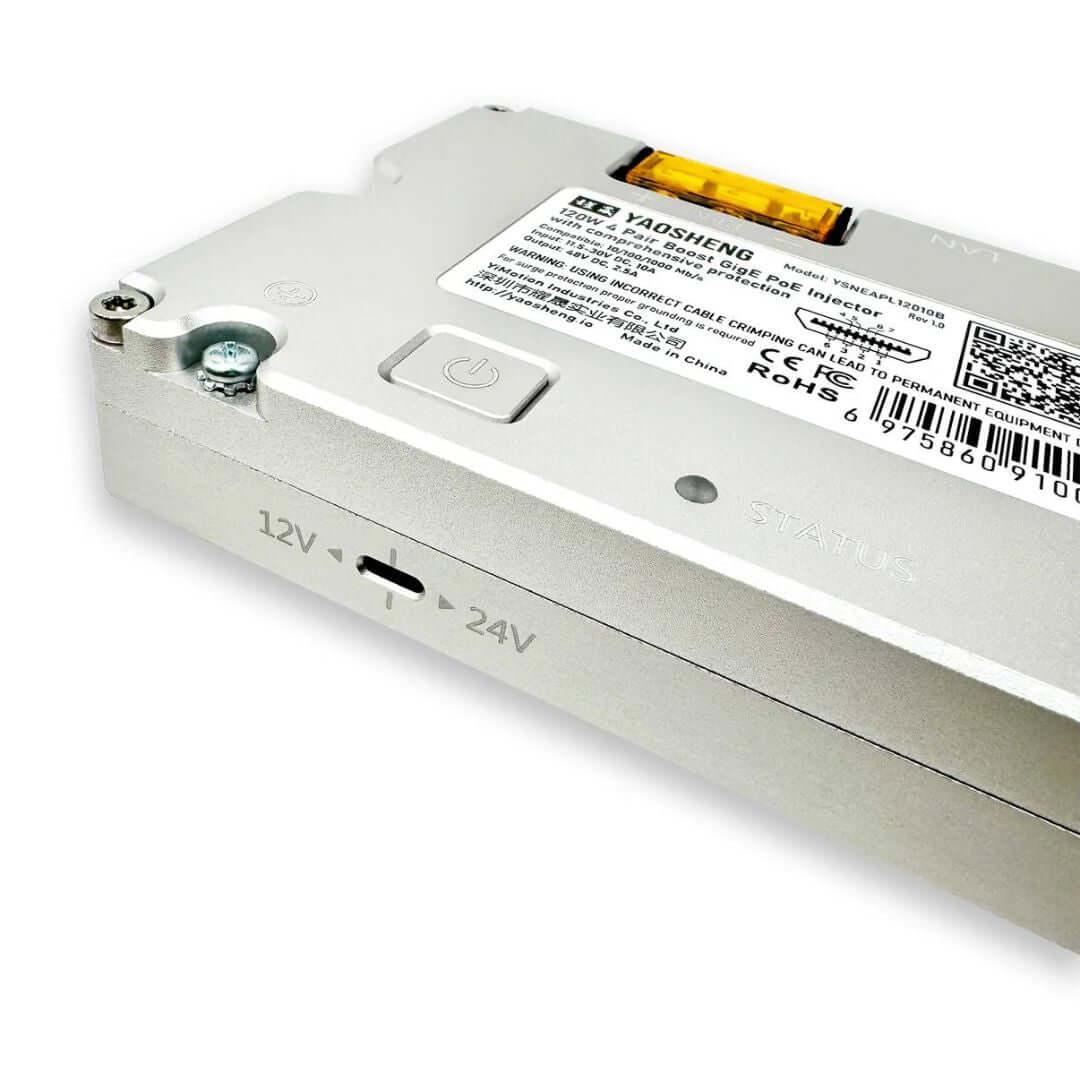

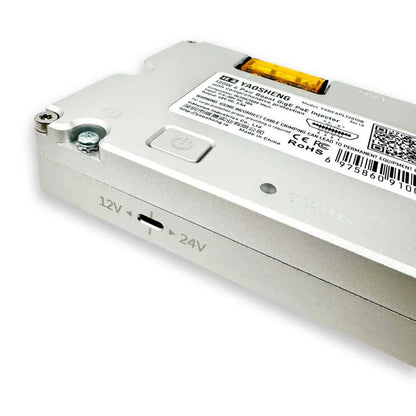

Three Operating Modes:
- Free Mode: Operates across 10-30V without discharge protection.
- 12V Mode: Provides battery discharge protection.
- 24V Mode: Ensures battery discharge protection.
Features:

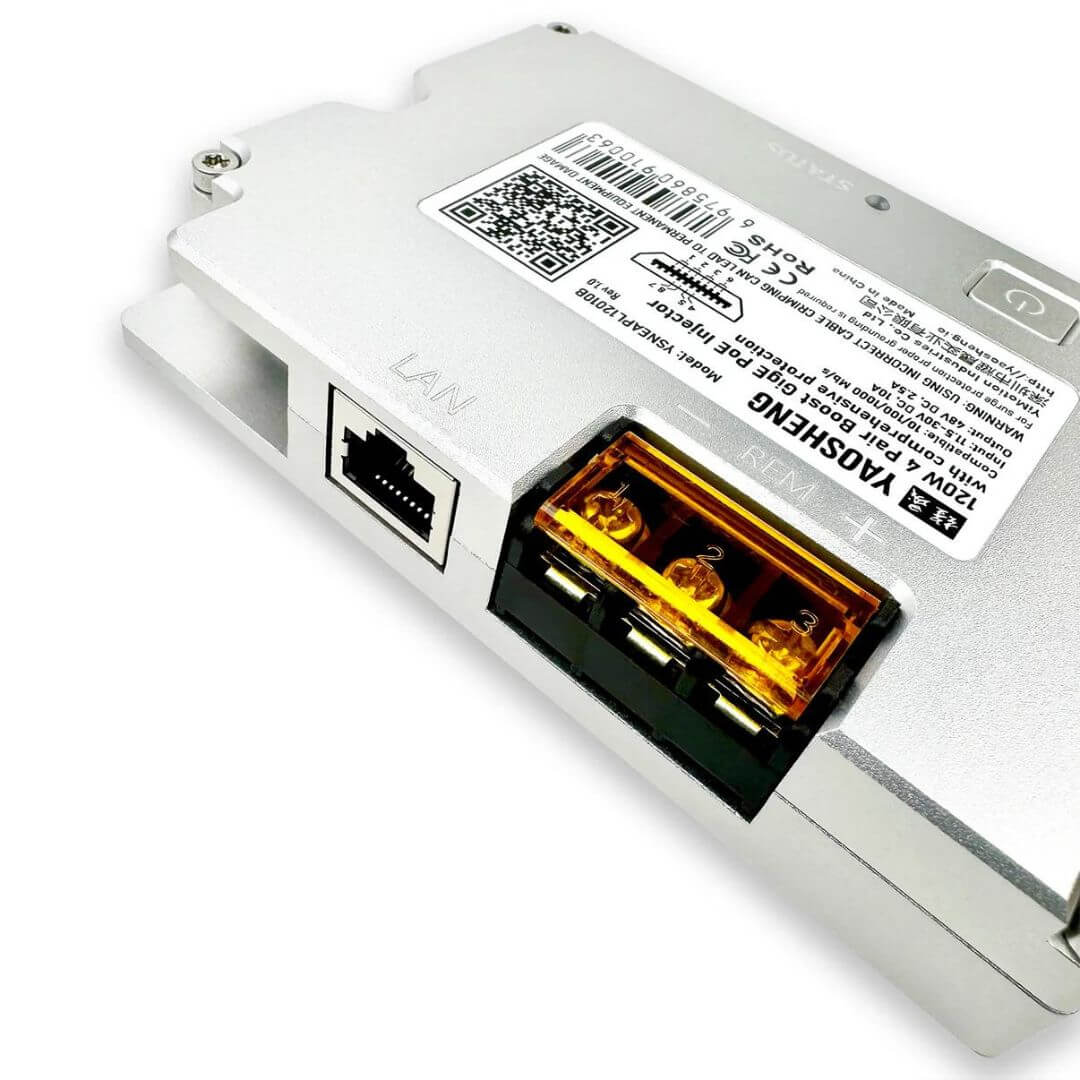

- All-in-one device: Voltage converter + PoE injector + SPX adapter.
Description of functions and an indication of device states, which are the same for both modes:
|
1. Booting |
• LED indication: White LED – 3 sec |
|
2. Short circuit on PoE Port |
Short circuit for less 20 sec - output OFF • LED indication: 🔴 LED Short circuit for more 20 sec - output OFF • LED indication: Blinking 🔵❖🔴 LED The output is locked; a reboot is needed after a short circuit is eliminated. |
|
3. Overheat control |
If device temperature higher 80ºC/176°F - output OFF • LED indication: Blinking 🔵 LED Return to regular work at a temperature lower than 70ºC/158°F |
Functions that differ in different modes:
|
4. Normal work: |
|
||||||
|
5. Voltage limits: |
|
Specifications:
|
Parameter |
Value |
|
Configuration |
4 Pair high power PoE injection |
|
Injection type |
Passive |
|
Pinout |
+V: 1,2,3,6 -V: 4,5,7,8 |
|
Network speed compatibility |
10/100/1000 Mb/s |
|
Absolute input rate |
10.0 - 30.0 VDC, up to 12A |
|
Output rate |
48 VDC, up to 2.5A |
|
Output power |
120W max |
|
Protections |
Surge protection, MCU-based Comprehensive Protection |
|
Operating temperature |
-20 to +55 °C |
|
Operating humidity |
10 - 90% (non condensing) |
|
Storage temperature |
-40 to +70 °C |
|
Model number |
YSNEAPL12001A |
