12" Surface Mount Red / White LED Fixture w/ Touch Switch
12" Surface Mount Red / White LED Fixture w/ Touch Switch
SKU:FX-12T-RW
Purpose-built marine LED lighting. Confirm voltage, mounting or cutout dimensions, light color, and switching or dimming requirements below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers
Surface Mount Chart Table Strip with Red /White Touch Button!

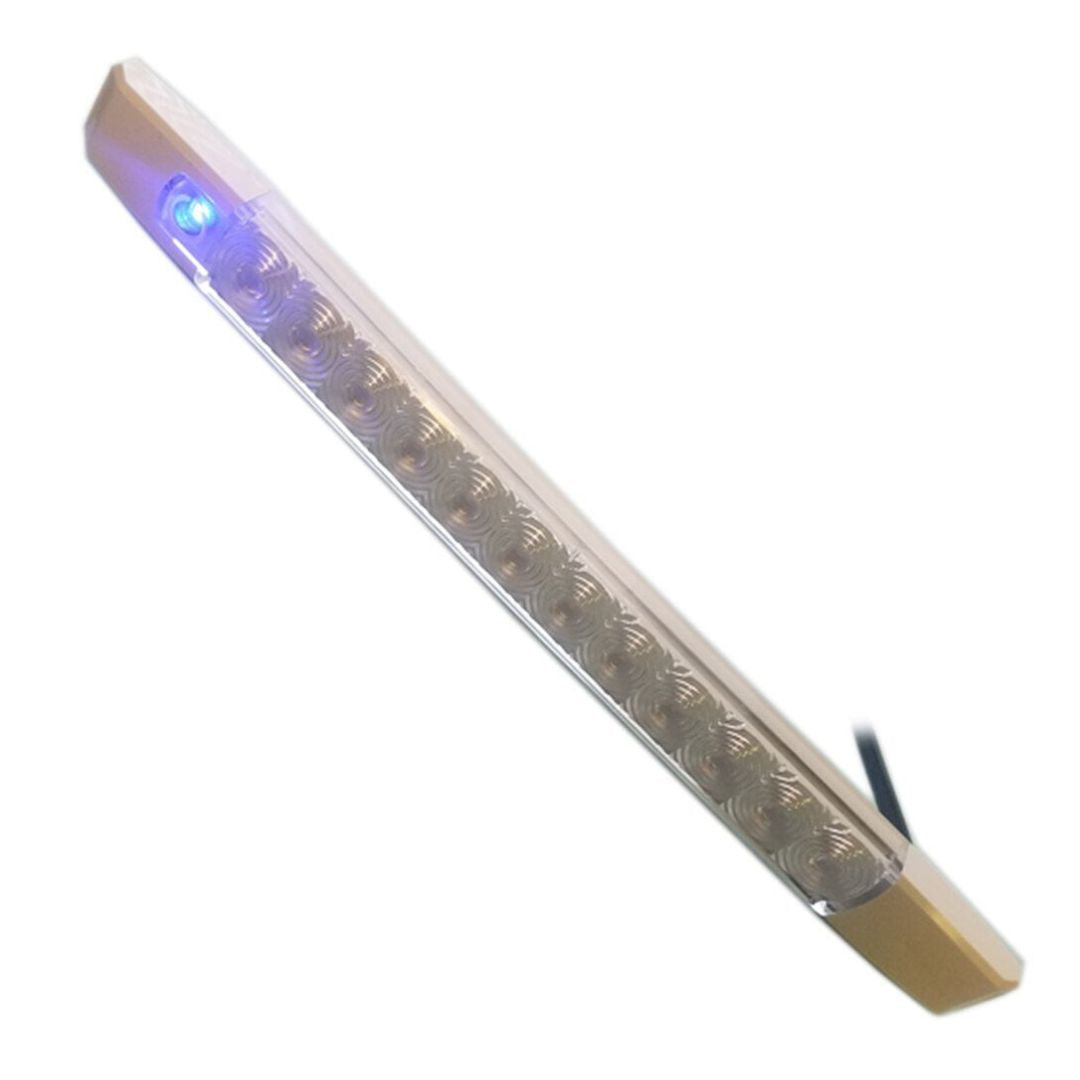

After years of fumbling with gooseneck chart lamps, we've finally found the option to surface mount a compact red / warm white switchable fixture complete with a back-lit touch switch.

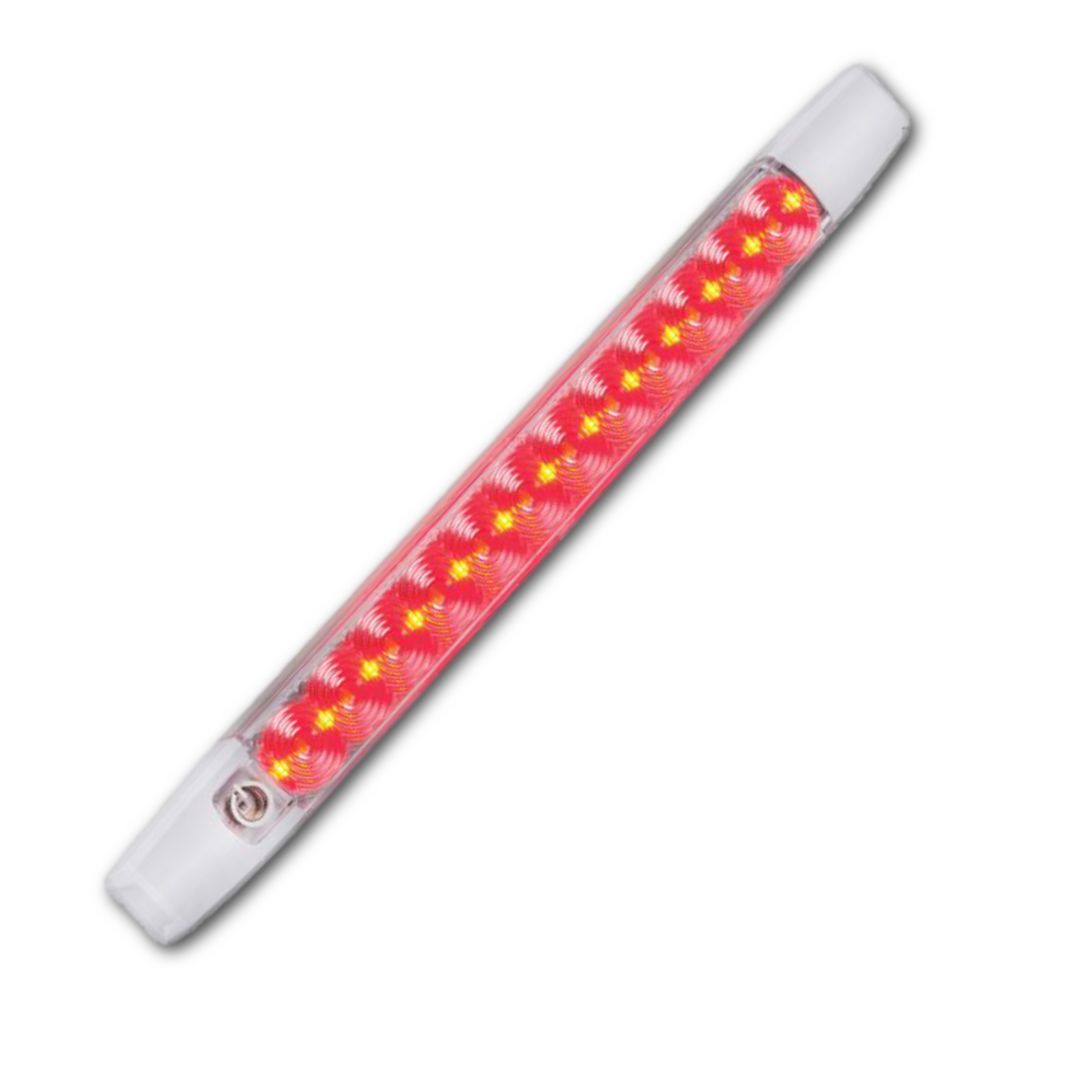

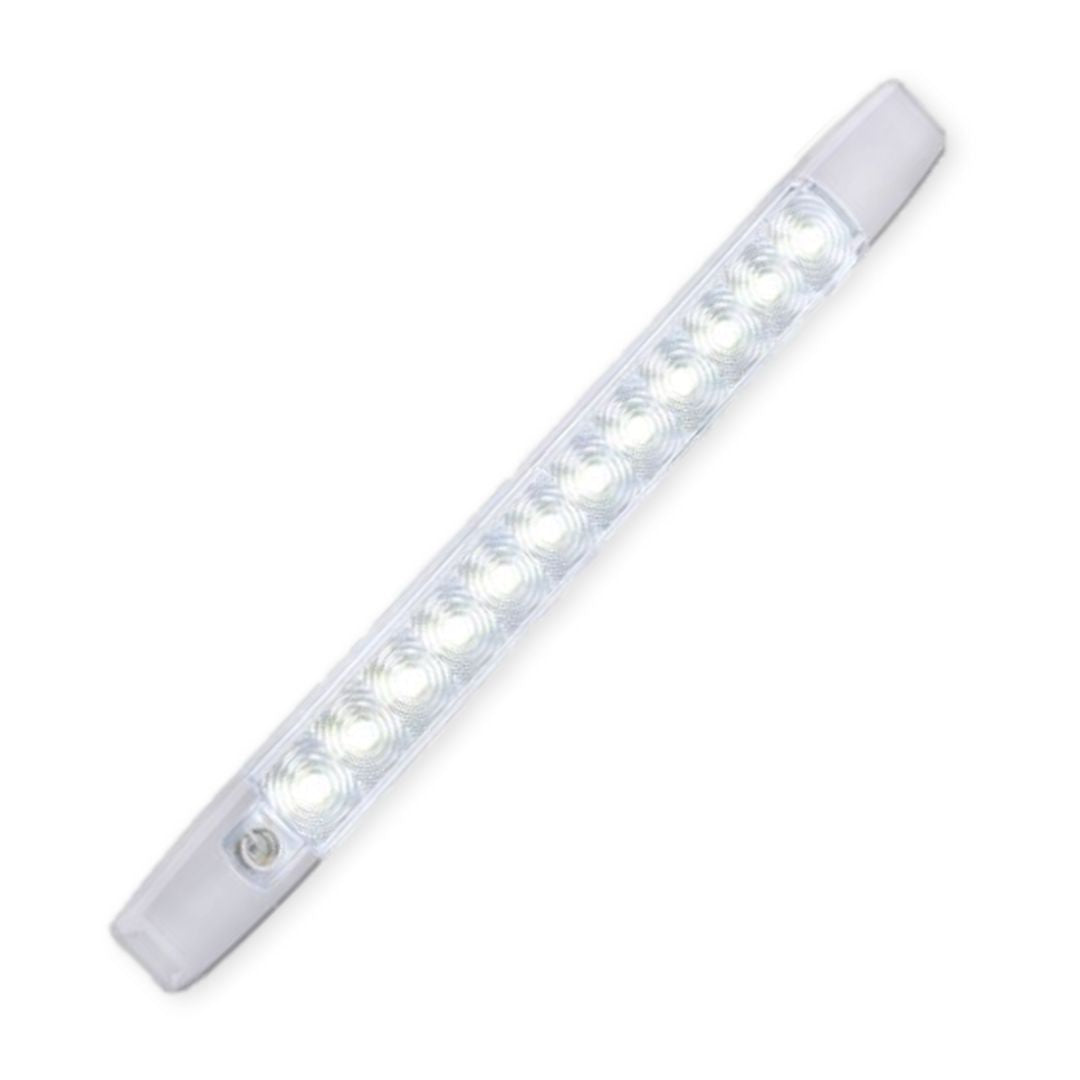

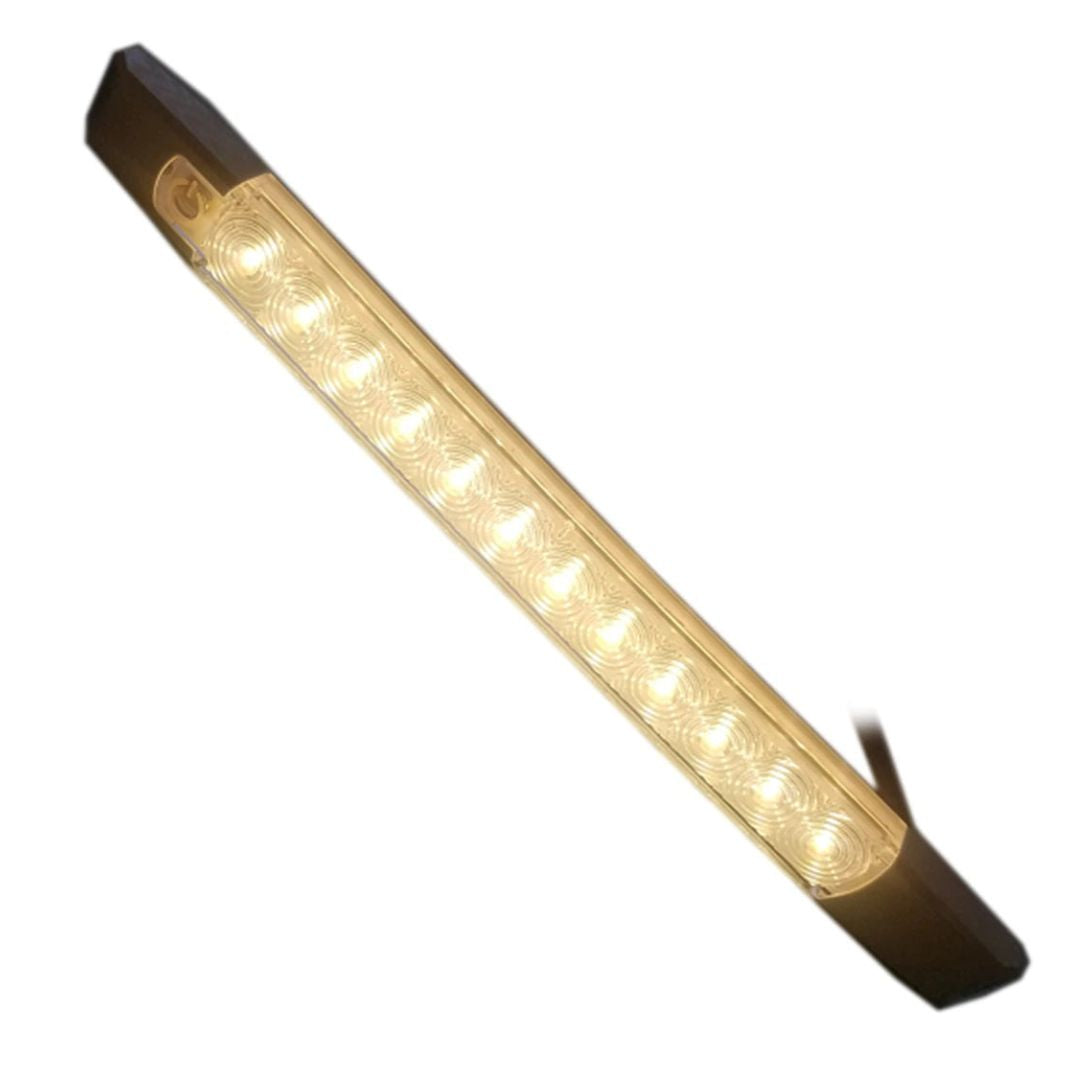

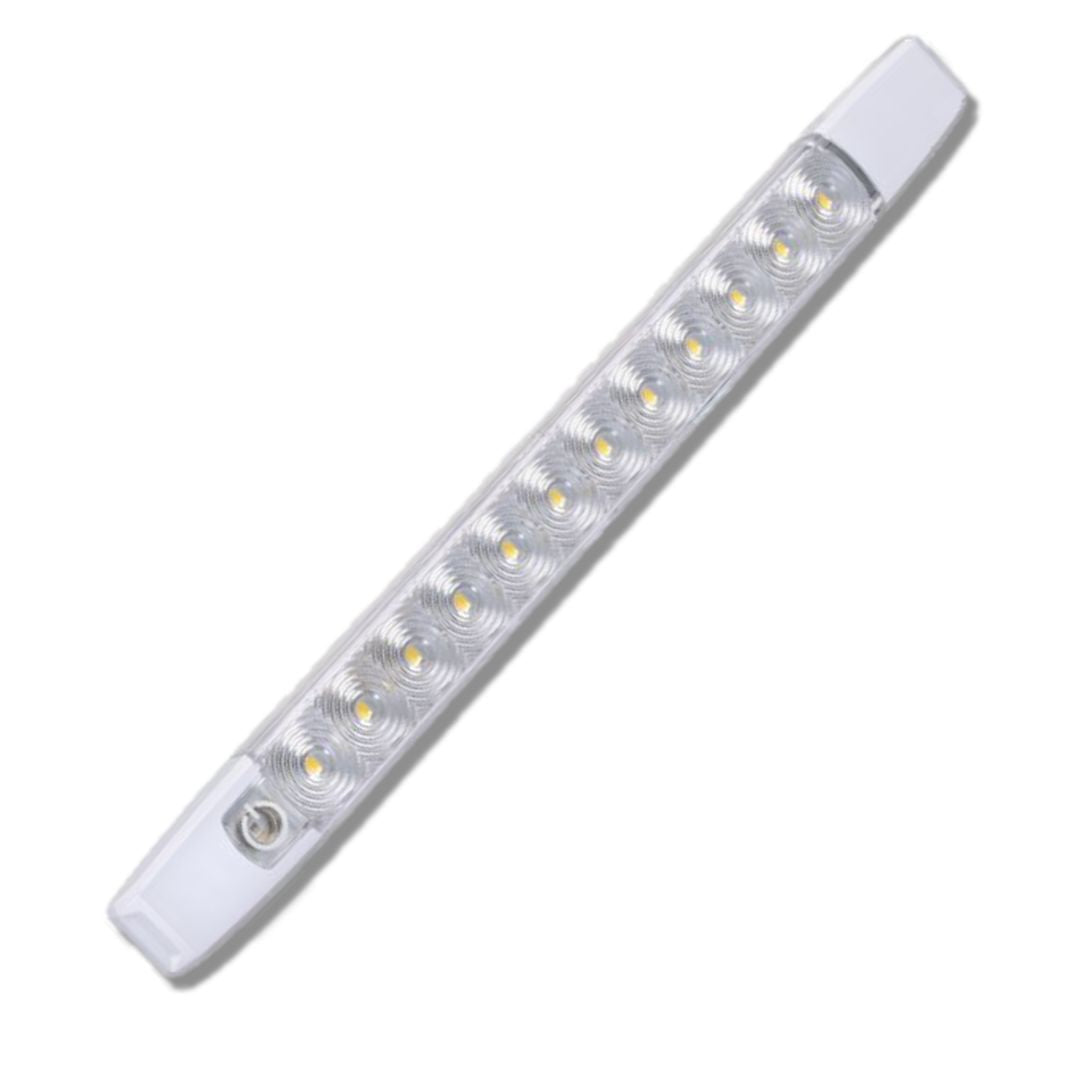

Trying to read with a weak chart lamp or using two fixtures to get red light are now things of the past. This 12" fixture offers 7 red LEDs with an evenly-cast diffused beam along with 12 warm white LEDs in a more concentrated beam for concentrated light.
These features make for the perfect solution that is easy to mount with the 2 included screws.
These are also fully sealed and IP66 rated, so are suitable for indoor or outdoor applications. Makes a great T-Top, Hardtop, or bimini light!
|
LEDs: |
(7) Red emitters > (12) Warm White Emitters |
|||
|
Input Voltage: |
10 - 30VDC (Integrated Constant Current IC) |
|||
|
Wattage: |
2.3 Watts (Red) > 5.0 Watts (Warm White) |
|||
|
Amperage: |
0.19A (Red) / 0.42A (Warm White) at 12VDC |
|||
|
Beam Angle: |
120° Red / 45° Warm White |
|||
|
Color Temperature: |
Red > 3,000°K (Warm White) |
|||
|
Output: |
400 Lumens (Warm White) |
|||
|
Mount Type: |
(2) Included Screws - 10" Spacing |
|||
|

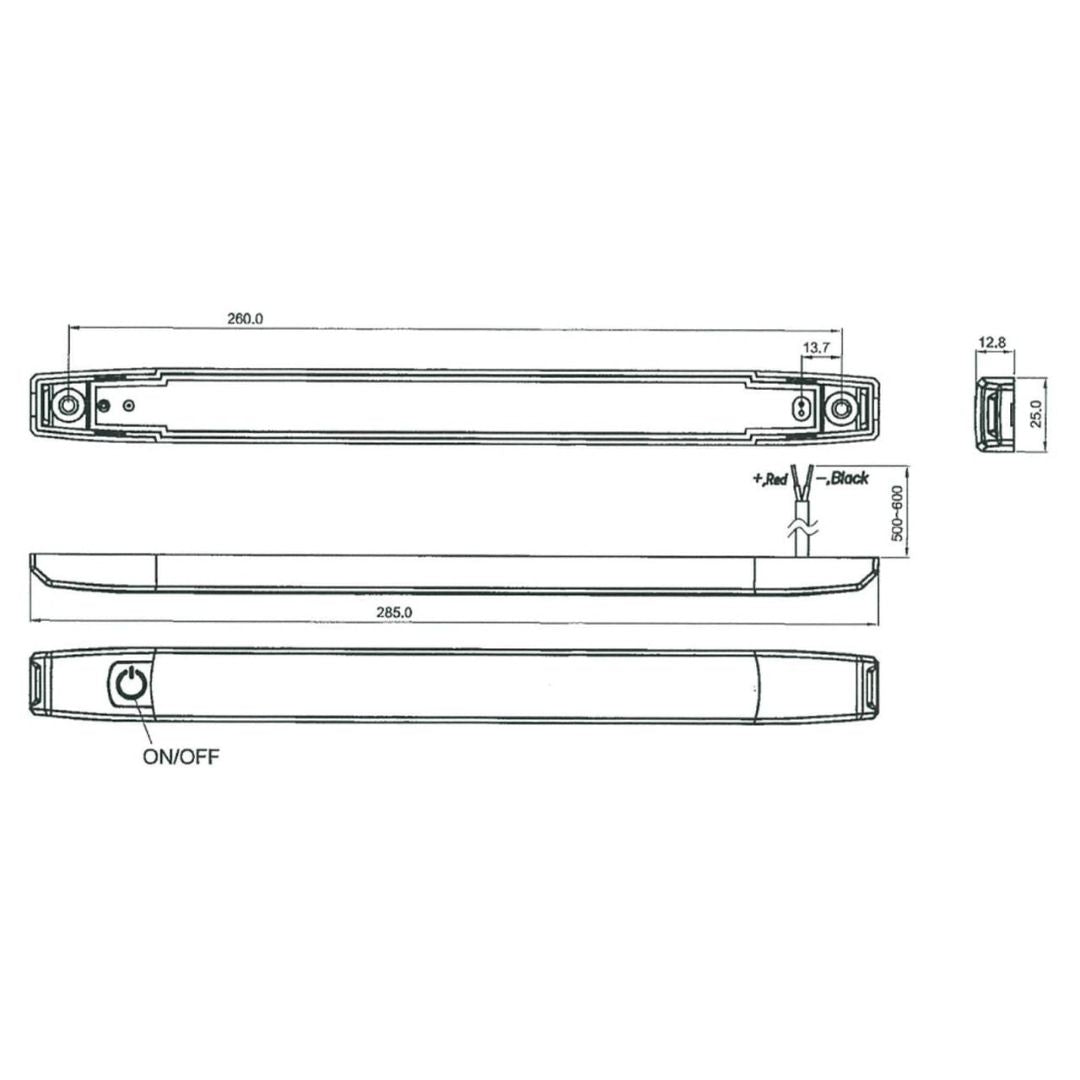

Dimensions: |
12" (L) x 1" (W) x 0.5" (H) |
|||
|
Dimmable: |
Yes - with PWM Dimmer |
|||
|
Lifetime |
30,000 hours |
|||
Technical Specifications
| Power | 2.3 W |
|---|---|
| Light output | 400 lumens |
| Color | warm white |
| Water resistance | IP66 |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
