LED Anchor Light w/Dusk to Dawn Photocell Sensor
LED Anchor Light w/Dusk to Dawn Photocell Sensor
SKU:N1-360-CLR-DD
Marine LED navigation lighting. Confirm the light function, visibility sector, system voltage, and mounting geometry in the specifications below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

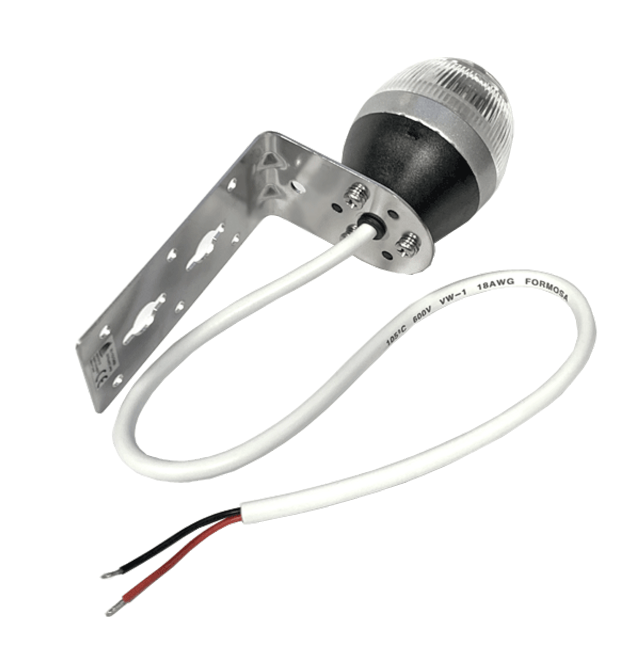

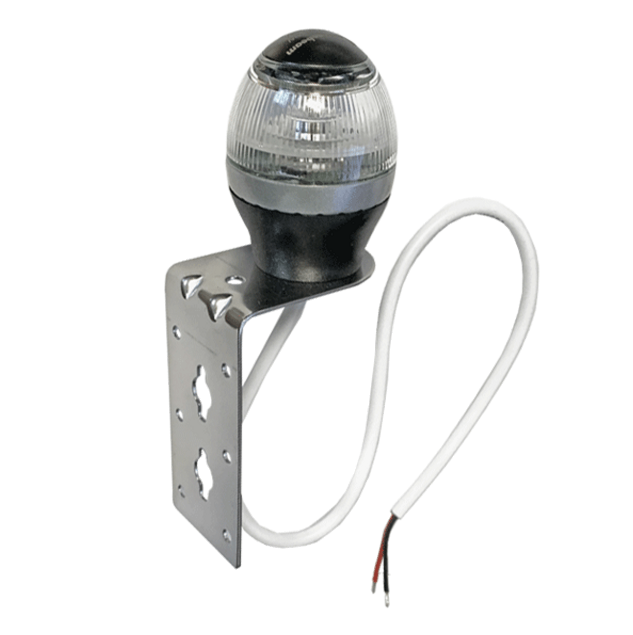

This easy to mount anchor light is USCG Certified for 3NM, while only drawing 0.09A. It comes with 16" of marine grade lead wire for easy connection, stainless steel mounting bracket and 3 screws. This dusk-to-dawn all round light is perfect wherever you need an automatic light.
Our LED anchor lamps do not emit RF harmful interference, and are EMC certified to EN55022, EN61547, and EN60945 so they will not interfere with radios, sensitive electronics, or GPS signals
Currently Unavailable
Specifications
- USCG Certification: 3NM, ABYC A16, COLREG 72
- Voltage: 9-33VDC (12VDC or 24VDC) (12V / 24V)
- Amperage: 0.090A @ 12VDC, 0.045A @ 24VDC
- Wattage: 1W
- Cable: 16", 18AWG Tinned
- Visibility: 3NM
- Housing Color: Black
- Output Color: Cool White
- Ingress Protection: IP67 (fully sealed)
- Approvals: USCG 33CFR183.810, ABYC A-16, EMC EN55022, EN61547 & EN60945
Technical Specifications
| Voltage | 12 V / 24 V DC (multi-volt) |
|---|---|
| Power | 1 W |
| Color | Cool White |
| Water resistance | IP67 |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Function and sector: match the required anchor, steaming, stern, port/starboard, bi-color, or tri-color function.
- Required performance: confirm the certification and visibility distance required for your vessel; brightness alone does not establish compliance.
- Physical fit: compare the mounting footprint, fastener pattern, lens orientation, and available clearance.
- Electrical fit: verify DC voltage, wiring, polarity, switching, and any photocell or multi-mode behavior.
Product specifications and details
This easy to mount anchor light is USCG Certified for 3NM, while only drawing 0.09A. It comes with 16" of marine grade lead wire for easy connection, stainless steel mounting bracket and 3 screws. This dusk-to-dawn all round light is perfect wherever you need an automatic light.
Our LED anchor lamps do not emit RF harmful interference, and are EMC certified to EN55022, EN61547, and EN60945 so they will not interfere with radios, sensitive electronics, or GPS signals
Currently Unavailable
Specifications
- USCG Certification: 3NM, ABYC A16, COLREG 72
- Voltage: 9-33VDC (12VDC or 24VDC) (12V / 24V)
- Amperage: 0.090A @ 12VDC, 0.045A @ 24VDC
- Wattage: 1W
- Cable: 16", 18AWG Tinned
- Visibility: 3NM
- Housing Color: Black
- Output Color: Cool White
- Ingress Protection: IP67 (fully sealed)
- Approvals: USCG 33CFR183.810, ABYC A-16, EMC EN55022, EN61547 & EN60945
