MarineBeam
BAY15D Tri-Color Navigation Light LED Bulb
BAY15D Tri-Color Navigation Light LED Bulb
SKU:TW-1157-TRI-1/TW-1157-RGW-AS
Marine LED navigation lighting. Confirm the light function, visibility sector, system voltage, and mounting geometry in the specifications below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

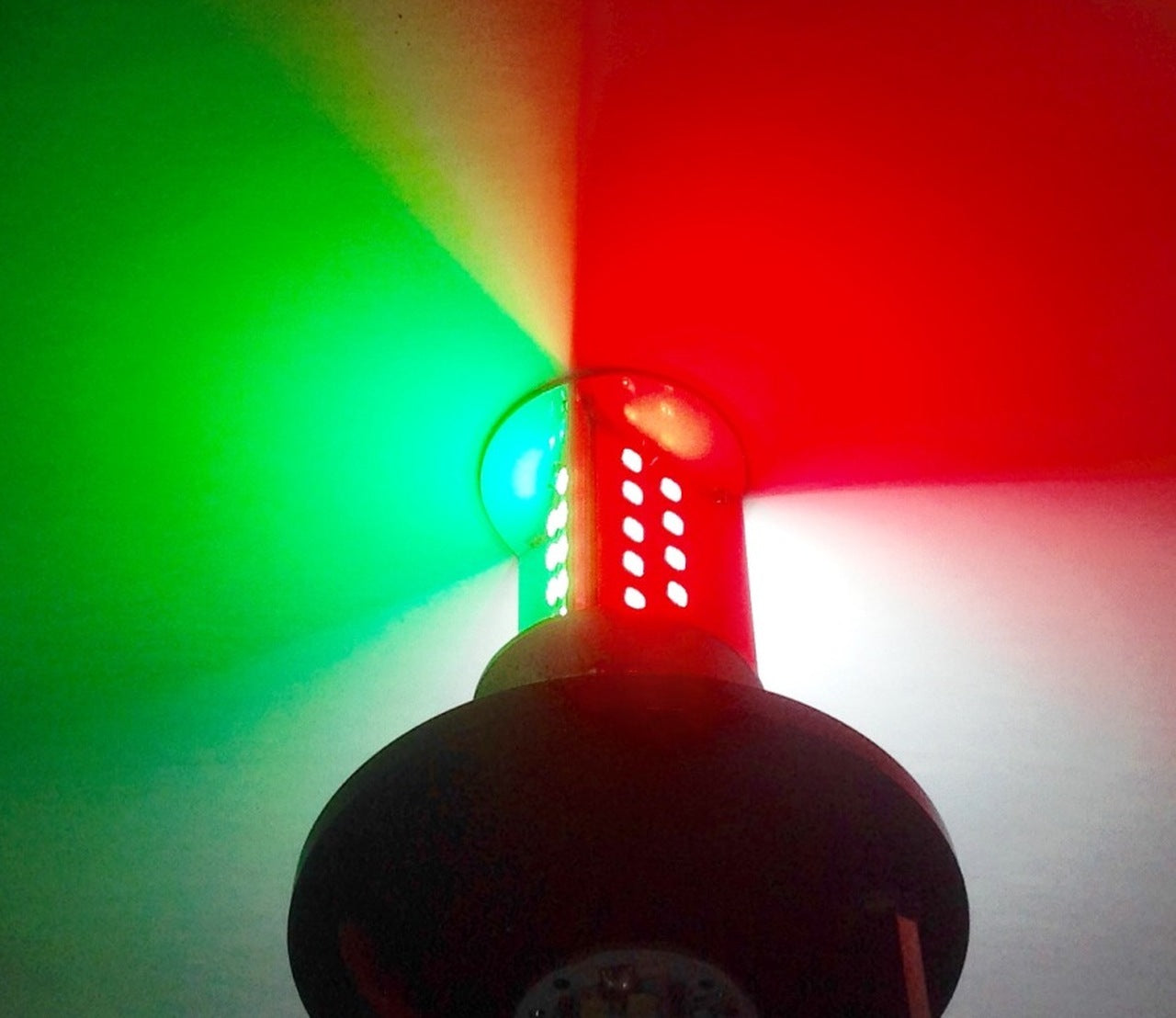

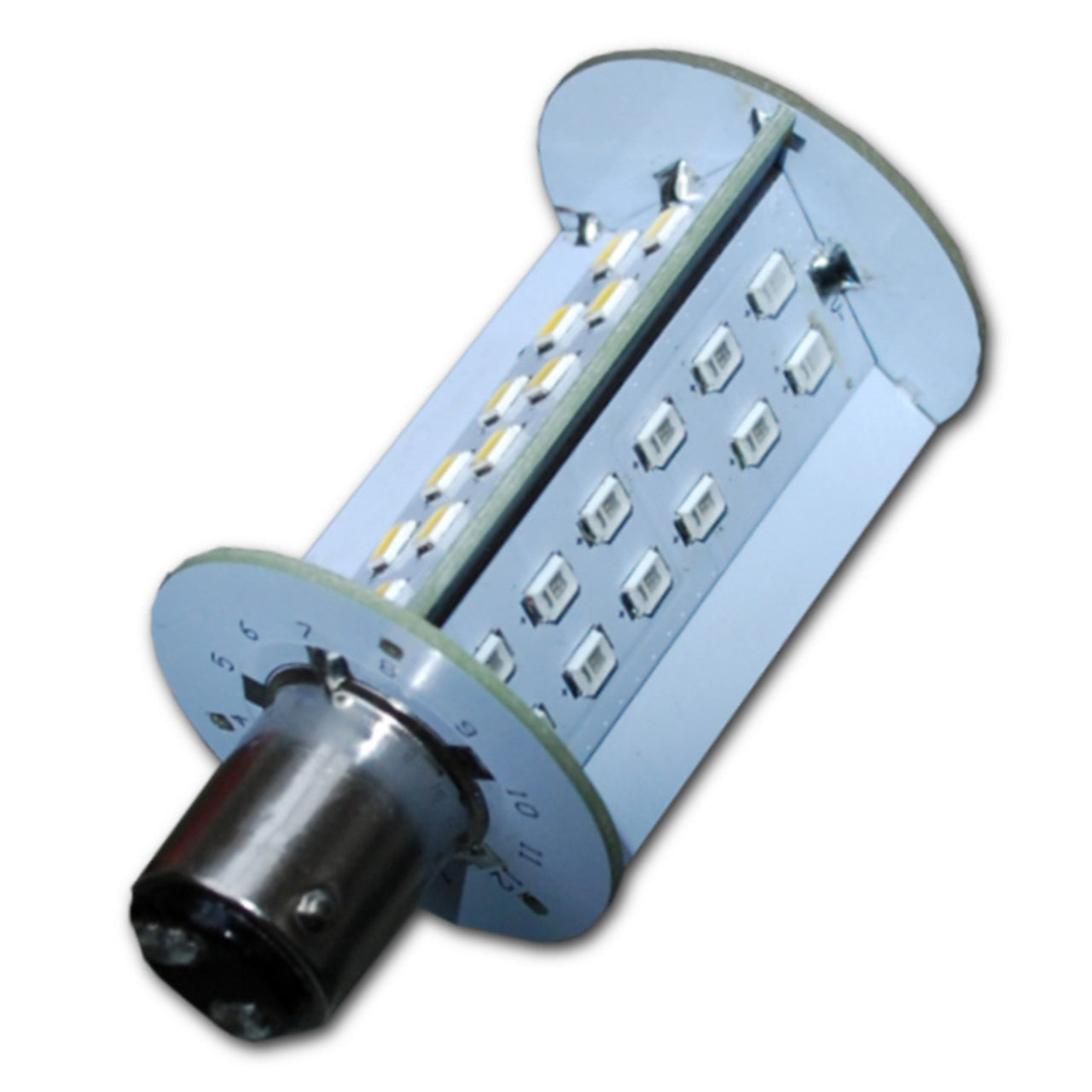

This LED features a total of 36 high-output red, green and white LEDs placed specifically for the “indexed"BAY15D base used on Aqua Signal Series 40, 50, & 55 tri-color masthead navigation lights. We also can index the bulb for Hella and Perko Lamps.
Visibility exceeds 3 miles, power consumption is less than 0.4 amps @ 12V (0.2 amps @ 24V), and life expectancy is over 30,000 hrs. RoHS and CE certification. Special chipset prevents VHF and GPS interference.
Specifications
- Size:32mm x 68mm
- LED QTY: 36 pcs
- Power: 4 W
- Amperage: 0.4 Amps
- Input Voltage: DC10-30V (12V and 24V)
2 Year Warranty
Technical Specifications
| Base / socket | BAY15D |
|---|---|
| Voltage | 9-33VDC |
| Power | 2 Watts |
| Color | Tri-Color |
| Dimensions | 3-7/16" (H) x 3-1/16" (W) x 1-11/16" (D) |
| Visibility | 2NM |
| Housing color | Black or White |
| Output color | Bi-Color Red(Port) Green(Starboard) |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Function and sector: match the required anchor, steaming, stern, port/starboard, bi-color, or tri-color function.
- Required performance: confirm the certification and visibility distance required for your vessel; brightness alone does not establish compliance.
- Physical fit: compare the mounting footprint, fastener pattern, lens orientation, and available clearance.
- Electrical fit: verify DC voltage, wiring, polarity, switching, and any photocell or multi-mode behavior.
Product specifications and details
This LED features a total of 36 high-output red, green and white LEDs placed specifically for the “indexed"BAY15D base used on Aqua Signal Series 40, 50, & 55 tri-color masthead navigation lights. We also can index the bulb for Hella and Perko Lamps.
Visibility exceeds 3 miles, power consumption is less than 0.4 amps @ 12V (0.2 amps @ 24V), and life expectancy is over 30,000 hrs. RoHS and CE certification. Special chipset prevents VHF and GPS interference.
Specifications
- Size:32mm x 68mm
- LED QTY: 36 pcs
- Power: 4 W
- Amperage: 0.4 Amps
- Input Voltage: DC10-30V (12V and 24V)
2 Year Warranty
