MarineBeam
Bulkhead Reading Fixture w/Touch Dimming
Bulkhead Reading Fixture w/Touch Dimming
SKU:FX-YS-1W - BR-Nic
Purpose-built marine LED lighting. Confirm voltage, mounting or cutout dimensions, light color, and switching or dimming requirements below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

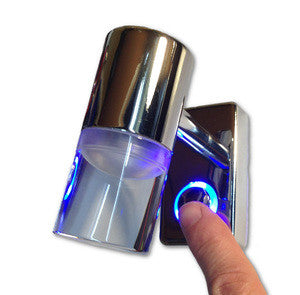

Available in either a chrome or brushed nickel finish, the super economical and sophisticated LED bulkhead reading light is perfect to use as a bunk light or as a small area light. It has the same light output as a 10W halogen, but its cool-to-the-touch LED design makes it 85% more efficient. It also includes a glowing blue LED night-light and a touch dimmer!
The lamps is meant to be wall mounted, and has a fully articulating lexan glass-look hybrid lens, which provides both a spot beam from the end, and a wider area beam from the sides. It is a very elegant and functional lamp that will compliment any boat or RV.
Specifications
- Number of LEDs: 1
- Input Voltage: 10 – 15VDC
- Wattage: 1 Watt
- Amperage: 0.08A at 12VDC
- Beam Angle: 120°
- Color Temperature: 2,900°K (Warm White)
- LED Package Type: PowerLED
- Lumen Output: 90 Lumens, (LM79)
- Base Type: Wall Mount with Articulating Lens
- Dimensions: 80mm(3.15″) x 80mm(3.15)
- Dimmable: Yes – Itegral Dimming
- Lifetime: 30,000 hours
2 Year Warranty
Technical Specifications
| Voltage | 10-30VDC |
|---|---|
| Power | 10 W |
| Wattage | 3W |
| Light output | 90 lumens |
| Color | Warm White (2900-3000 K) |
| Base dimensions | 1-1/2" x 2-3/4" |
| Current | 0.250A to 0.006A |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Mounting: check the face diameter, cutout or fastener pattern, depth, and clearance behind the mounting surface.
- Electrical fit: verify DC voltage, wiring, polarity, and the circuit's switching arrangement.
- Light output: confirm color temperature, lumen output, beam pattern, and whether red or dual-color light is needed.
- Controls: check whether dimming, touch control, a separate switch, or an external driver is required.
Product specifications and details
Available in either a chrome or brushed nickel finish, the super economical and sophisticated LED bulkhead reading light is perfect to use as a bunk light or as a small area light. It has the same light output as a 10W halogen, but its cool-to-the-touch LED design makes it 85% more efficient. It also includes a glowing blue LED night-light and a touch dimmer!
The lamps is meant to be wall mounted, and has a fully articulating lexan glass-look hybrid lens, which provides both a spot beam from the end, and a wider area beam from the sides. It is a very elegant and functional lamp that will compliment any boat or RV.
Specifications
- Number of LEDs: 1
- Input Voltage: 10 – 15VDC
- Wattage: 1 Watt
- Amperage: 0.08A at 12VDC
- Beam Angle: 120°
- Color Temperature: 2,900°K (Warm White)
- LED Package Type: PowerLED
- Lumen Output: 90 Lumens, (LM79)
- Base Type: Wall Mount with Articulating Lens
- Dimensions: 80mm(3.15″) x 80mm(3.15)
- Dimmable: Yes – Itegral Dimming
- Lifetime: 30,000 hours
2 Year Warranty
