MarineBeam
G4 15 Power Side Pin (Brick)
G4 15 Power Side Pin (Brick)
Couldn't load pickup availability

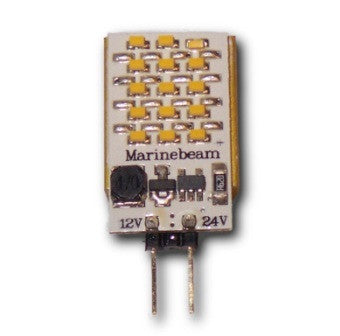

Just 1-3/16″ long by 1/2″ wide, this G-4 will fit in overhead puck lamps, recessed downlights, even the tube type fixtures found on many Euro-yachts, including Jeanneau and Beneteau. At roughly half the size of a postage stamp, it is less than half the size of a Sensibulb™ and 18% more efficient. This tiny form-factor light competes with the brightest LEDs on the market
Specifications
- Voltage 10VDC- 30VDC Constant Current
- Wattage 1.6W (0.130 Amps @ 12V)
- Lumens 125
- Color Temp 3000k
- Beam Angle 120 Deg.
- Dimensions 25mm L x 14.5mm W x 8.5mm D(+pins)
2 Year Warranty
Fit check before ordering
G4 15 Power Side Pin (Brick) should be matched to the existing fixture before ordering. The product name identifies the bulb or fixture family, but the final fit still depends on base, pin orientation, voltage, color, clearance, and the job the light performs.
| Check | Why it matters |
|---|---|
| Base or socket | G4, bayonet, wedge, festoon, MR11, and E26/E27 bases can look similar but fit differently. |
| Voltage and polarity | Marine DC systems vary, and some installations are sensitive to wiring, dimming, or polarity. |
| Color and use | Warm white, cool white, red, green, and dual-color options solve different cabin, cockpit, and navigation-light jobs. |
| Physical clearance | Tower, side-pin, back-pin, dome, and fixture housings can interfere with lenses or covers. |
Current selectable options
| Current page option | Visible values |
|---|---|
| Title | Default Title |
FAQ
Can I choose by bulb family alone?
No. Confirm the exact base, pin direction or offset, lens clearance, and color before ordering.
Is every LED suitable for a navigation light?
No. Navigation lights depend on fixture geometry, visibility sector, lens color, and output pattern. Use a navigation-specific bulb or fixture where required.
For more replacement choices, see LED replacement bulbs.
