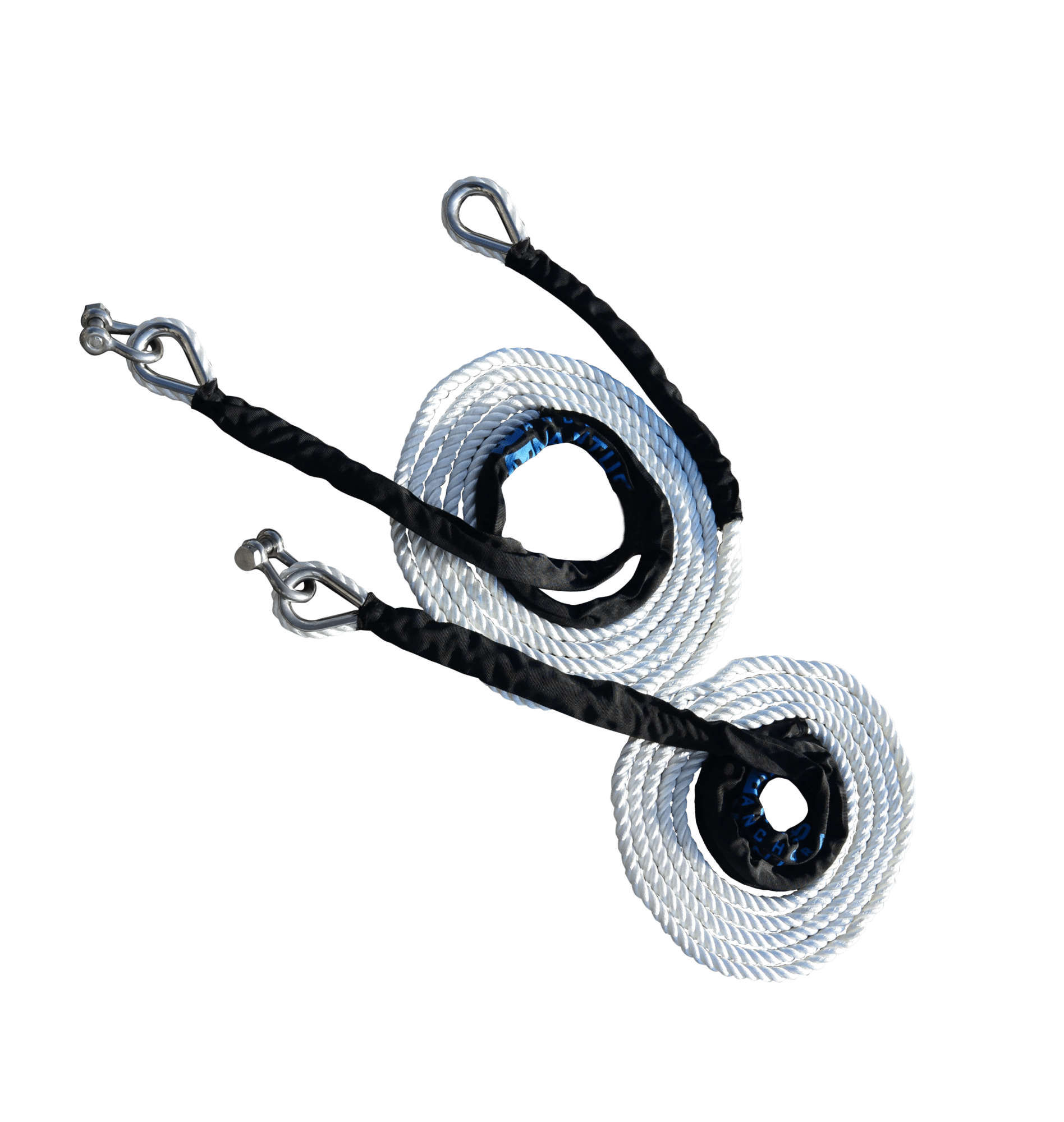

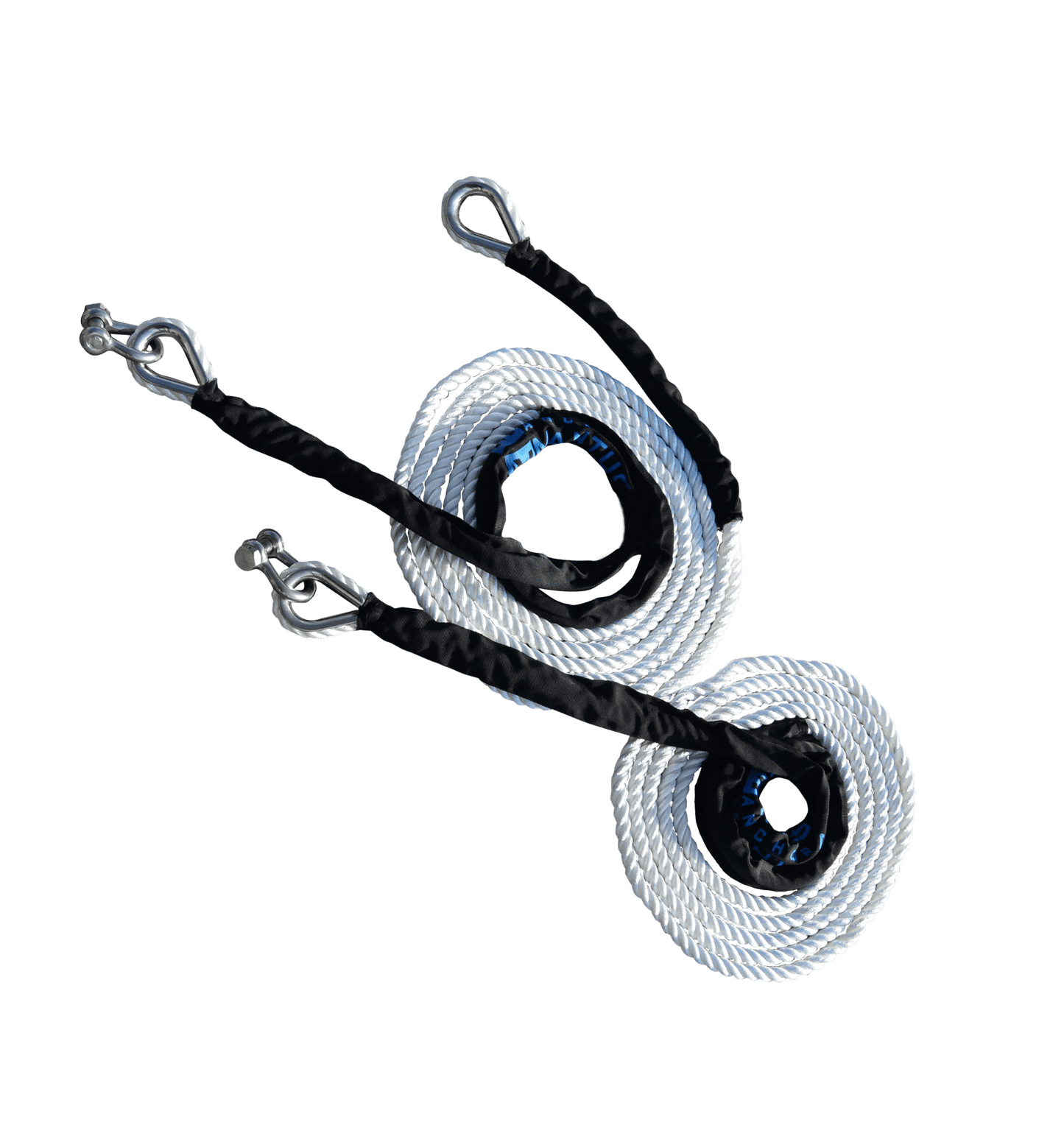

Mantus Large Catamaran Anchor Bridle
Mantus Large Catamaran Anchor Bridle
SKU:MANBRIDLECAT-L
- 50–70 ft / 15.2–21.3 mBoat-length guide
- 1 in / 25 mmNylon rope diameter
- 30 ft / 9.1 mOverall bridle length
Large three-strand nylon anchor bridle for boats approximately 50–70 ft (15.2–21.3 m). This listing does not include a chain hook.
See full product details and specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers
Large Mantus Bridle Catamaran reduces shock loads and moves strain away from the windlass; use the sizing details below to match it to your boat.
Catamaran anchor bridle - large. Hook not included.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Bridle sizing and equipment
Three-strand nylon stretches under changing wind and wave loads, while chafe protection and heavy-duty 316L stainless thimbles protect the high-wear areas. Catamaran versions add two 2205 duplex-stainless shackles for the bow attachment points.
| Size | Boat-length guide | Rope diameter | Overall length | Individual leg length | Safe working load |
|---|---|---|---|---|---|
| Small | 30–40 ft (9.1–12.2 m) | 5/8 in (16 mm) | 23 ft (7.0 m) | 20 ft (6.1 m) | 1,525 lb (692 kg) |
| Medium | 40–50 ft (12.2–15.2 m) | 3/4 in (19 mm) | 26 ft (7.9 m) | 22 ft (6.7 m) | 2,087 lb (947 kg) |
| Large | 50–70 ft (15.2–21.3 m) | 1 in (25 mm) | 30 ft (9.1 m) | 26 ft (7.9 m) | 3,675 lb (1,667 kg) |
This listing is the bridle without a chain hook. Choose a compatible M3 hook separately if needed.
