LED Deck Light Steaming Light Combo Masthead Fixture - White Housing
LED Deck Light Steaming Light Combo Masthead Fixture - White Housing
SKU:N1-225-CMBW
Marine LED navigation lighting. Confirm the light function, visibility sector, system voltage, and mounting geometry in the specifications below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers
LED White Housing - You won't be disappointed with this light. Don't let its low price fool you. It is by far our most popular navigation light fixture, and this 3NM LED Combination Masthead/Deck Light is certified to meet USCG/COLREG/CE & ABYC A16 requirements for vessels up to 20M. This lamp combines the mid-mast mounted masthead 3NM LED steaming light and a powerful LED fore-deck light in one attractive and robust housing.
It has all the features that you have come to expect from our Navigation Fixtures, including a true constant-current topology (10-33VDC input), IP67 waterproof sealed housing, marinized construction, and a super bright 4W LED deck light. The light uses our 225° 2W sealed LED steaming light module, coupled with a high-output 4W LED deck light in a robust and UV-stabilized black Nylon66 housing.

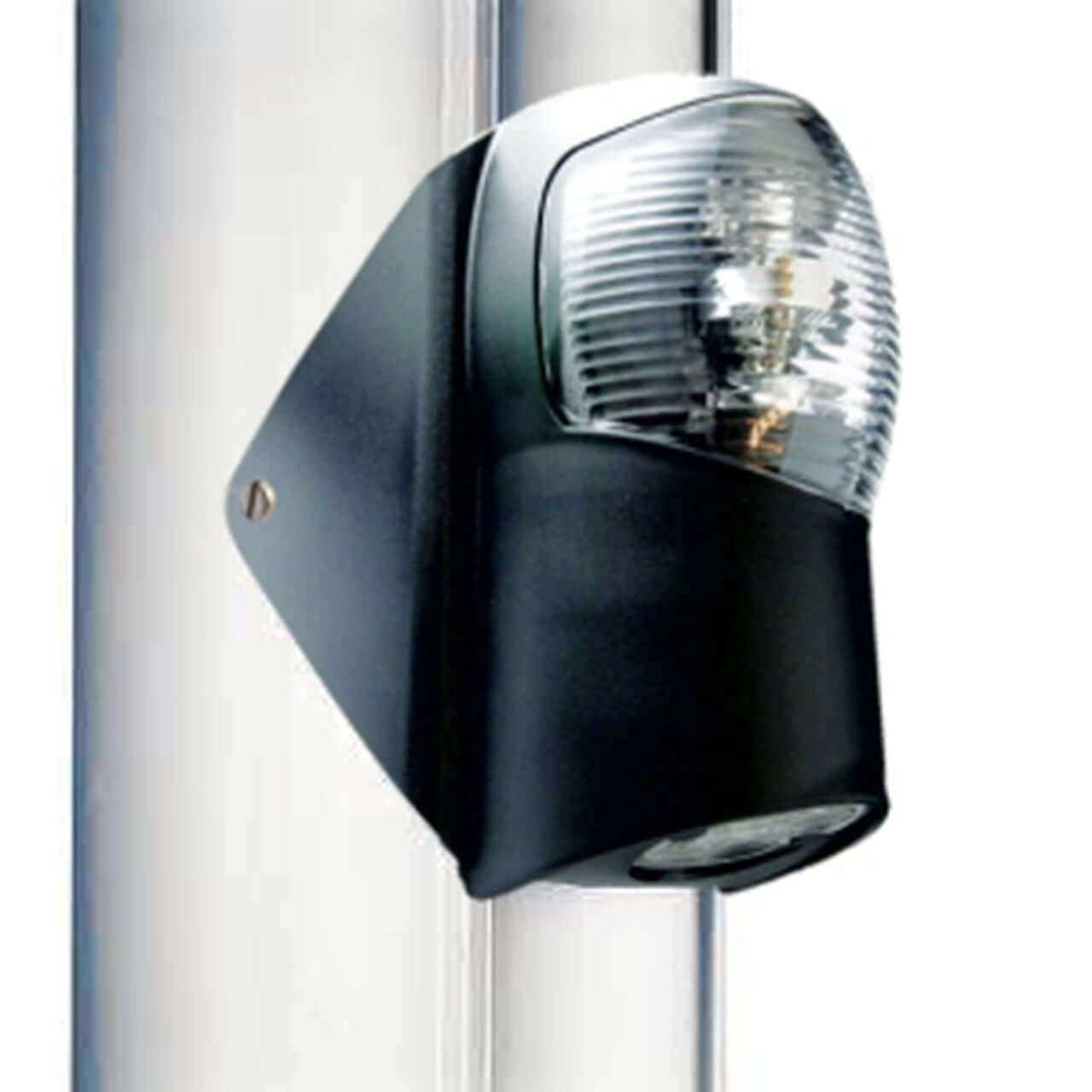

This lamp is designed to be mast-mounted to a wide variety of mast profiles using the flexible mounting “wings” which envelop the mast. Installs simply with two screws or rivets. This is a 3-wire lamp, with a common ground and 2 power wires for individual switching of the masthead (steaming light), and the deck light. Includes approx. 11″ of tinned marine copper cable for connection to your circuit.
Specifications
- 10-33VDC input
- 0.40 Amps at 12VDC

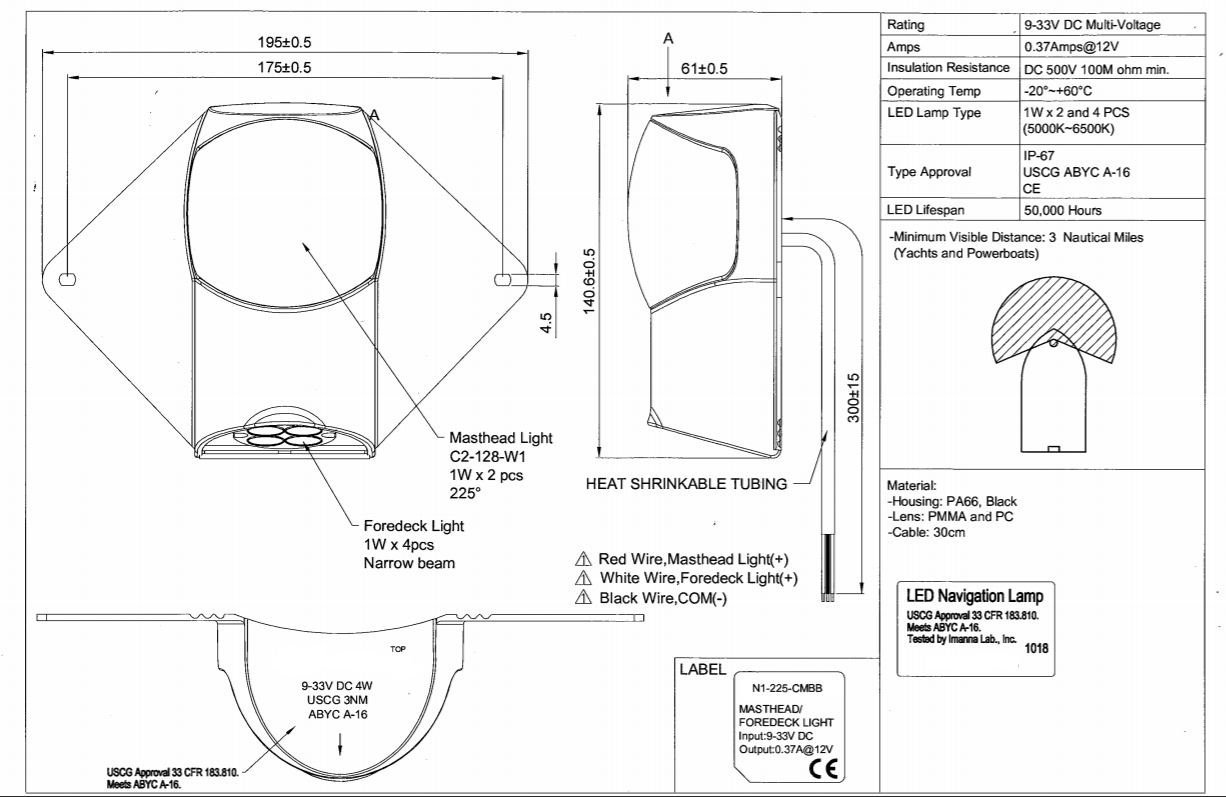

- 5.6″ High x 3″ Wide (7.7″ incl. wings) x 2.4″ Deep
- 6000° White LED light
- USCG/COLREG/CE ABYC A-16 Certified
- EN and CE tested and certified against RF interference
- IP67 Ingress Protection (fully waterproof)
- For sailing vessels up to 20M (65 ft)
- Fits a wide variety of mast profiles
- The bright 4W LED deck light is equivalent to 35W of incandescent light
Technical Specifications
| Voltage | 9-33VDC |
|---|---|
| Power | 2 Watts |
| Replaces | 35W of incandescent light |
| Water resistance | IP67 |
| Dimensions | 3-7/16" (H) x 3-1/16" (W) x 2" (D) |
| Visibility | 3NM |
| Housing color | Black or White |
| Output color | White |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Function and sector: match the required anchor, steaming, stern, port/starboard, bi-color, or tri-color function.
- Required performance: confirm the certification and visibility distance required for your vessel; brightness alone does not establish compliance.
- Physical fit: compare the mounting footprint, fastener pattern, lens orientation, and available clearance.
- Electrical fit: verify DC voltage, wiring, polarity, switching, and any photocell or multi-mode behavior.
Product specifications and details
LED White Housing - You won't be disappointed with this light. Don't let its low price fool you. It is by far our most popular navigation light fixture, and this 3NM LED Combination Masthead/Deck Light is certified to meet USCG/COLREG/CE & ABYC A16 requirements for vessels up to 20M. This lamp combines the mid-mast mounted masthead 3NM LED steaming light and a powerful LED fore-deck light in one attractive and robust housing.
It has all the features that you have come to expect from our Navigation Fixtures, including a true constant-current topology (10-33VDC input), IP67 waterproof sealed housing, marinized construction, and a super bright 4W LED deck light. The light uses our 225° 2W sealed LED steaming light module, coupled with a high-output 4W LED deck light in a robust and UV-stabilized black Nylon66 housing.
This lamp is designed to be mast-mounted to a wide variety of mast profiles using the flexible mounting “wings” which envelop the mast. Installs simply with two screws or rivets. This is a 3-wire lamp, with a common ground and 2 power wires for individual switching of the masthead (steaming light), and the deck light. Includes approx. 11″ of tinned marine copper cable for connection to your circuit.
Specifications
- 10-33VDC input
- 0.40 Amps at 12VDC
- 5.6″ High x 3″ Wide (7.7″ incl. wings) x 2.4″ Deep
- 6000° White LED light
- USCG/COLREG/CE ABYC A-16 Certified
- EN and CE tested and certified against RF interference
- IP67 Ingress Protection (fully waterproof)
- For sailing vessels up to 20M (65 ft)
- Fits a wide variety of mast profiles
- The bright 4W LED deck light is equivalent to 35W of incandescent light
