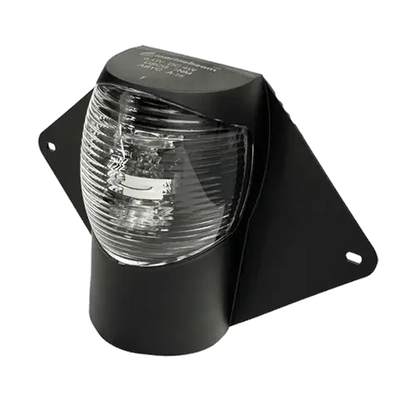

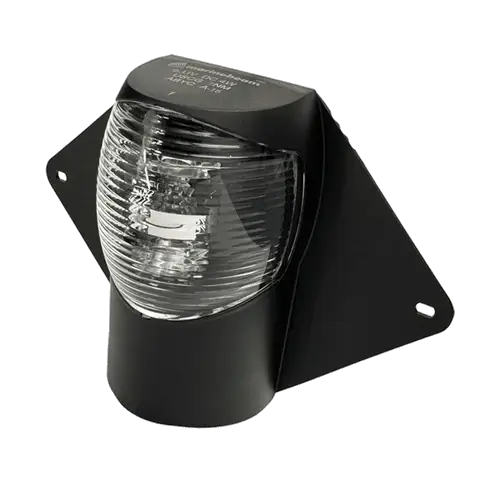

LED Deck Light Steaming Light Combo Masthead Fixture - Black Housing

Black Housing LED - You won't be disappointed with this light. Don't let its low price fool you.  It is by far our most popular navigation light fixture, and this 3NM LED Combination Masthead/Deck Light is certified to meet USCG/COLREG/CE & ABYC A16 requirements for vessels up to 20M. This lamp combines the mid-mast mounted masthead 3NM LED steaming light and a powerful LED fore-deck light in one attractive and robust housing.

It has all the features that you have come to expect from our Navigation Fixtures, including a true constant-current topology (10-33VDC input), IP67 waterproof sealed housing, marinized construction, and a super bright 4W LED deck light. The light uses our 225° 2W sealed LED steaming light module, coupled with a high-output 4W LED deck light in a robust and UV-stabilized black Nylon66 housing.

This lamp is designed to be mast-mounted to a wide variety of mast profiles using the flexible mounting “wings” which envelop the mast. Installs simply with two screws or rivets. This is a 3-wire lamp, with a common ground and 2 power wires for individual switching of the masthead (steaming light), and the deck light. Includes approx. 11″ of tinned marine copper cable for connection to your circuit.

Specifications

• 10-33VDC input
• 0.40 Amps at 12VDC
• 5.6″ High x 3″ Wide (7.7″ incl. wings) x 2.4″ Deep
• 6000° White LED light
• USCG/COLREG/CE ABYC A-16 Certified
• EN and CE tested and certified against RF interference
• IP67 Ingress Protection (fully waterproof)
• For sailing vessels up to 20M (65 ft)
• Fits a wide variety of mast profiles
• The bright 4W LED deck light is equivalent to 35W of incandescent light
