LED 18W Spreader Deck Light Fixture
LED 18W Spreader Deck Light Fixture
SKU:SL-18-06
Purpose-built marine LED lighting. Confirm voltage, mounting or cutout dimensions, light color, and switching or dimming requirements below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

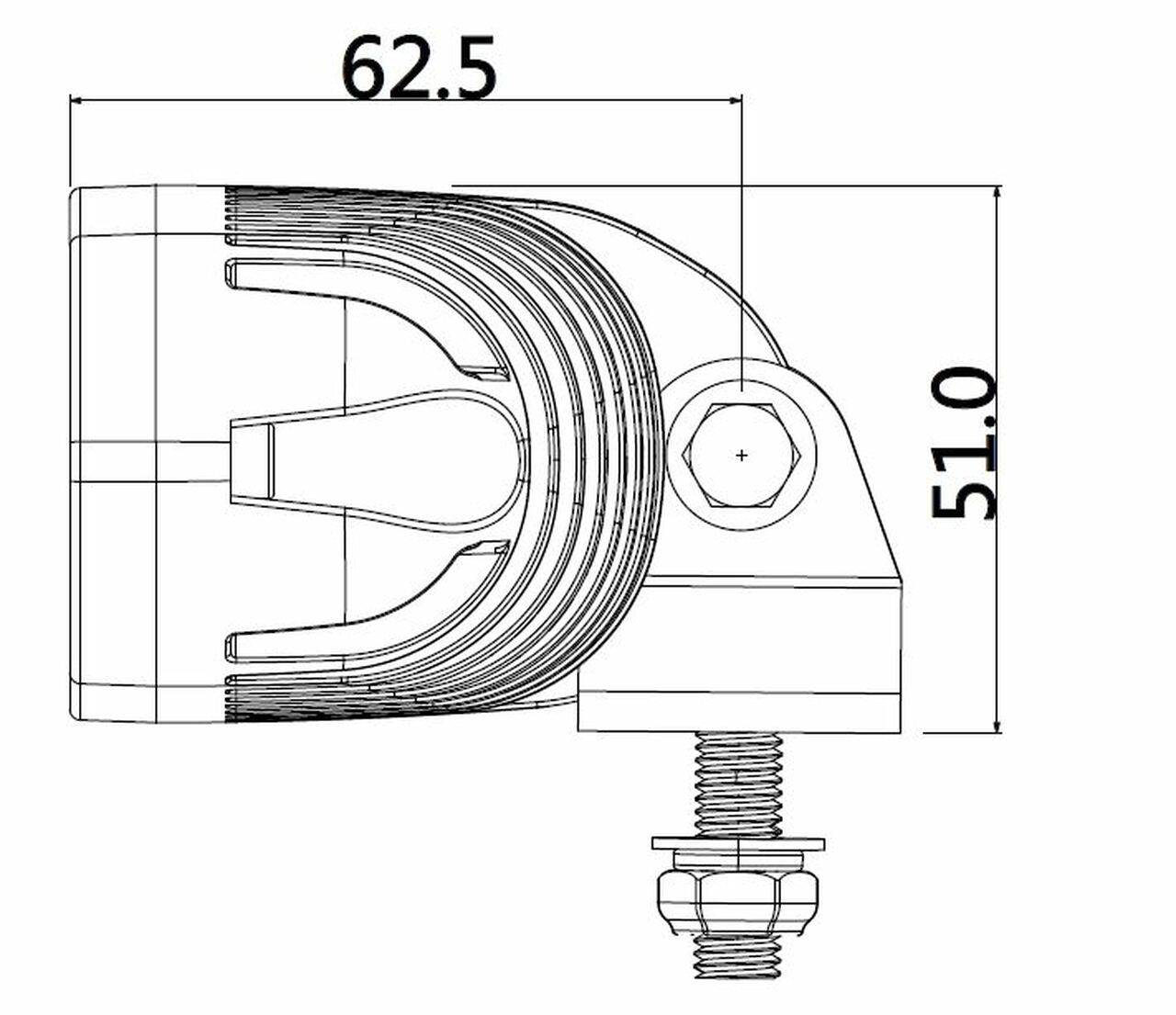

The brightest, most compact marine-grade spreader light available. This stylish, waterproof marine LED Light outperforms all other lamps of this type using 6 of the brightest, most efficient 3 watt LEDs. At only 6-1/4” x 1-3/4” x 3-3/8”, is fits unobtrusively on any boat yet delivers 1100 true lumens using only 18 watts (1.2 amps).
The low profile and full articulation makes it perfect for a spreader light, deck light or general security light. The housing is tough powder-coated, die-cast aluminum alloy which acts a heat sink and all mounting hardware is marine-grade stainless. The sealed wiring (suitable for 12v or 24v applications) is fully-tinned for long-life in the marine environment.
Specifications
- Output 1100 Lumens
- Voltage 10VDC – 32VDC Constant Current Chipset
- Power Consumption 18 watts (1.2A @ 12VDC)
- Beam Angle 60 degree
- Color 6500 degrees (cool white)
- Water Resistance IP67 (waterproof)
- Mounting 8 mm bolt and SS bracket (supplied)
- Electrical Connection 14” tinned copper pig-tail
NOTE: This lamp is polarity sensitive when installing - Blue (+) and Beige (-)
2 Year Warranty
Technical Specifications
| Voltage | 12 V / 24 V DC (multi-volt) |
|---|---|
| Power | 18 W |
| Light output | 1100 lumens |
| Color | cool white |
| Water resistance | WATERPROOF |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
