Marine Wind Generator Mounting Pole Hardware Kit

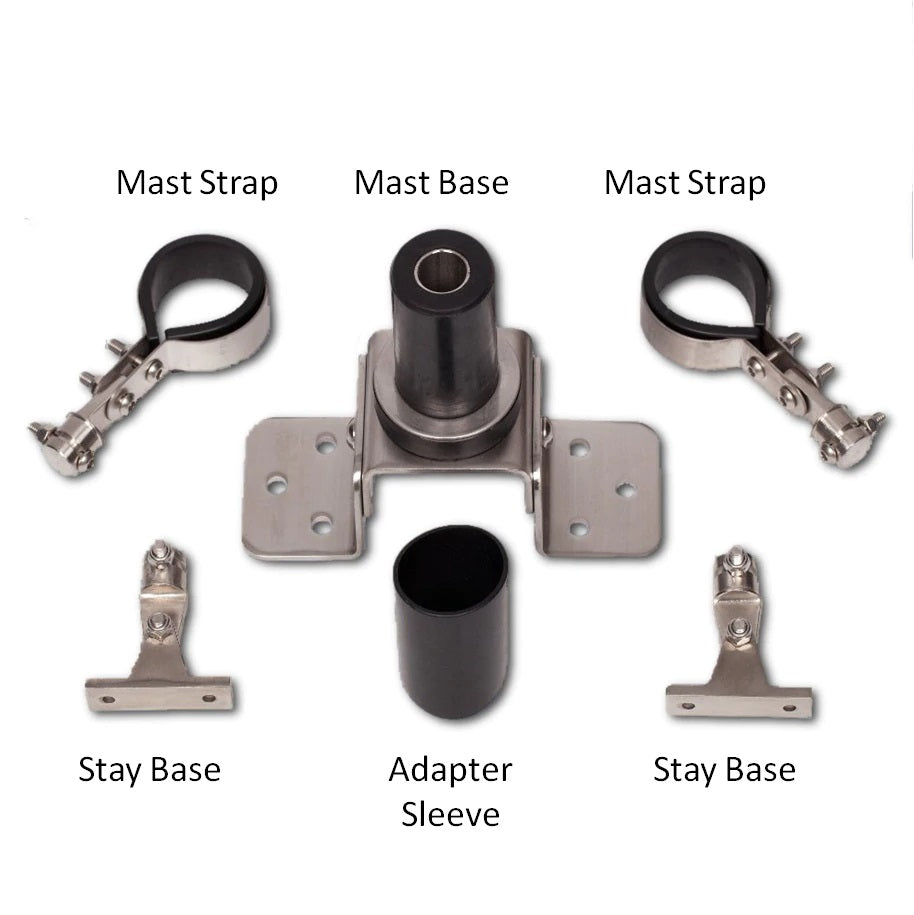

This MarineKinetix wind generator pole mount kit includes the 316 Stainless Steel hardware you need to pole-mount a small wind turbine to your boat using your own mast and two 7/8" tube stays.
This kit includes all of the hardware, minus the tubing and the screws or bolts you will use to fasten the mounts to your specific deck.

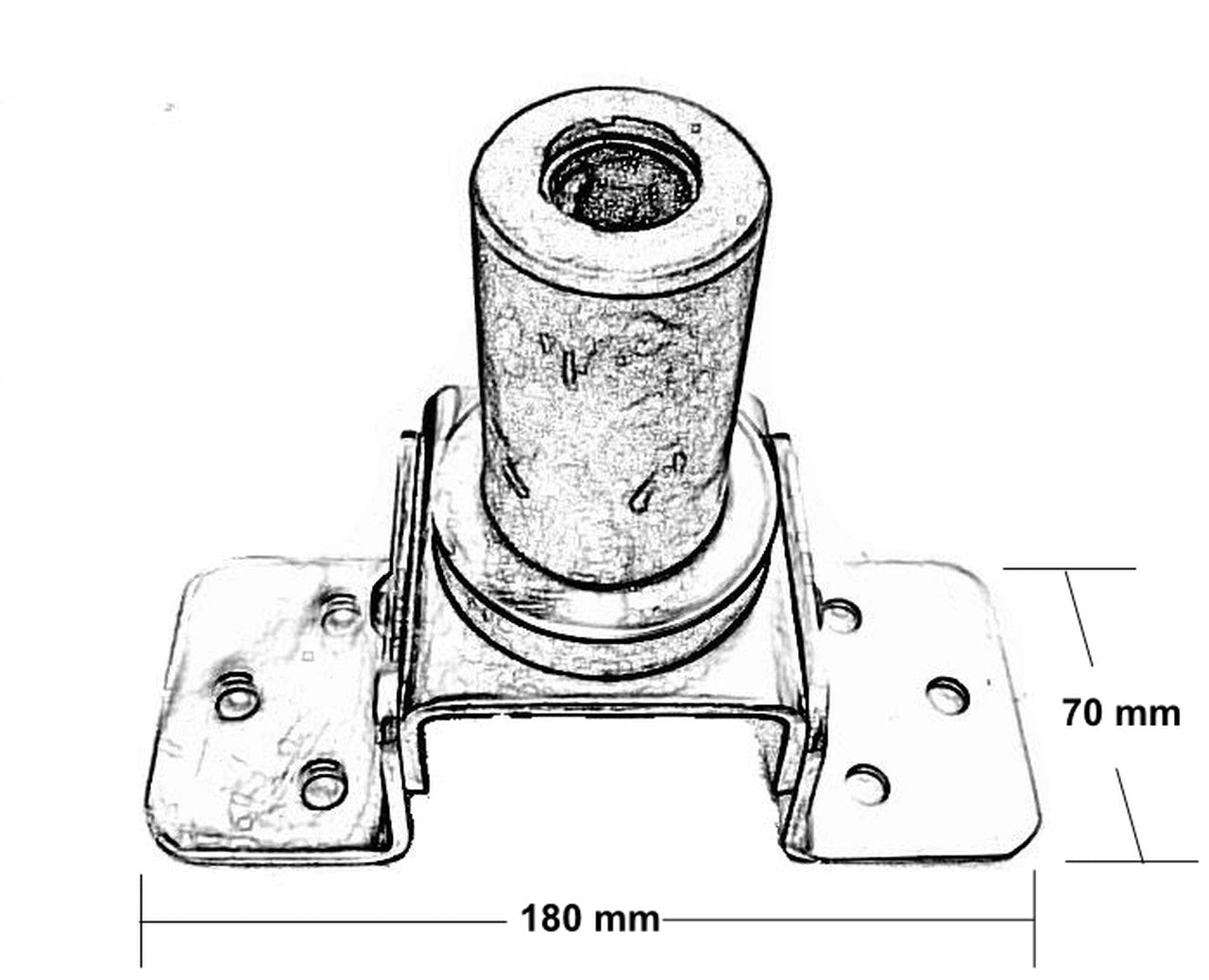

It features a hinged rubber isolator anti-vibration mount, which can pivot down for easy generator maintenance and access. This design also allows it to easily mount to sloped transom surfaces or to sugar scoop sterns.
Rather than using cheap zinc bimini top and plumbing hardware like other more expensive kits, this Marine Kinetix mount has CNC machined 316 stainless steel purpose-built fittings, which should last a lifetime. The Mast saddles are also rubber-isolated, heavy-duty, and designed specifically for this application.
- Purpose built and extra stout hardware, not cheap zinc bimini top parts and plumbing fittings
- 316 SS vs typical 304 SS
- Rubber Isolated base and saddle straps - reduces vibration, noise and corrosion
- Wiring thru-hole in the base for running wires without drilling
NOTE: You must supply the 1.9" OD Mast (1.5" schedule 40 stainless steel pipe or 48-50mm tubing) and two 7/8" (0.049" Wall) SS tubes for the stays. Aluminum pipe/tubing can also be used. We recommend a 9' to 12' tall mast. The pole should be high enough to avoid contact with anyone or anything on board - ever.

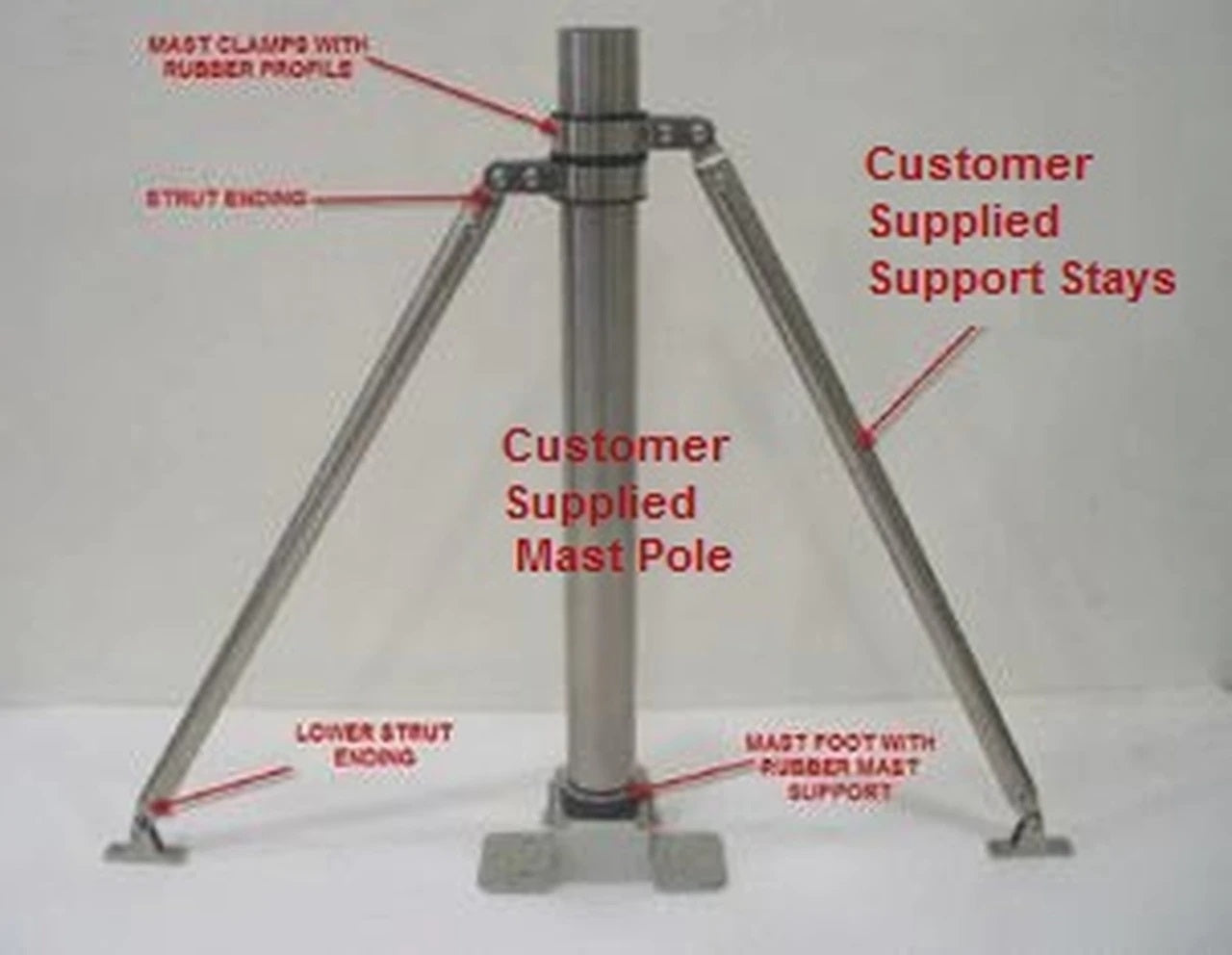

To mount your wind generator using this system, you typically mount the base bracket on a corner of the stern or on the transom, with the stays 90° apart. The stay saddle strap is mounted about 8" lower than the lowest point of the arc of the blades, with the stays then landing on the deck at a 30°- 60° angle to the Mast. This provides a super strong and stable mount.
