MarineBeam
LED Port / Starboard Navigation Fixtures
LED Port / Starboard Navigation Fixtures
SKU:N1-112
Marine LED navigation lighting. Confirm the light function, visibility sector, system voltage, and mounting geometry in the specifications below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers
Cruising Solutions takes pride in offering Marinebeam LED navigation lights. Marinebeam LED lights contain their integrated internal Constant-Current chipset allowing operation at voltages from 9-33VDC. This means they are great for both 12VDC and 24VDC applications while providing protection from over-voltage conditions, transient surges. All while providing consistent output and safety regardless of very low battery levels.
Marinebeam Navigation lamps do not emit RF harmful interference
Marinebeam Navigation lights are EMC certified to EN55022, EN61547, and EN60945, so they will not interfere with radios, sensitive electronics, or GPS signals.

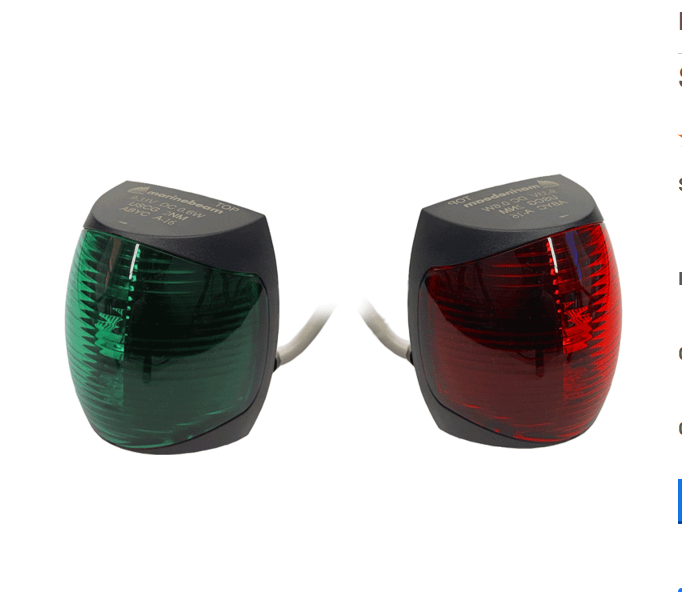

Our Marinebeam LED Sidelights are generally used in pairs, but they are sold separately.

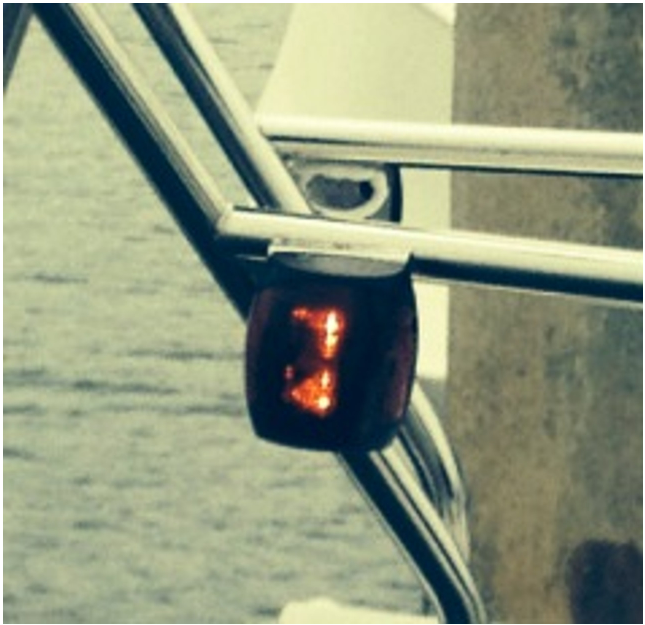

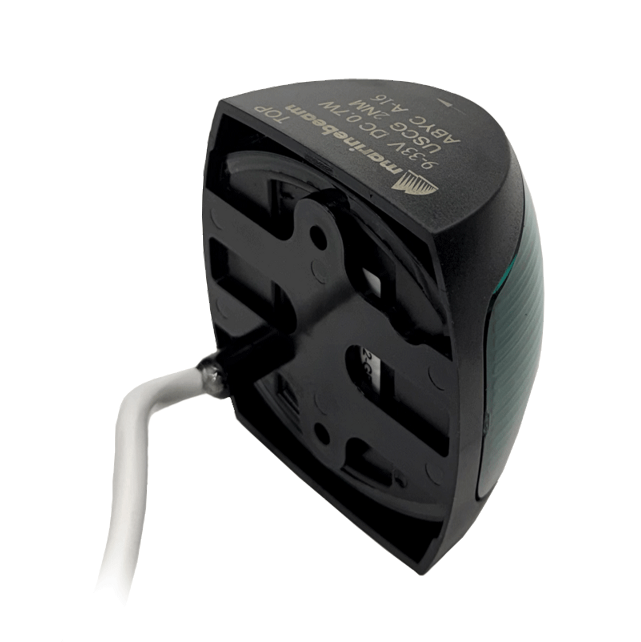

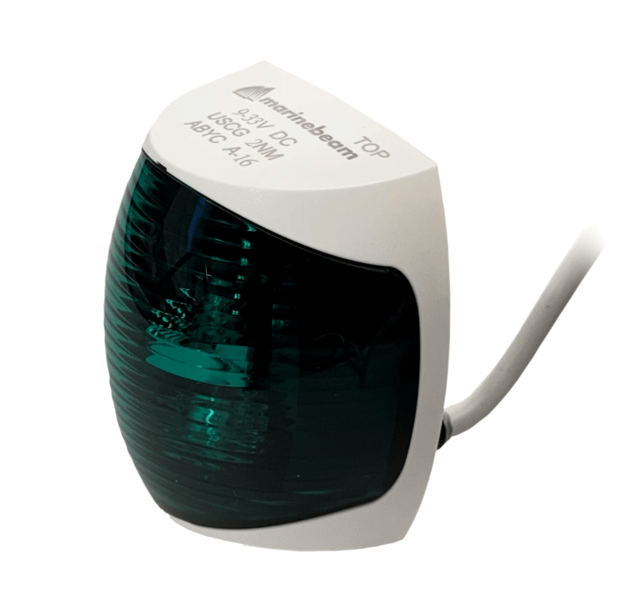

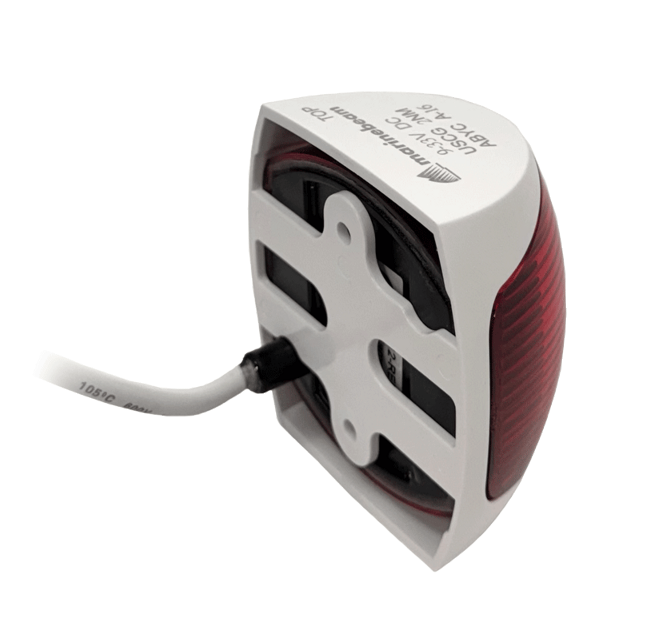

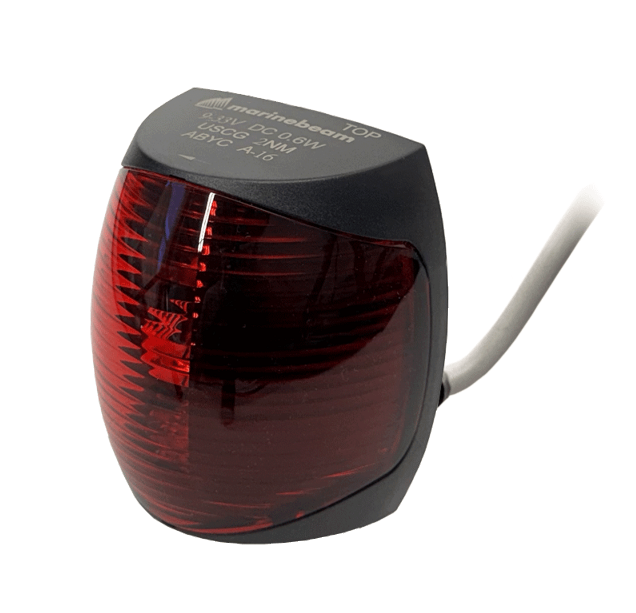

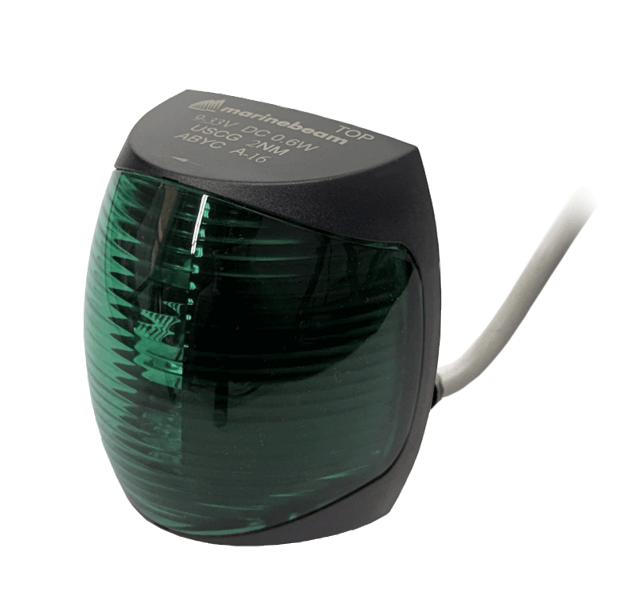

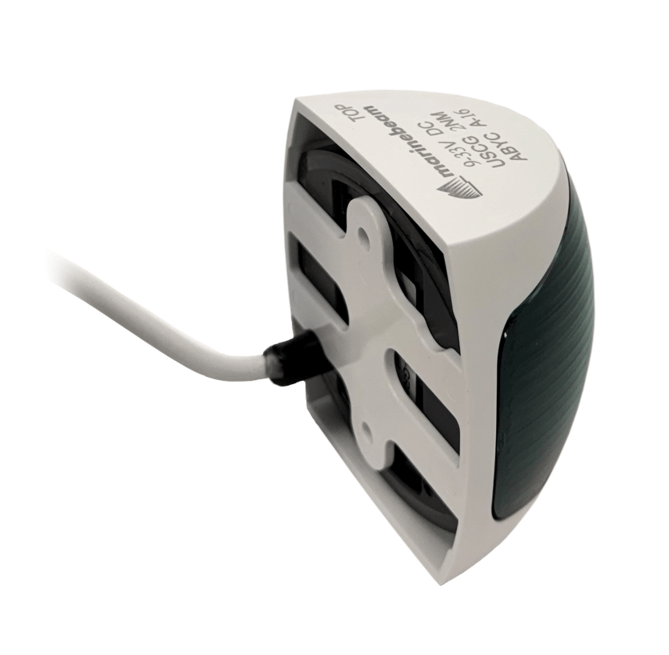

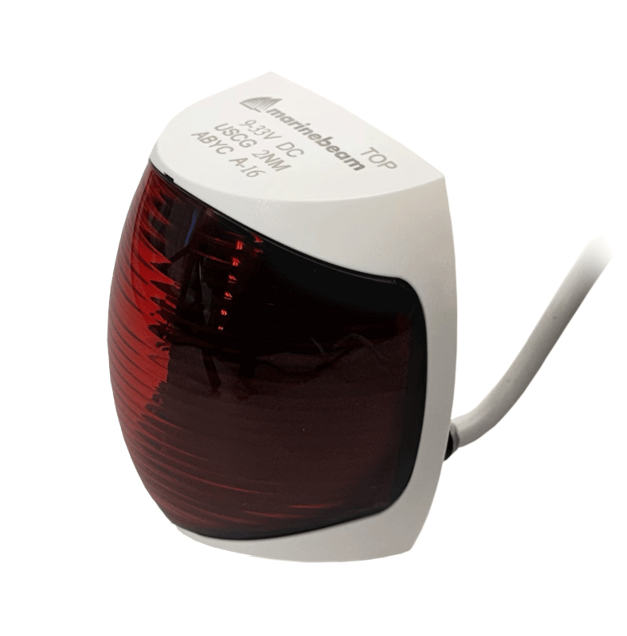

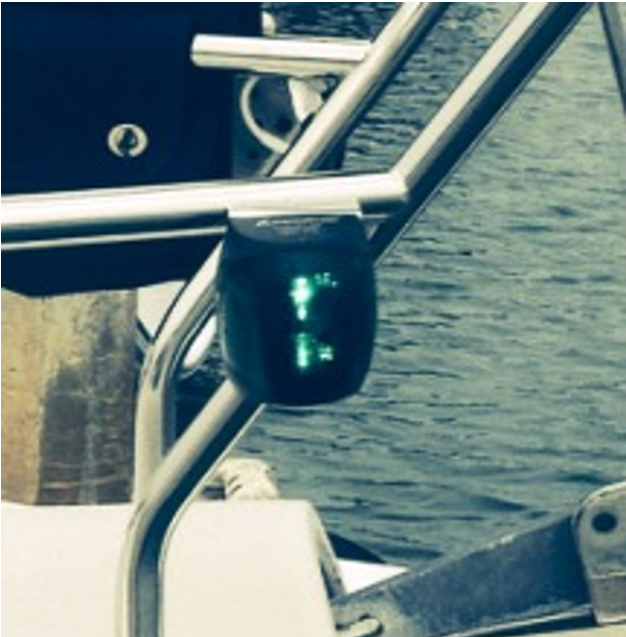

Our sealed-for-life navigational sidelights are available in Red or Green and feature 112.5° “sector-of-angle” suitable for mounting on vertical surfaces in longitudinal plane with the vessel. The UV resistant coloured lens matched to coloured LEDs delivers superior visibility and safety.

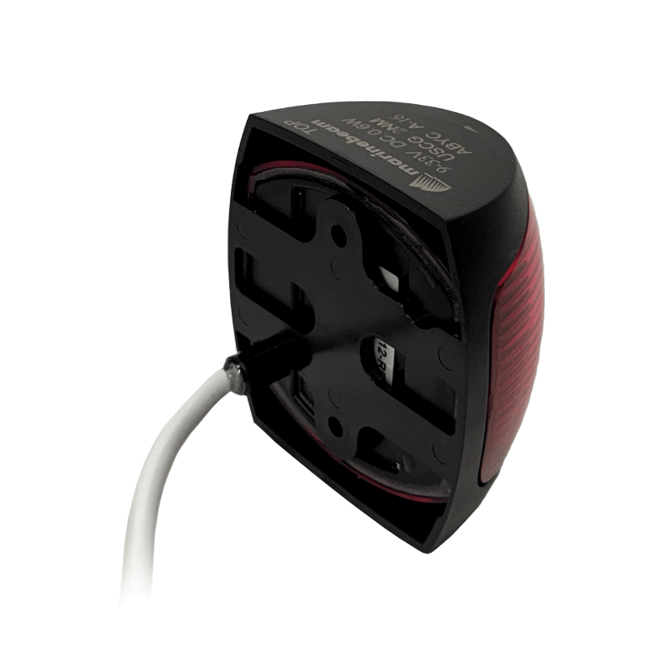

Includes 2 stainless steel mounting screws and 8 feet of “tinned” 2-wire cable for below-deck connection.
USCG/ABYC A-16 Certified for vessels up to 65 feet (20meters). 9-33 Volts DC Constant Current
Specifications
- Voltage: 9-33VDC Constant Current
- Power: 2 Watts
- Visibility: 2NM
- Sector Angle: 112°
- Housing Color: Black or White
- Output Color: Red (Port) or Green (Starboard)
- Ingress Protection: IP67 (fully sealed)
- Approvals: USCG 33CFR183.810, ABYC A-16, EN55022, EN61547 & EN60945
Technical Specifications
| Voltage | 9-33VDC |
|---|---|
| Power | 2 Watts |
| Water resistance | IP67 |
| Dimensions | 3-7/16" Tall x 3-1/16" Wide x 2" Deep |
| Visibility | 2NM |
| Housing color | Black or White |
| Output color | Red(Port) or Green(Starboard) |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Function and sector: match the required anchor, steaming, stern, port/starboard, bi-color, or tri-color function.
- Required performance: confirm the certification and visibility distance required for your vessel; brightness alone does not establish compliance.
- Physical fit: compare the mounting footprint, fastener pattern, lens orientation, and available clearance.
- Electrical fit: verify DC voltage, wiring, polarity, switching, and any photocell or multi-mode behavior.
Product specifications and details
Cruising Solutions takes pride in offering Marinebeam LED navigation lights. Marinebeam LED lights contain their integrated internal Constant-Current chipset allowing operation at voltages from 9-33VDC. This means they are great for both 12VDC and 24VDC applications while providing protection from over-voltage conditions, transient surges. All while providing consistent output and safety regardless of very low battery levels.
Marinebeam Navigation lamps do not emit RF harmful interference
Marinebeam Navigation lights are EMC certified to EN55022, EN61547, and EN60945, so they will not interfere with radios, sensitive electronics, or GPS signals.
Our Marinebeam LED Sidelights are generally used in pairs, but they are sold separately.
Our sealed-for-life navigational sidelights are available in Red or Green and feature 112.5° “sector-of-angle” suitable for mounting on vertical surfaces in longitudinal plane with the vessel. The UV resistant coloured lens matched to coloured LEDs delivers superior visibility and safety.
Includes 2 stainless steel mounting screws and 8 feet of “tinned” 2-wire cable for below-deck connection.
USCG/ABYC A-16 Certified for vessels up to 65 feet (20meters). 9-33 Volts DC Constant Current
