Recessed LED Ceiling Downlight | 2.5W - 225 Lumens
Recessed LED Ceiling Downlight | 2.5W - 225 Lumens
SKU:FX-LL-2.5W-WH
Purpose-built marine LED lighting. Confirm voltage, mounting or cutout dimensions, light color, and switching or dimming requirements below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers
|
LEDs: |

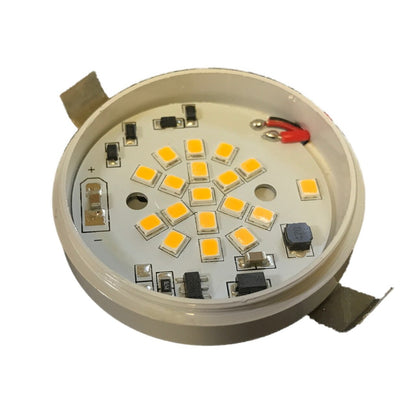

(18) 2835 emitters |
|||
|
Input Voltage: |
10 - 30VDC (Constant Current IC) |
|||
|
Wattage: |
2.5 Watts |
|||
|
Amperage: |
0.2A at 12VDC |
|||
|
Beam Angle: |
120° |
|||
|
Color Temperature: |
2,900°K (Warm White) |
|||
|
Output: |
225 Lumens - 20W Halogen equivalent |
|||
|
Mounting: |
ø 2"Cutout - Clip Installation |
|||
|
Dimensions: |
ø 2-3/4"Faceplate x 1/2" depth |
|||
|
Dimmable: |
Yes - with PWM Dimmer |
|||
|
Lifetime |
30,000 hours |
|||

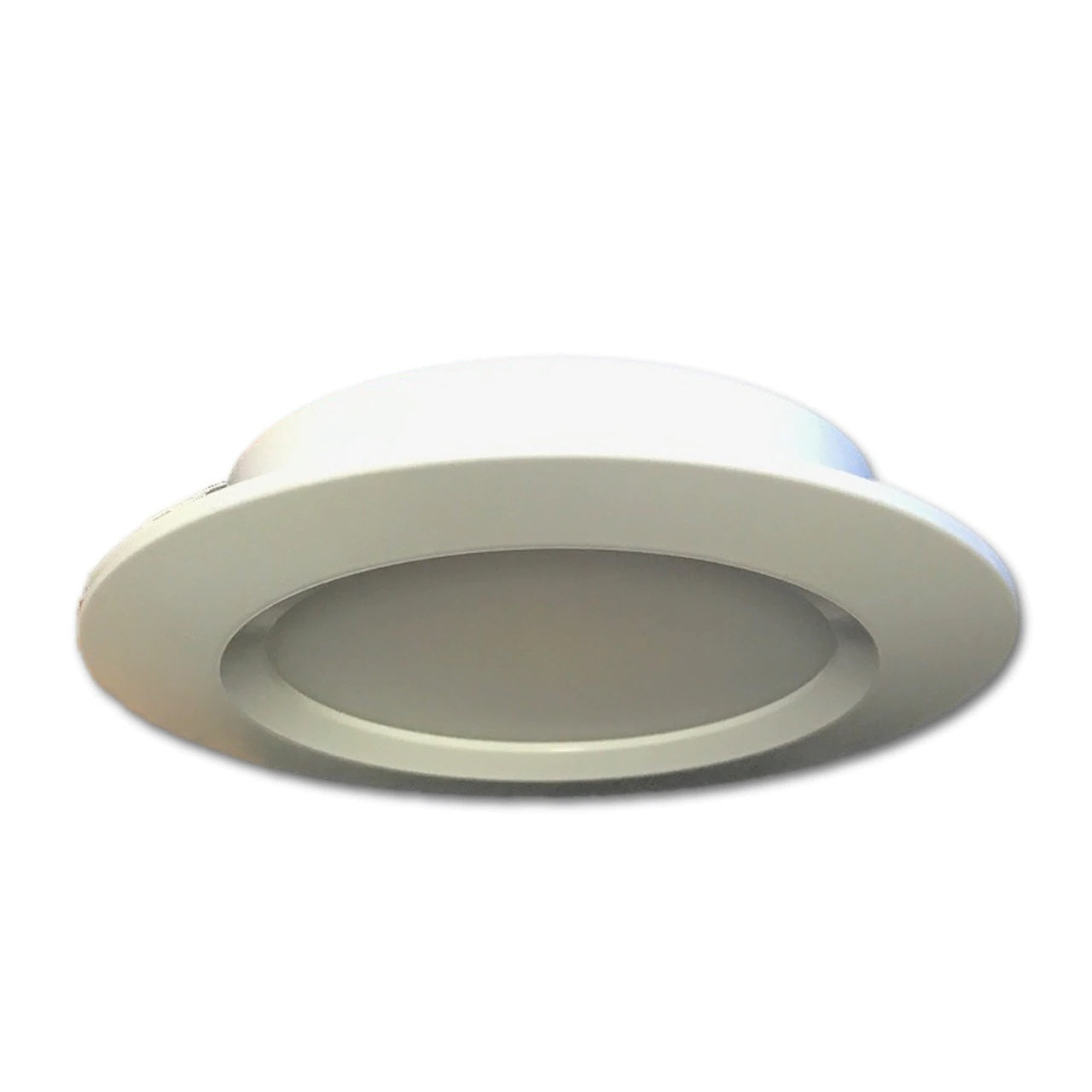

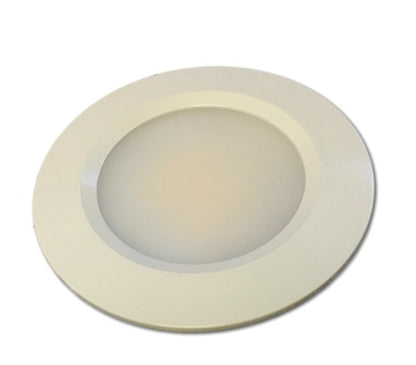

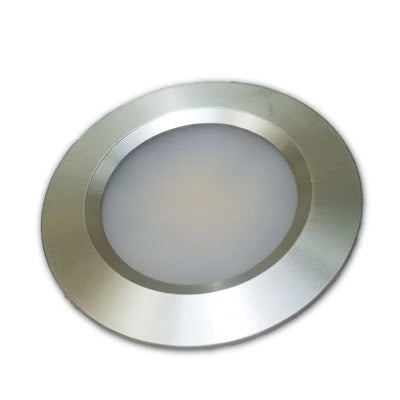

Perfect for replacing dim halogen lamps in boats or RVs. The aluminum body with powder white or anodized aluminum bezel makes for a long-lasting and versatile fixture with twice the output of a standard 12V 10W halogen bulb, and an 85% energy savings.
The warm-white light output passes through a diffusing glass lens, which eliminates the dazzle or "dots" found with conventional LED lighting. You really cannot distinguish that this is an LED light, and it will look great in your salon or cabin with no corrosion-prone components in this fixture.
Our 10-30VDC constant-current driver is integrated into this simple yet elegant LED ceiling downlight - allowing it to operate at 12V (AC or DC) or 24VDC. The low-profile design allows for installation even with limited ceiling panel clearance. Great for under cabinets, ceiling lighting, arch and T-top retrofits, or endless other applications.

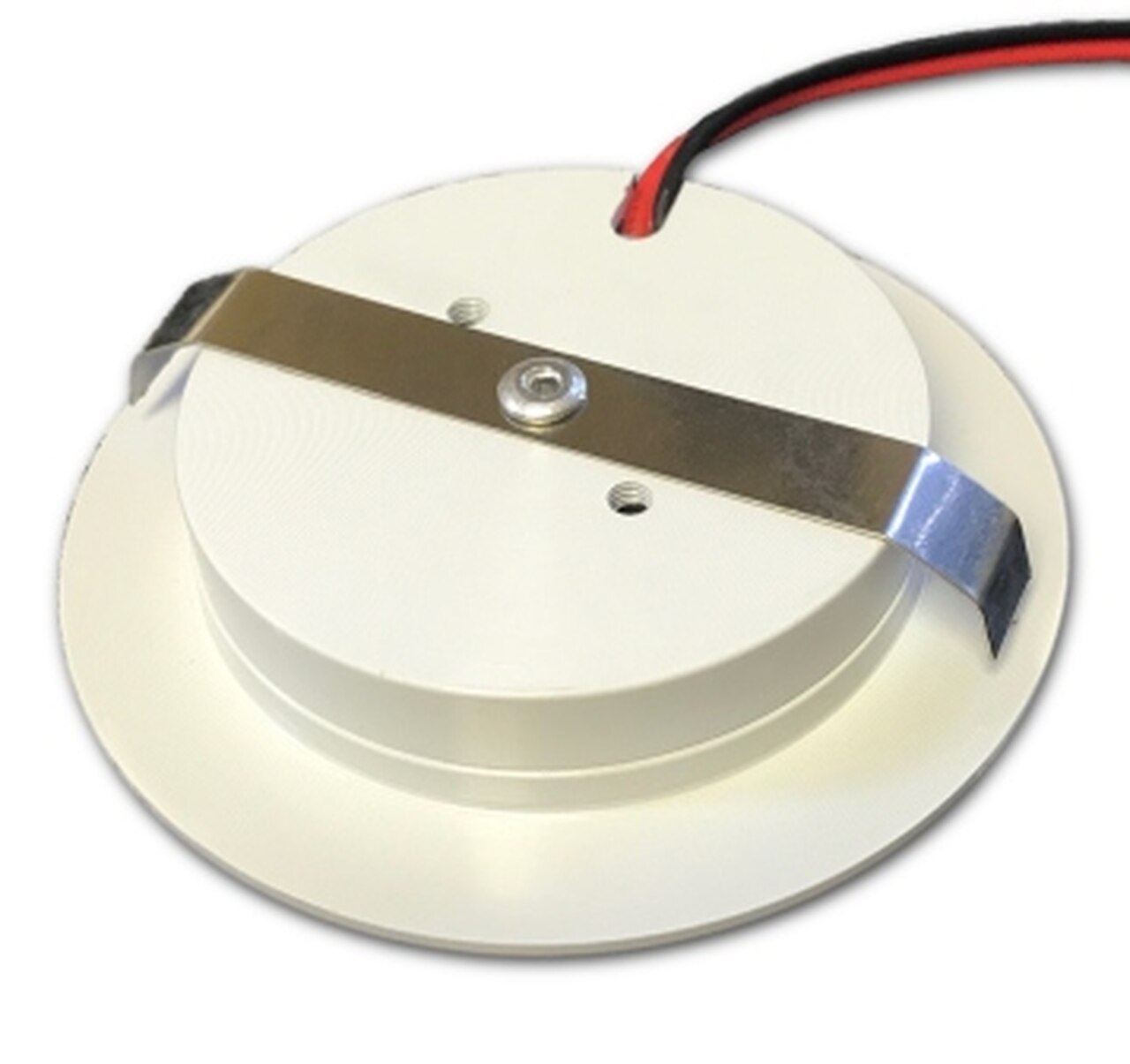

Fits into any 2" to 2-1/8" hole, with 7/16" of available panel clearance behind, so it fits flush. It is slim enough to be mounted in most all boat or RV headliner panels.
Don't let our price fool you. This is a great little lamp!
Technical Specifications
| Voltage | 12V |
|---|---|
| Power | 2.5 W |
| Light output | 225 lumens |
| Color | Warm White |
Multi-volt LED electronics are polarity-protected and built for the marine 12/24 V DC environment. Not sure this is the right base or fixture for your boat? Contact us with a photo of your old bulb or fixture and we'll confirm fit.
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Mounting: check the face diameter, cutout or fastener pattern, depth, and clearance behind the mounting surface.
- Electrical fit: verify DC voltage, wiring, polarity, and the circuit's switching arrangement.
- Light output: confirm color temperature, lumen output, beam pattern, and whether red or dual-color light is needed.
- Controls: check whether dimming, touch control, a separate switch, or an external driver is required.
Product specifications and details
|
LEDs: |
(18) 2835 emitters |
|||
|
Input Voltage: |
10 - 30VDC (Constant Current IC) |
|||
|
Wattage: |
2.5 Watts |
|||
|
Amperage: |
0.2A at 12VDC |
|||
|
Beam Angle: |
120° |
|||
|
Color Temperature: |
2,900°K (Warm White) |
|||
|
Output: |
225 Lumens - 20W Halogen equivalent |
|||
|
Mounting: |
ø 2"Cutout - Clip Installation |
|||
|
Dimensions: |
ø 2-3/4"Faceplate x 1/2" depth |
|||
|
Dimmable: |
Yes - with PWM Dimmer |
|||
|
Lifetime |
30,000 hours |
|||
Perfect for replacing dim halogen lamps in boats or RVs. The aluminum body with powder white or anodized aluminum bezel makes for a long-lasting and versatile fixture with twice the output of a standard 12V 10W halogen bulb, and an 85% energy savings.
The warm-white light output passes through a diffusing glass lens, which eliminates the dazzle or "dots" found with conventional LED lighting. You really cannot distinguish that this is an LED light, and it will look great in your salon or cabin with no corrosion-prone components in this fixture.
Our 10-30VDC constant-current driver is integrated into this simple yet elegant LED ceiling downlight - allowing it to operate at 12V (AC or DC) or 24VDC. The low-profile design allows for installation even with limited ceiling panel clearance. Great for under cabinets, ceiling lighting, arch and T-top retrofits, or endless other applications.
Fits into any 2" to 2-1/8" hole, with 7/16" of available panel clearance behind, so it fits flush. It is slim enough to be mounted in most all boat or RV headliner panels.
Don't let our price fool you. This is a great little lamp!
