Stern Navigation Fixture and Light
Stern Navigation Fixture and Light
SKU:N1-135-CLR-2
Marine LED navigation lighting. Confirm the light function, visibility sector, system voltage, and mounting geometry in the specifications below.
See fit checks and full product specificationsCouldn't load pickup availability
- Ships in 1–5 business days
- 30-day returns
- Advice from real cruisers

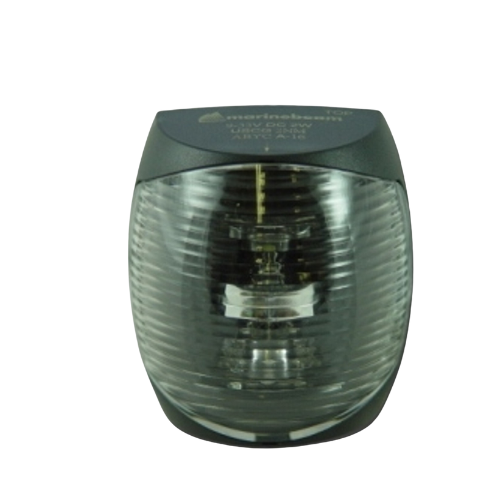

This super-bright, sealed-for-life stern light has 135° sector-of-angle for 2 mile visibility when mounted on a vertical surface perpendicular to the vessel’s keel facing aft. The UV treated lens is watertight and impact resistant for many, many years of reliable service. Includes 2 stainless steel mounting screws and 8 feet of “tinned” 2-wire cable for below-deck connection. USCG/ABYC A-16 Certified for vessels up to 65 feet (20 meters).
Coast Guard Certified Navigation Lights
Our Nav Light fixtures are permanently 100% sealed and Waterproof IP-67 and USCG/ABYC certified for power or sailboats up to 65 feet. These brilliant LEDs use only 10% of the power consumed by incandescent lights with the same colour and visibility. They all feature our Constant Current chipset which operates on voltages from 9Vdc to 33Vdc for 12 or 24 volt applications. This protects operation from power surges, voltage drop and fluctuations. They won’t fail from vibration, moisture intrusion and will probably outlast the rest of the vessel. Bow and stern running lights combined, use less than ½ amp @ 12 volts or ¼ amp @ 24 volts. They do not emit harmful RF interference EMC certification EN55022, EN61547 and EN60945) so they don’t cause interference with VHF, SSB, headsets or GPS signals.
Specifications
- Voltage: 9-33VDC Constant Current
- Power: 2 Watts
- Visibility: 2NM
- Sector Angle: 135°
- Housing Color: Black
- Output Color: White
- Ingress Protection: IP67 (fully sealed)
- Approvals: USCG 33CFR183.810, ABYC A-16, EMC EN55022, EN61547 & EN60945
- Dimensions: Tall x 3-1/16″ Wide x 2″ Deep
2 Year Warranty
Shipping & lead times
Shipping & lead times
We're a small team of boaters and we pack orders within 1–5 business days (no weekend or holiday packing). You'll get an email with tracking as soon as a label goes on your box.
Specialty items — fire extinguishers (dangerous goods) and low-stock or built-to-order gear — can take longer; the product description will say so. On a tight timeline or meeting your boat somewhere specific? Contact us and we’ll work out the fastest way to get gear to you.
International orders ship DDU: local duties, taxes, and customs fees are the buyer’s responsibility. Full details in our shipping policy.
Returns & refunds
Returns & refunds
30-day returns from the date of purchase. Items must be unused, in the original packaging with all cables and accessories, with proof of purchase.
Contact us before shipping anything back — we’ll send the return form that must accompany your return. Fire extinguisher and lithium battery items carry a $15 administrative fee on returns.
Read the full refund policy.
Ask a cruiser before you buy
Ask a cruiser before you buy
Everyone here is a current or past cruiser — we’ve docked short-handed, re-rigged at anchor, and chased 12V gremlins too. Not sure this is the right fit for your boat? Send us your question before you order and we’ll give you a straight answer.
Check fit before ordering
- Function and sector: match the required anchor, steaming, stern, port/starboard, bi-color, or tri-color function.
- Required performance: confirm the certification and visibility distance required for your vessel; brightness alone does not establish compliance.
- Physical fit: compare the mounting footprint, fastener pattern, lens orientation, and available clearance.
- Electrical fit: verify DC voltage, wiring, polarity, switching, and any photocell or multi-mode behavior.
Product specifications and details
This super-bright, sealed-for-life stern light has 135° sector-of-angle for 2 mile visibility when mounted on a vertical surface perpendicular to the vessel’s keel facing aft. The UV treated lens is watertight and impact resistant for many, many years of reliable service. Includes 2 stainless steel mounting screws and 8 feet of “tinned” 2-wire cable for below-deck connection. USCG/ABYC A-16 Certified for vessels up to 65 feet (20 meters).
Coast Guard Certified Navigation Lights
Our Nav Light fixtures are permanently 100% sealed and Waterproof IP-67 and USCG/ABYC certified for power or sailboats up to 65 feet. These brilliant LEDs use only 10% of the power consumed by incandescent lights with the same colour and visibility. They all feature our Constant Current chipset which operates on voltages from 9Vdc to 33Vdc for 12 or 24 volt applications. This protects operation from power surges, voltage drop and fluctuations. They won’t fail from vibration, moisture intrusion and will probably outlast the rest of the vessel. Bow and stern running lights combined, use less than ½ amp @ 12 volts or ¼ amp @ 24 volts. They do not emit harmful RF interference EMC certification EN55022, EN61547 and EN60945) so they don’t cause interference with VHF, SSB, headsets or GPS signals.
Specifications
- Voltage: 9-33VDC Constant Current
- Power: 2 Watts
- Visibility: 2NM
- Sector Angle: 135°
- Housing Color: Black
- Output Color: White
- Ingress Protection: IP67 (fully sealed)
- Approvals: USCG 33CFR183.810, ABYC A-16, EMC EN55022, EN61547 & EN60945
- Dimensions: Tall x 3-1/16″ Wide x 2″ Deep
2 Year Warranty
