Textile Hook Friction - Hook HK16

OPENING FRICTION RING

Textile Hook friction - HOOK HK16

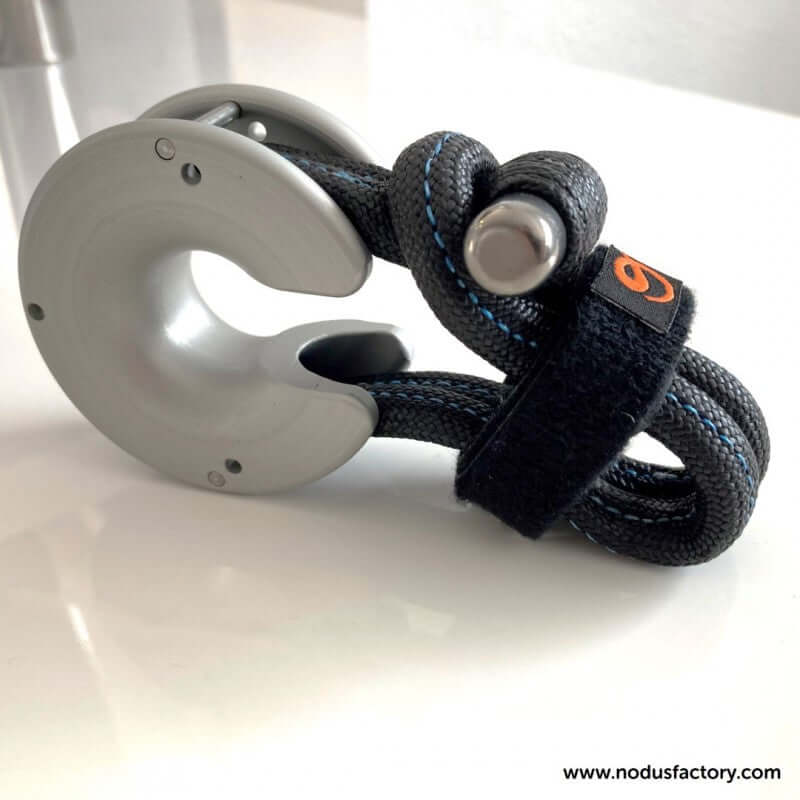

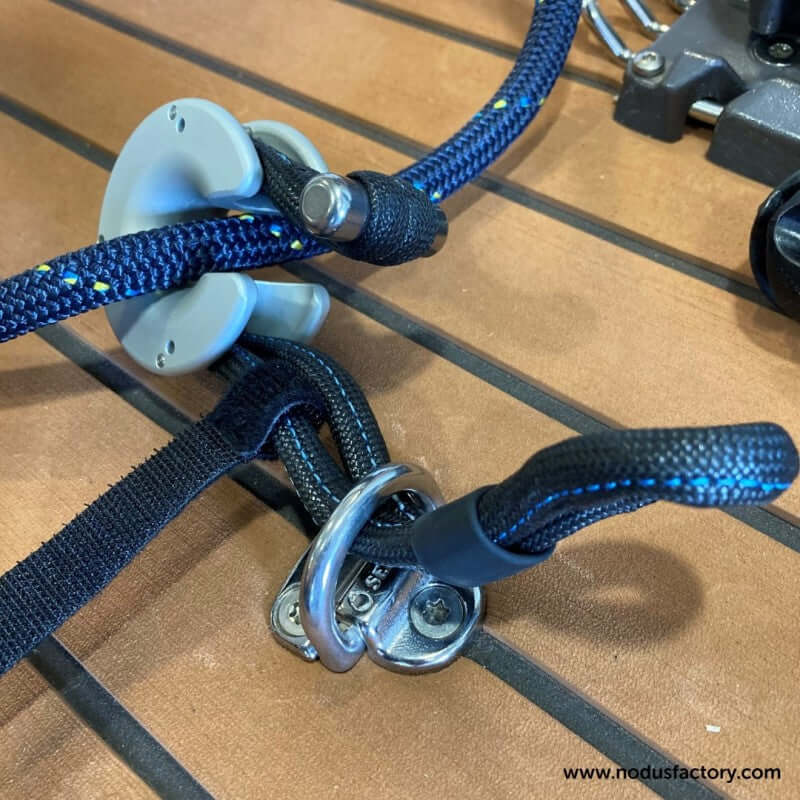

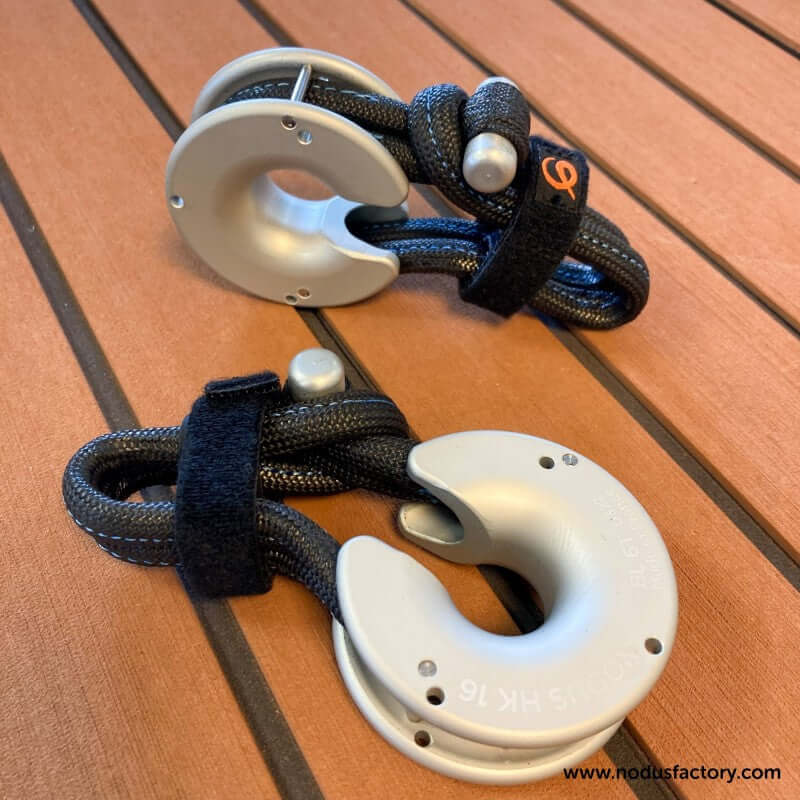

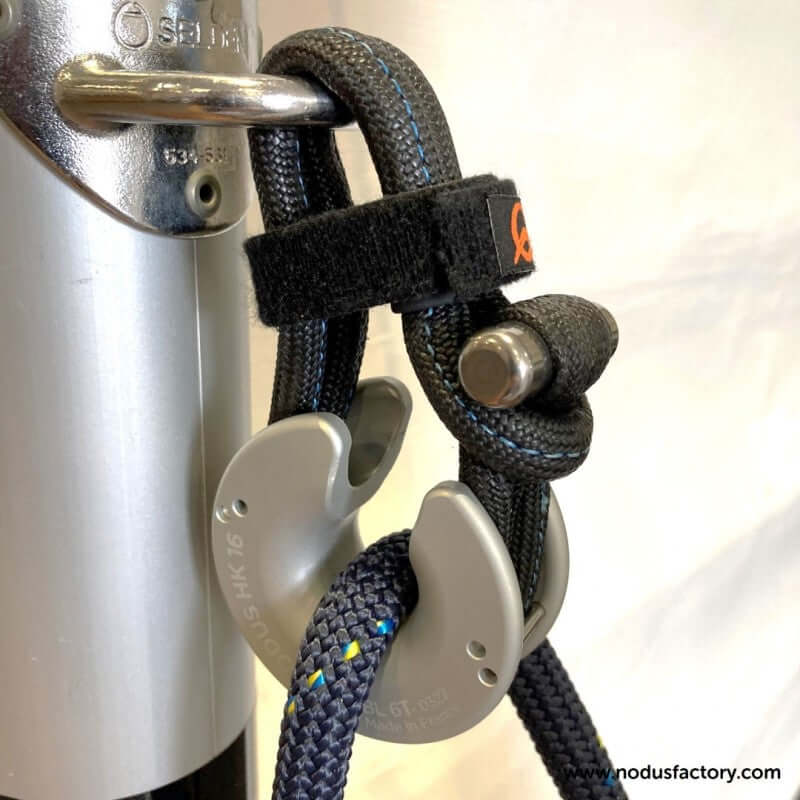

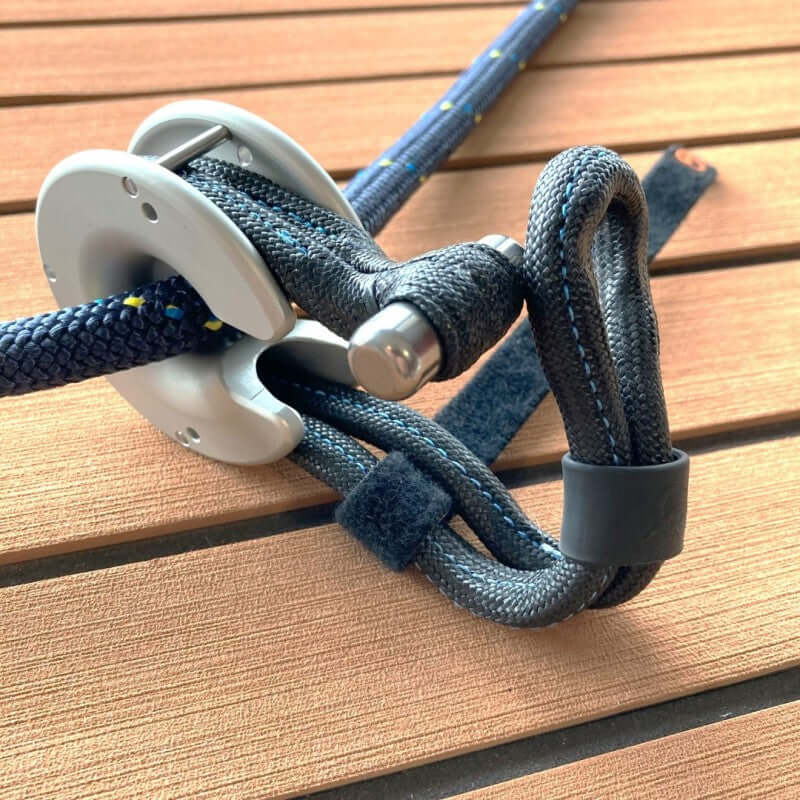

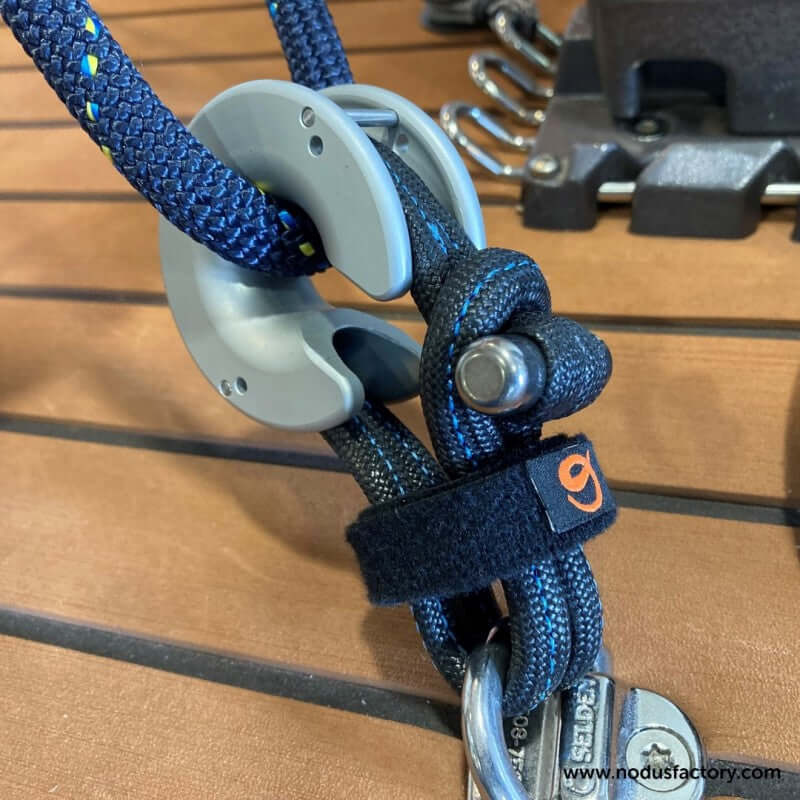

HK16®, the Textile Hook opening friction ring is the lightest and strongest removable sheet control solution!
 Can control and haul sheets under tension.
 This opening friction ring is easy to position under the rope and its textile attachment system prevents any opening under load
 This connector can be used with all types of ropes either in dynamic and static modes.

Uses

 Enables rope to be quickly passed in any situation
 Barber, in-haulers, or spare pulley
 Can be installed anywhere or on the deck
 Hoist(mainsail, vang, running backstay,…etc)



Advantages

 Opening friction ring system, mobile and versatile
 Excellent weight/resistance ratio
 Efficient, lightweight
 Reliable and maintenance free
 Removable
 Captive, thanks to our double safety system: Velcro® & Bague Block



Specifications

 Hard anodized aluminum ring -grey; internal diameter 20mm
 Shackle high load M®, core, and sheath made of 100% Nodex® R2 12fx pre-stretched, coated - Light grey/black
 T-Bone TBA12 (Dogbone)
 Twist Lock - safety lock

PRODUCT NAME	BREAKING LOAD	WEIGHT	LENGTH L	RECOMMENDED LINE 0	SAIL SIZE
Connector	Straight			Halyard/Sheet	40 nds
Aluminum	kg	gr	cm	mm	M2 ≥ 45°
HK16	6000	120	8	max 16mm	160
HK22	8500	270	Tailor-made	max 22mm	>160
HK32	12000	350	Tailor-made	max 32mm	>160
